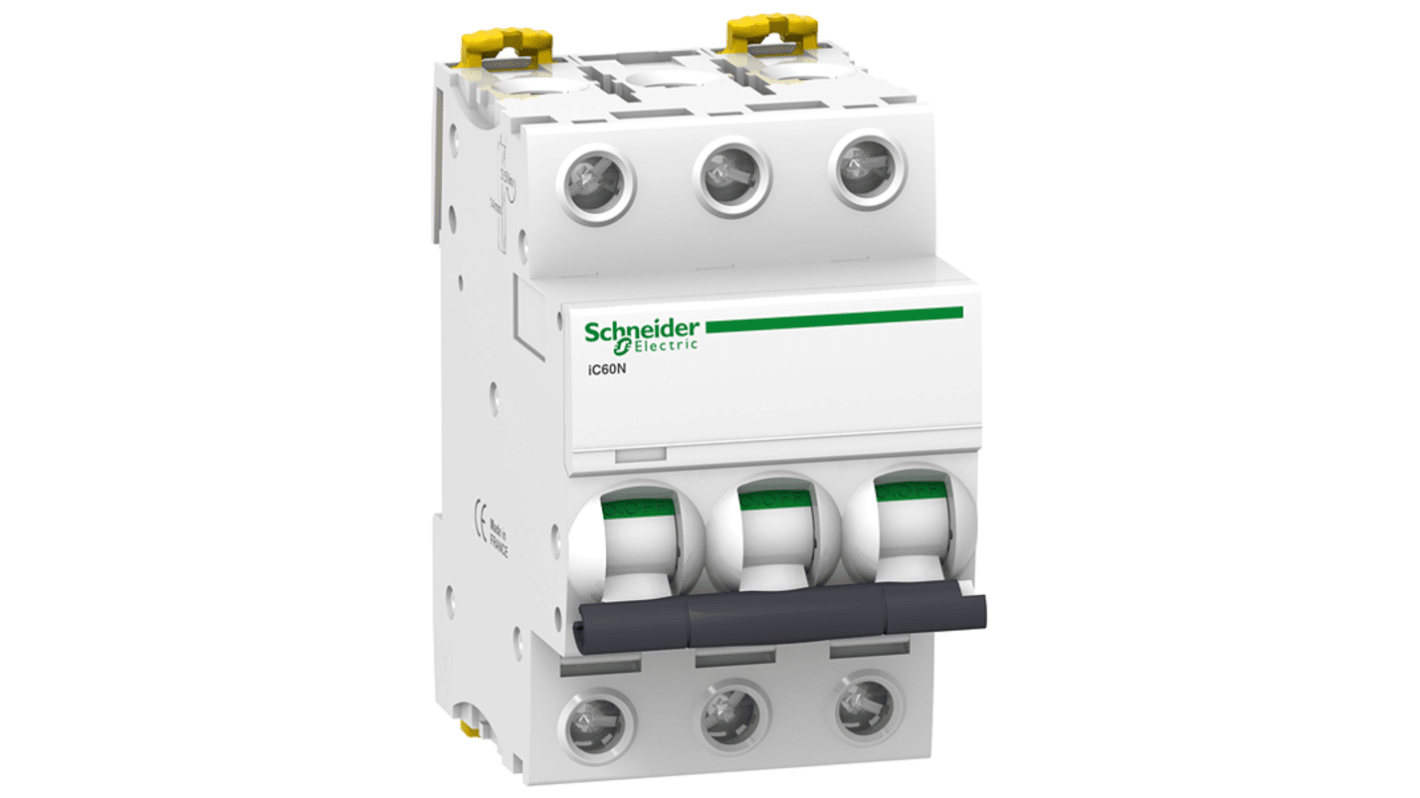

Schneider Electric Acti9 A9F7 MCB, 3P, 500mA Curve D, 500V AC, 6000 A Breaking Capacity

The Schneider Electric Acti9 iC60N MCB is a low voltage miniature circuit breaker. It is a 3P circuit breaker with 3 protected poles, 0.5A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 50kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2.

Combine short circuit and overload currents protection
Visitrip system for fast detection of faulty outgoers for shorter repair times
VisiSafe system for offering enhanced security when it comes to circuit protection
Option to add auxiliaries and remote monitoring and residual current device
