Silicon Labs ToolStick University MCU Starter Kit TOOLSTICKUNISK

查看此類別
可享批量折扣

小計（1 件）*

HK$796.10

Add to Basket
選擇或輸入數量
最後的 RS 庫存
  • 最終 1 個，準備發貨
單位
每單位
1 - 4HK$796.10
5 +HK$780.20

* 參考價格

RS庫存編號:
757-0470
製造零件編號:
TOOLSTICKUNISK
製造商:
Silicon Labs
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Silicon Labs

Classification

Starter Kit

Kit Name

ToolStick University

Technology

MCU

COO (Country of Origin):
US

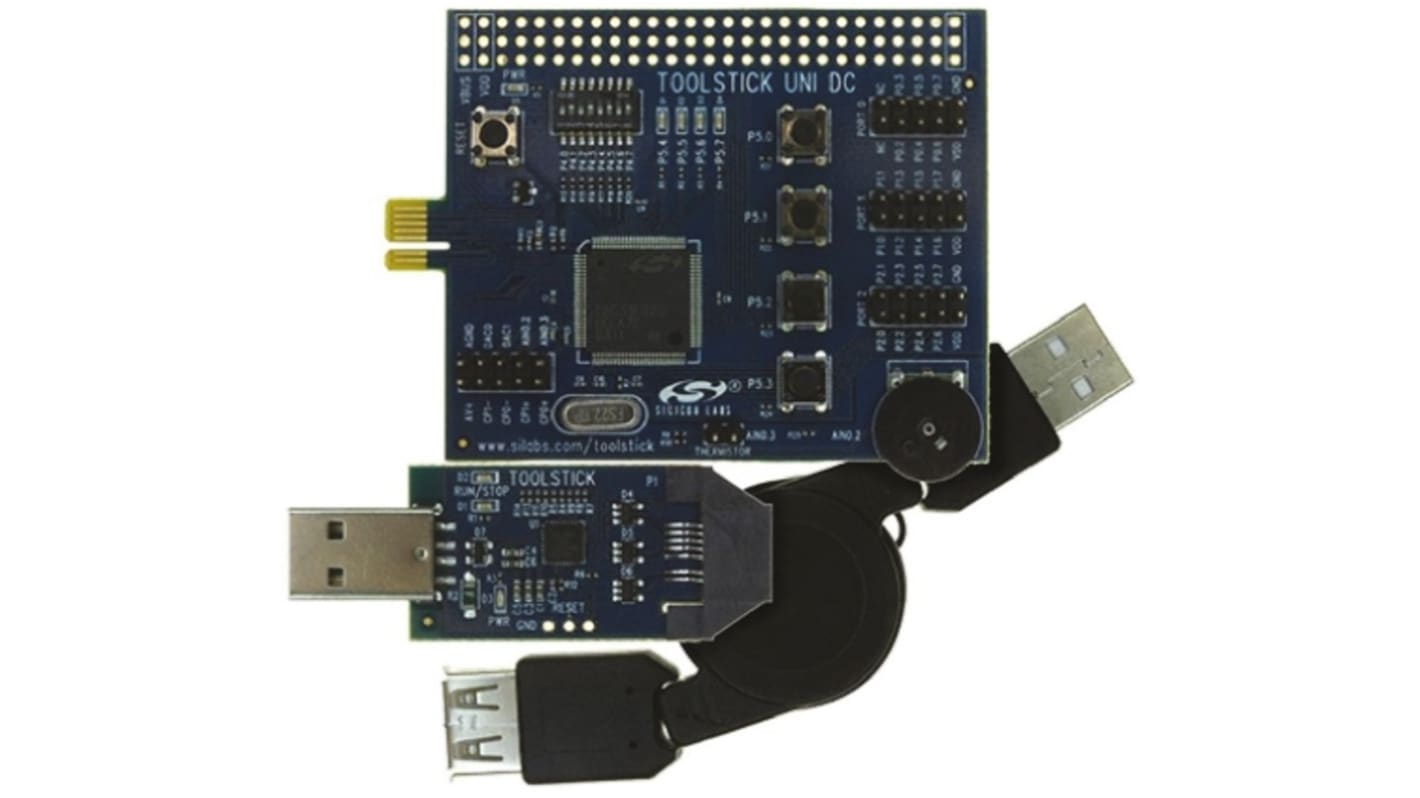

ToolStick C8051 University Starter Kit


The purpose of the ToolStick is to provide a development and demonstration platform for Silicon Laboratories C8051Fxxx microcontroller software tools, including the Integrated Development Environment (IDE). The ToolStick development platform consists of two components: the ToolStick Base Adapter and a Daughter Card. The ToolStick Base Adapter provides a USB debug interface and data communications path between a Windows PC and the target microcontroller.

C8051F020 mixed-signal 8-bit microcontroller
22.1184MHz clock crystal
4 x user LEDs
4 x user push-buttons
8-way DIP switch
Potentiometer
Reset push-button
Headers for GPIO Ports P0, P1, and P2 of the microcontroller
Header for analogue I/O for ADC and comparator inputs and DAC outputs of the microcontroller
Power-on LED
A small area for prototyping is provided

Supplied with

USB extension cable

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
