    STMicroelectronics Discovery MCU Development Kit STM32F0DISCOVERY

    RS庫存編號:
    758-7554
    製造零件編號:
    STM32F0DISCOVERY
    製造商:
    STMicroelectronics
    STMicroelectronics
    查看此類別
    68 現貨庫存,可於3工作日發貨。
    Add to Basket
    單位

    已增加

    單價 個

    原價 HK$105.92

    您付款

    HK$73.92

    單位Per unit
    1 +HK$73.92
    RS庫存編號:
    758-7554
    製造零件編號:
    STM32F0DISCOVERY
    製造商:
    STMicroelectronics

    法例與合規


    產品詳細資訊

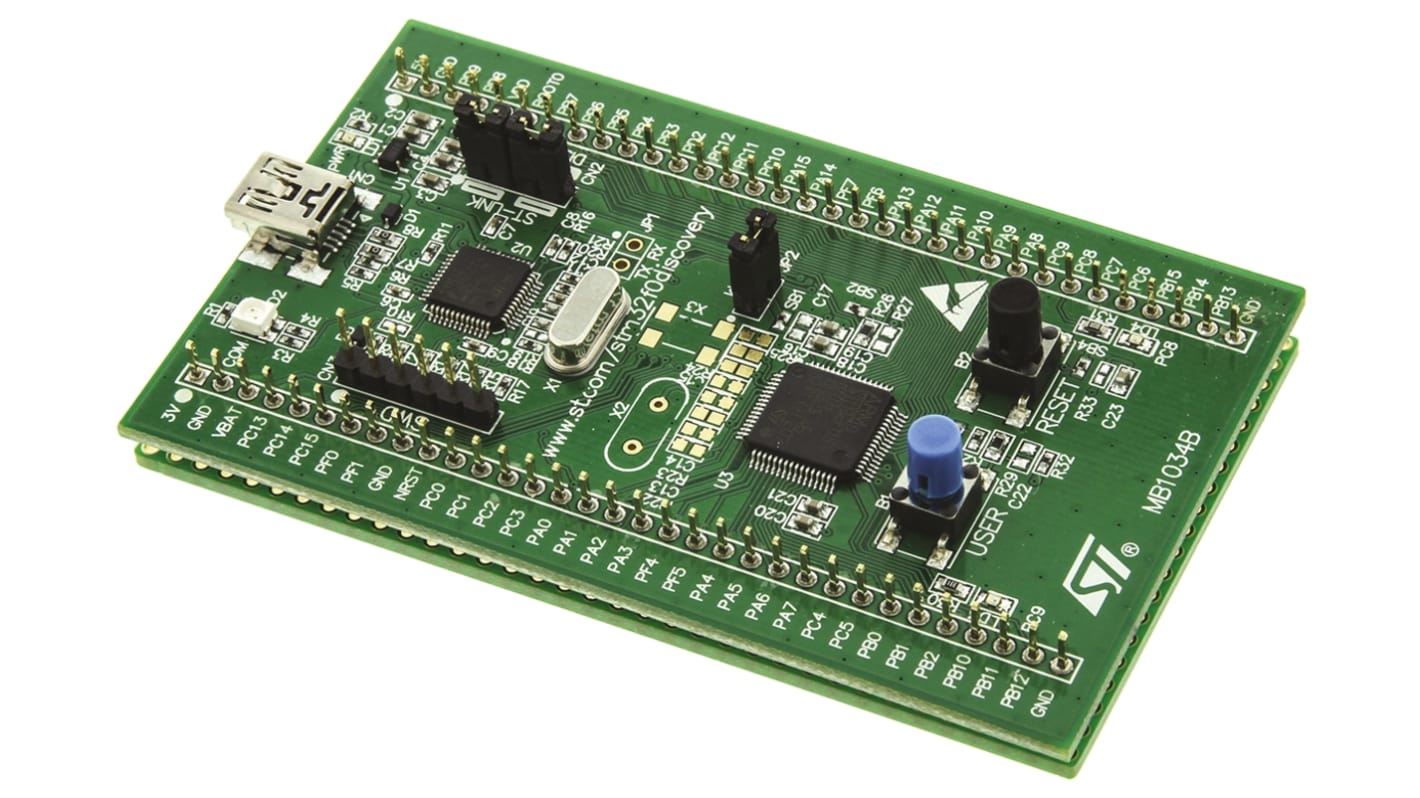

    Discovery Kit for STM32F051R8 Microcontroller


    The STM32F0DISCOVERY helps you to discover the STM32F0 Cortex-M0 features and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.

    Based on the STM32F051R8T6, it includes an ST-LINK/V2 embedded debug tool, LEDs, pushbuttons and an additional prototyping board for easy connection of additional components and modules.

    A large number of free ready-to-run application firmware examples are available on www.st.com/stm32f0discovery to support quick evaluation and development.

    STM32F051R8T6 microcontroller featuring 64KB Flash, 8KB RAM in an LQFP64 package
    On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
    Board power supply: through USB bus or from an external 5V supply voltage
    External application power supply: 3 and 5 Volts
    Four LEDs:
    LD1 (red) for 3.3V power on
    LD2 (red/green) for USB communication
    LD3 (green) for PC9 output
    LD4 (blue) for PC8 output
    Two push buttons (user and reset)
    Extension header for all LQFP64 I/Os for quick connection to prototyping board and easy probing
    An additional board is provided which can be connected to the extension connector for even easier prototyping and probing.

    STM32 Kit contains:


    • STM32F051R8T6 microcontroller featuring 64KB Flash, 8KB RAM in an LQFP64 package
    • On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
    • Board power supply: through USB bus or from an external 5V supply voltage
    • External application power supply: 3 and 5 Volts
    Four LEDs:
    • LD1 (red) for 3.3V power on
    • LD2 (red/green) for USB communication
    • LD3 (green) for PC9 output
    • LD4 (blue) for PC8 output
    • Two push buttons (user and reset)
    • Extension header for all LQFP64 I/Os for quick connection to prototyping board and easy probing

    An additional board is provided which can be connected to the extension connector for even easier prototyping and probing.


    STM32F0 Series 32-Bit ARM® Cortex®-M0 Microcontrollers, STMicroelectronics


    The STM32 F0 Series of the 32-bit Flash Microcontrollers (MCUs) is based on the ARM Cortex™-M0 core; a core specifically developed for embedded applications. STMicroelectronics’s STM32 ARM Cortex™ M processor benefits from the Cortex-M0 architectural enhancements including digital signal processing, real-time performance, low voltage and low power. ST’s ARM® STM32 F0 mainstream series delivers a 32-bit performance and is ideal for small projects or platform decisions with its easy to use functionality.

    規格

    AttributeValue
    ClassificationDevelopment Kit
    Kit NameDiscovery
    TechnologyMCU
    Device CoreARM Cortex M0
    Processor Family NameSTM32F0
    Processor Part NumberSTM32F051R8T6
    Processor TypeMCU
