STMicroelectronics Discovery MCU Development Kit STM32L152C-DISCO
- RS庫存編號:
- 880-2084
- 製造零件編號:
- STM32L152C-DISCO
- 製造商:
- STMicroelectronics
查看此類別
- RS庫存編號:
- 880-2084
- 製造零件編號:
- STM32L152C-DISCO
- 製造商:
- STMicroelectronics
不適用
法例與合規
不適用
產品詳細資訊

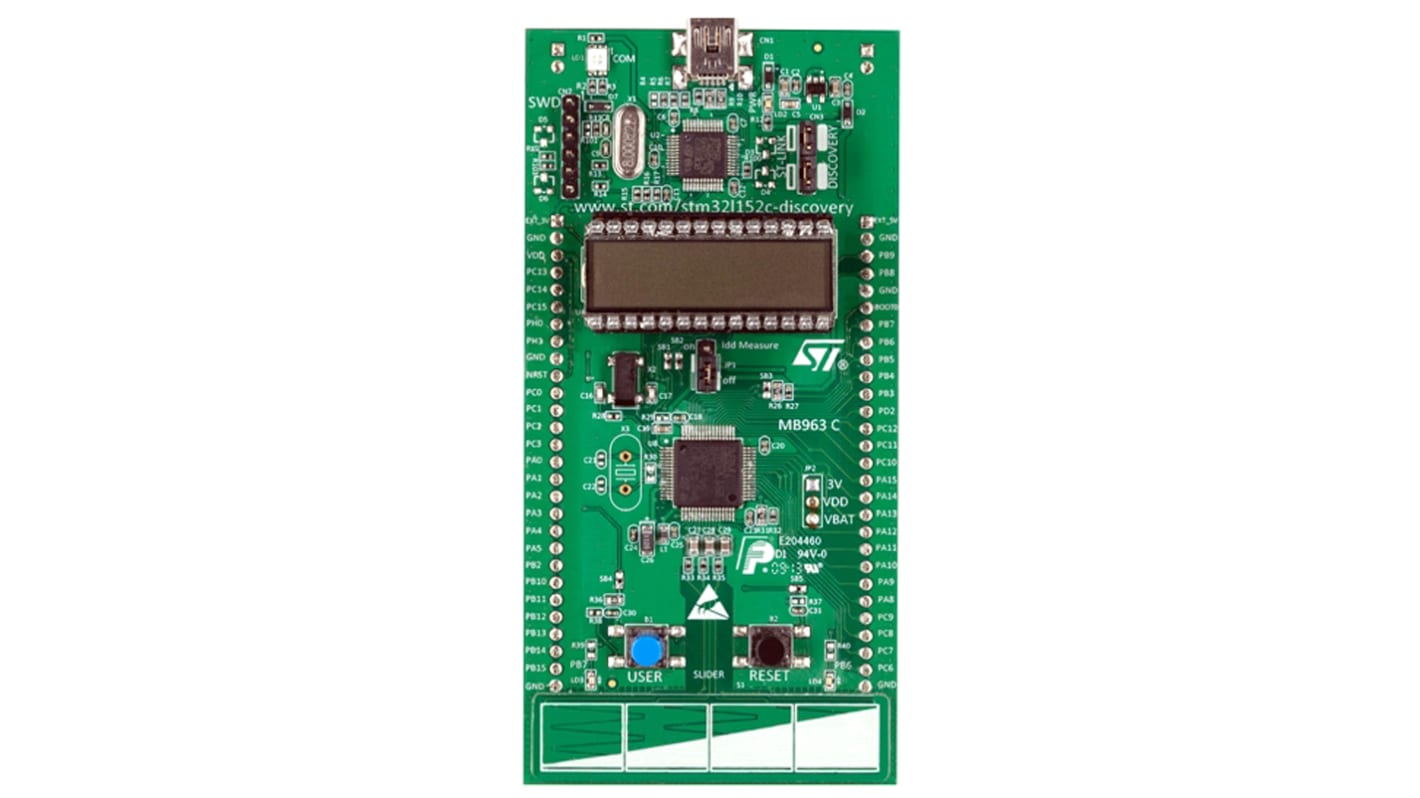

Discovery Kit for STM32L152RC Microcontroller
The STM32L152C-DISCO Discovery kit allows easy evaluation of the 32-bit ARM Cortex-M3 STM32L152 ultra-low power microcontrollers.
32MHz STM32L152RCT6 Cortex-M3 core microcontroller with 256KB ECC Flash memory, 32KB RAM, 8KB ECC EEPROM
9 x Serial communication interfaces: USB, USART, SPI, I²C, I²S
LCD Driver for 8 x 28 or 4 x 32 segments
23 x Capacitive sensing channels
Pre-programmed bootloader
On-board ST-LINK/V2 program/debug
SWD connector
MiniUSB connector
ST-LINK/V2 mode switch
IDD current measurement unit
6 x Digit and 4 x Bar alphanumeric LCD display
2 x Status LEDs
2 x User LEDs
Reset and User pushbuttons
Linear touch sensor or four touchpads
Headers for access to GPIO pins
Power supply: USB VBus or external +5Vdc
External application power supply: +3V and +5V
9 x Serial communication interfaces: USB, USART, SPI, I²C, I²S
LCD Driver for 8 x 28 or 4 x 32 segments
23 x Capacitive sensing channels
Pre-programmed bootloader
On-board ST-LINK/V2 program/debug
SWD connector
MiniUSB connector
ST-LINK/V2 mode switch
IDD current measurement unit
6 x Digit and 4 x Bar alphanumeric LCD display
2 x Status LEDs
2 x User LEDs
Reset and User pushbuttons
Linear touch sensor or four touchpads
Headers for access to GPIO pins
Power supply: USB VBus or external +5Vdc
External application power supply: +3V and +5V
STM32L1 Series 32-Bit ARM® Cortex®-M3 Microcontrollers, STMicroelectronics
ARM® Cortex™-M3-based STM32 L1 series uses STs proprietary ultra-low-leakage process technology with an innovative autonomous dynamic voltage scaling and five (5) low-power modes offering unprecedented platform flexibility to fit any application. The STM32 L1 series extends the ultra-low power concept with no compromise on performance.
Ultra-Low-Power mode: 300nA with backup registers (3 wakeup pins)
Ultra-Low-Power mode + Real Time Clock (RTC): 900nA with backup registers (3 wakeup pins)
Low-Power Run mode: down to 9μA
Dynamic Run mode: down to 230μA/MHz
Ultra-Low-Power mode + Real Time Clock (RTC): 900nA with backup registers (3 wakeup pins)
Low-Power Run mode: down to 9μA
Dynamic Run mode: down to 230μA/MHz
規格
Attribute | Value |
Classification | Development Kit |
Kit Name | Discovery |
Technology | MCU |
Device Core | ARM Cortex M3 |
Processor Family Name | STM |
Processor Part Number | STM32L152RCT6 |
Processor Type | MCU |
