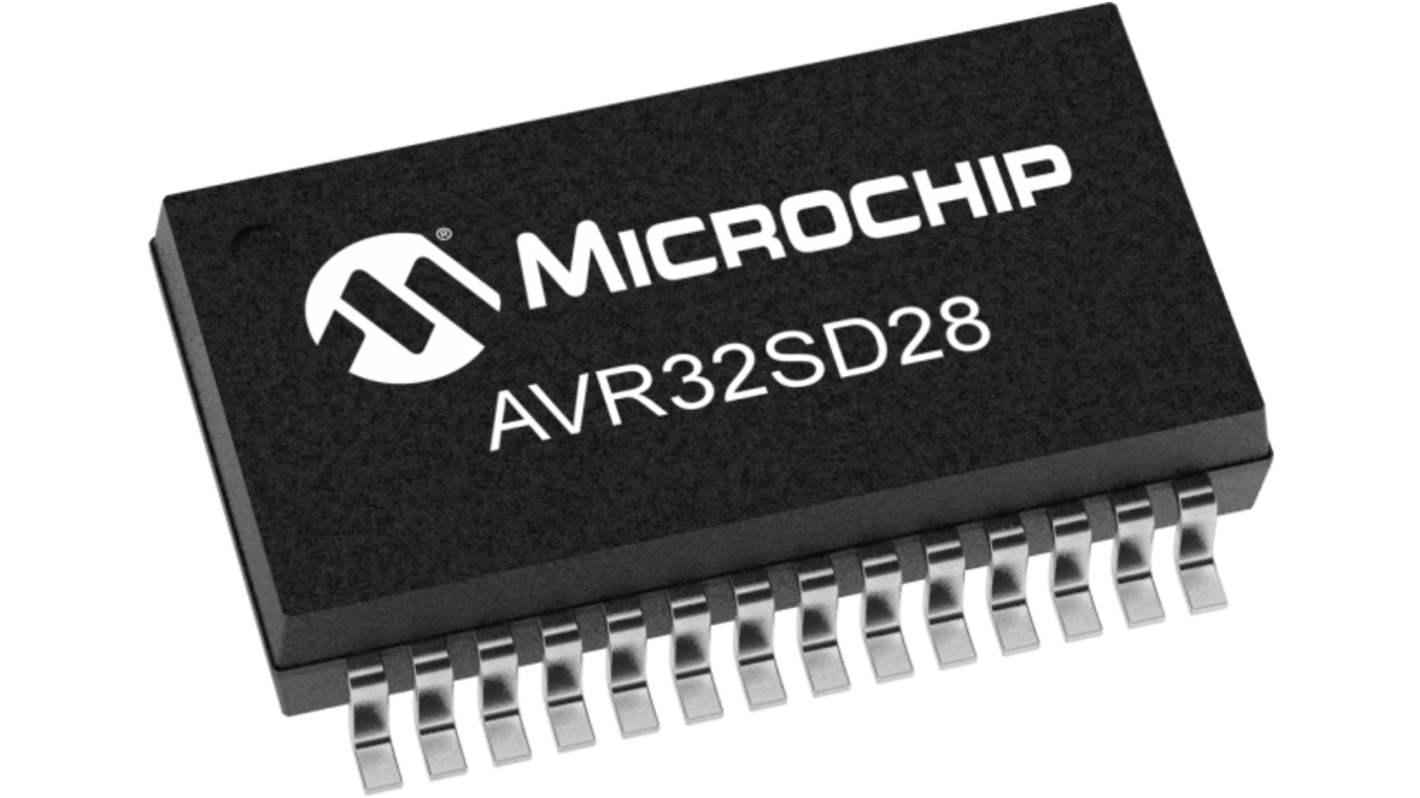

Microchip AVR32SD28T-E/SS, 8 bit CPU, AVR SD Family Other Microcontroller (MCU), 20 MHz, 32kB SRAM, 28-Pin SSOP

查看所有Microcontrollers
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
RS庫存編號:
426-082
製造零件編號:
AVR32SD28T-E/SS
製造商:
Microchip
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Microchip

Series

AVR SD Family

Product Type

Other Microcontroller (MCU)

Package Type

SSOP

Mount Type

Surface

Pin Count

28

Device Core

CPU

Data Bus Width

8bit

Program Memory Size

32kB

Interface Type

SPI, USART, UPDI, I2C

Maximum Clock Frequency

20MHz

RAM Size

8kB

Maximum Supply Voltage

5.5V

Analogue Comparators

3

DACs

1 x 10 Bit

Number of Programmable I/Os

25

Maximum Power Dissipation Pd

800mW

Minimum Operating Temperature

-40°C

Maximum Expanded Memory Size

32kB

Maximum Operating Temperature

125°C

Width

8.2 mm

Height

2mm

Length

10.5mm

Standards/Approvals

ISO 26262

Minimum Supply Voltage

2.7V

Automotive Standard

ISO 26262

Program Memory Type

SRAM

ADCs

2 x 10 Bit

Number of Timers

7

COO (Country of Origin):
TH
The Microchip AVR microcontrollers are designed in compliance with the ISO 26262 functional safety standard, incorporate the AVR CPU with a hardware multiplier running at clock speeds up to 20 MHz. They offer 32 KB of Flash, 4 KB of SRAM, and 256 bytes of EEPROM. These microcontrollers feature a flexible and low-power architecture with an Event System, accurate analog features, and advanced digital peripherals. The AVR SD includes a dual core lockstep CPU, Single Error Correcting and Double Error Detecting ECC on Flash, EEPROM, and SRAM, an Error Controller for functional safety, and a Program and Debug Interface Disable for security.

Dual core lock step AVR CPU running up to 20 MHz

Dedicated error controller

Stack monitor

Core supply voltage monitor with under and over voltage detection

Clock failure detect

Clock frequency monitor
