    Microchip PIC16F1509-I/P, 8bit PIC Microcontroller, PIC16F, 20MHz, 8192 words Flash, 20-Pin PDIP

    RS庫存編號:
    145-9033
    製造零件編號:
    PIC16F1509-I/P
    製造商:
    Microchip
    Microchip

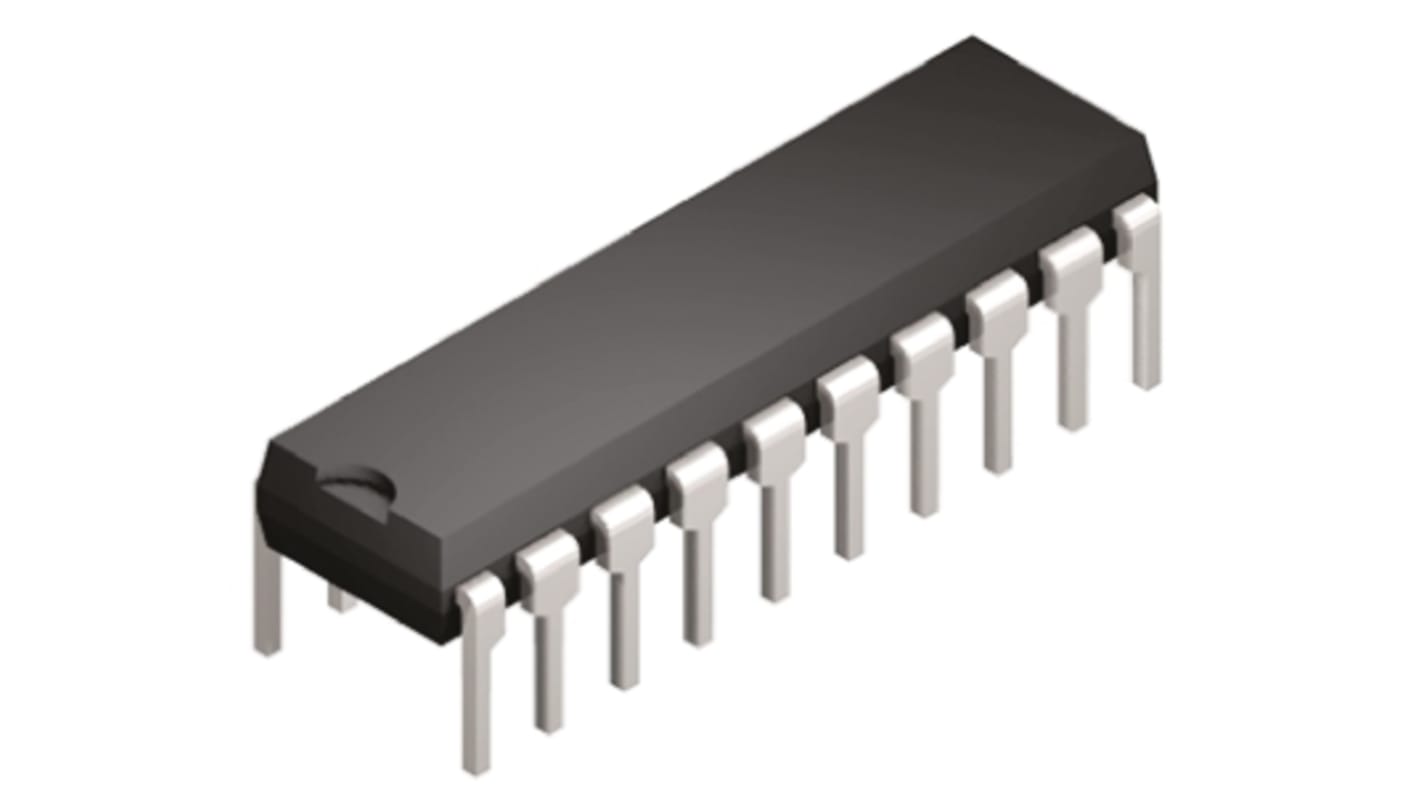

    此圖片僅供參考,請參閲產品詳細資訊及規格

    查看所有Microcontrollers
    當前暫無庫存,可於2024/6/4發貨,3 工作日送達。
    Add to Basket
    單位

    已增加

    單價 毎管:22 個

    HK$16.013

    單位Per unitPer Tube*
    22 - 66HK$16.013HK$352.286
    88 - 154HK$15.613HK$343.486
    176 +HK$15.372HK$338.184
    * 參考價格
    RS庫存編號:
    145-9033
    製造零件編號:
    PIC16F1509-I/P
    製造商:
    Microchip
    COO (Country of Origin):
    TH

    法例與合規

    COO (Country of Origin):
    TH

    產品詳細資訊

    PIC16F1508/1509 8-Bit Flash Microcontrollers


    The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

    The PIC16F1508/1509 family of microcontrollers is based upon Microchip’s enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 5 MIPS, up to 14 Kbytes program memory with data memory of up to 512 bytes RAM. On board is a configurable oscillator with ±1% accuracy.

    Microcontroller Features


    20 MHz Max. CPU Speed
    49 Instructions
    16 Level Hardware Stack
    16 MHz Internal Oscillator – Selectable Frequency Range 16 MHz to 32 kHz
    18 I/O Pins
    XLP Technology
    Power-On Reset (POR)
    Power-Up Timer (PWRT)
    Programmable Low Power Brown-Out Reset (LPBOR)
    Extended Watchdog Timer (WDT)
    In-Circuit Serial Programming (ICSP)
    In-Circuit Debug (ICD)

    Peripherals


    12 Channel 10-bit Analogue to Digital Converter (ADC)
    5-bit Digital to Analogue Converter (DAC)
    Two Comparators
    Voltage Reference
    Two 8-bit Timers
    One 16-bit Timer
    Four 10-bit PWM Modules
    Master Synchronous Serial Port (MSSP) with SPI and I2C
    Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
    Four Configurable Logic Cell (CLC) Modules
    Numerically Controlled Oscillator (NCO)
    Complimentary Waveform Generator (CWG)

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    規格

    AttributeValue
    Family NamePIC16F
    Package TypePDIP
    Mounting TypeThrough Hole
    Pin Count20
    Device CorePIC
    Data Bus Width8bit
    Program Memory Size8192 words
    Maximum Frequency20MHz
    RAM Size512 B
    USB Channels1
    Number of PWM Units1 x 10 bit
    Number of SPI Channels1
    Number of UART Channels1
    Number of I2C Channels1
    Number of USART Channels1
    Typical Operating Supply Voltage2.3 → 5.5 V
    Number of CAN Channels0
    Minimum Operating Temperature-40 °C
    Number of ADC Units1
    Maximum Number of Ethernet Channels0
    Maximum Operating Temperature+85 °C
    Instruction Set ArchitectureRISC
    Number of LIN Channels1
    Height4.95mm
    Length26.92mm
    ADCs12 x 10 bit
    Width0.28in
    Program Memory TypeFlash
    Pulse Width Modulation4 x 10 bit
    Dimensions1.06 x 0.28 x 0.195in
    Number of PCI Channels0
    Number of Ethernet Channels0
