製造零件編號

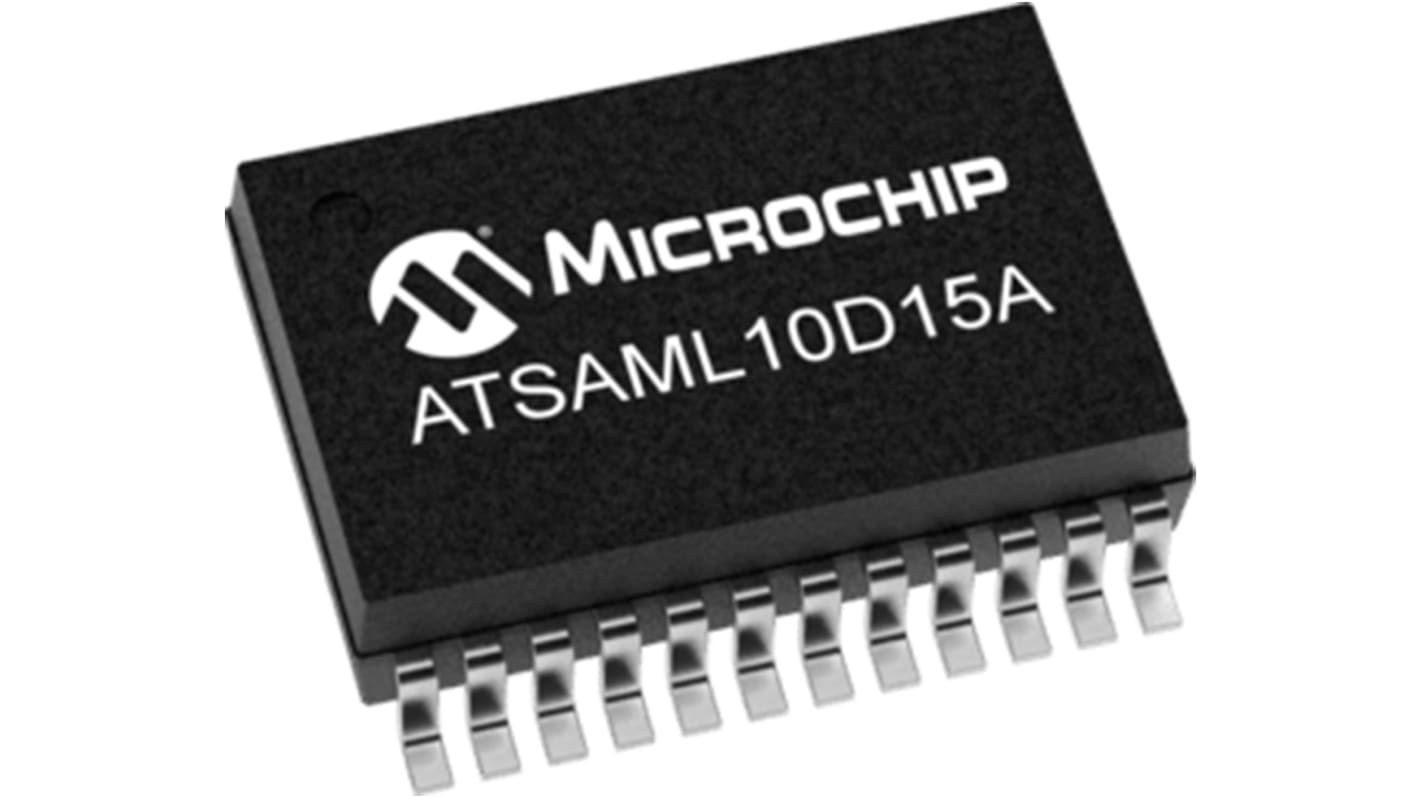

Microchip, 32bit, SAML10 Microcontroller, 32MHz, 32 kB Flash, 24-Pin SSOP

RS庫存編號:: 175-9400
製造零件編號:: ATSAML10D15A-YU
製造商:: Microchip

Microchip, 32bit, SAML10 Microcontroller, 32MHz, 32 kB Flash, 24-Pin SSOP

可享批量折扣

小計（1 包，共 5 件）*

HK$122.80

訂單超過 HK$250.00 免費送貨

正在逐步停售

最終 40 個，準備發貨

單位	每單位	每包*
5 - 5	HK$24.56	HK$122.80
10 - 45	HK$23.946	HK$119.73
50 +	HK$23.348	HK$116.74

* 參考價格

RS庫存編號:: 175-9400
製造零件編號:: ATSAML10D15A-YU
製造商:: Microchip

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Family Name	SAML10
	Package Type	SSOP
	Mounting Type	Surface Mount
	Pin Count	24
	Data Bus Width	32bit
	Program Memory Size	32 kB
	Maximum Frequency	32MHz
	RAM Size	8 kB
	USB Channels	0
	Number of PWM Units	0
	Number of SPI Channels	2
	Number of CAN Channels	0
	Number of UART Channels	0
	Typical Operating Supply Voltage	1.62 → 3.63 V
	Number of I2C Channels	2
	Number of USART Channels	1
	Height	1.85mm
	ADCs	5 x 12 bit
	Length	8.5mm
	Width	5.6mm
	Number of ADC Units	1
	Number of Ethernet Channels	0
	Number of LIN Channels	1
	Dimensions	8.5 x 5.6 x 1.85mm
	Number of PCI Channels	0
	Maximum Number of Ethernet Channels	0
	Minimum Operating Temperature	-40 °C
	Program Memory Type	Flash
	Automotive Standard	AEC-Q100
	Maximum Operating Temperature	+125 °C

	選取全部
	品牌 Microchip
	Family Name SAML10
	Package Type SSOP
	Mounting Type Surface Mount
	Pin Count 24
	Data Bus Width 32bit
	Program Memory Size 32 kB
	Maximum Frequency 32MHz
	RAM Size 8 kB
	USB Channels 0
	Number of PWM Units 0
	Number of SPI Channels 2
	Number of CAN Channels 0
	Number of UART Channels 0
	Typical Operating Supply Voltage 1.62 → 3.63 V
	Number of I2C Channels 2
	Number of USART Channels 1
	Height 1.85mm
	ADCs 5 x 12 bit
	Length 8.5mm
	Width 5.6mm
	Number of ADC Units 1
	Number of Ethernet Channels 0
	Number of LIN Channels 1
	Dimensions 8.5 x 5.6 x 1.85mm
	Number of PCI Channels 0
	Maximum Number of Ethernet Channels 0
	Minimum Operating Temperature -40 °C
	Program Memory Type Flash
	Automotive Standard AEC-Q100
	Maximum Operating Temperature +125 °C

Datasheet

COO (Country of Origin):: US

Power Arm® Cortex®-M23 MCU consuming less than 25 uA/MHz in active mode and less than 100 nA in sleep mode. It features enhanced peripheral touch controller, advanced analog, event system and Sleep Walking peripherals. SAML10 achieved EEMBC Certified ULPMark 405

Processor:
ARM Cortex®-M23
32 MHz (2.62 CoreMark/MHz and up to 31 DMIPS)
Single-cycle hardware multiplier
Hardware divider
Nested Vector Interrupt Controller (NVIC)
Memory Protection Unit (MPU)
Operating Voltage Range:
1.62V to 3.63V

Microchip, 32bit, SAML10 Microcontroller, 32MHz, 32 kB Flash, 24-Pin SSOP
