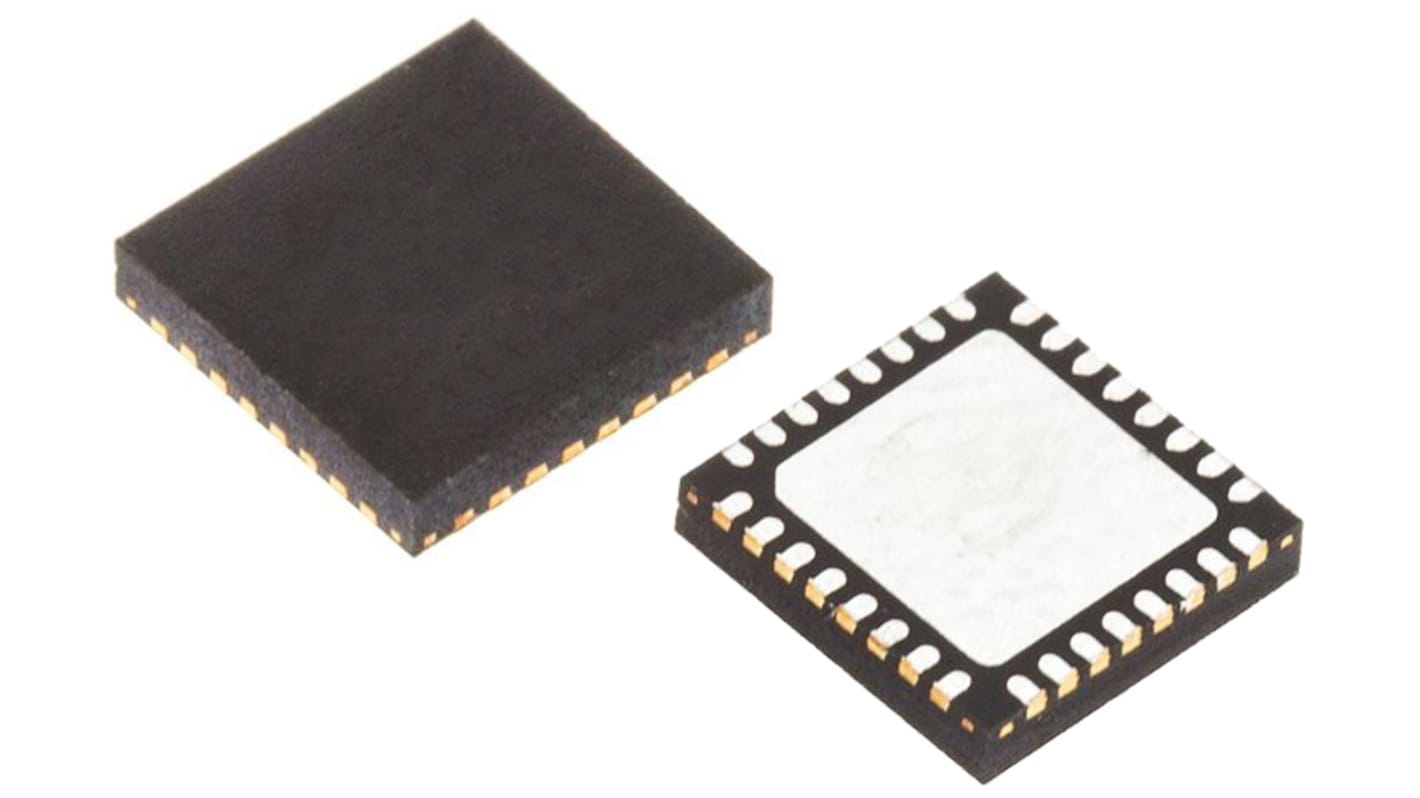

Cypress Semiconductor CY8C4024LQI-S412, 32bit ARM Cortex M0 Microcontroller, CY8C4000, 24MHz, 16 kB Flash, 32-Pin QFN
- RS庫存編號:
- 177-1119
- 製造零件編號:
- CY8C4024LQI-S412
- 製造商:
- Cypress Semiconductor
查看所有Microcontrollers
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
PSoC® 4 is a scalable and reconfigurable platform architecture for a family of mixed-signal programmable embedded system controllers with an ARM® Cortex™-M0 CPU. It combines programmable and reconfigurable analog and digital blocks with flexible automatic routing. The PSoC 4100 product family, based on this platform, is a combination of a microcontroller with digital programmable logic, high-performance analog-to-digital conversion, opamps with Comparator mode, and standard communication and timing peripherals.
32-bit MCU Sub-system:
24-MHz ARM Cortex-M0 CPU with single-cycle multiply
Up to 32 kB of flash with Read Accelerator
Up to 4 kB of SRAM
24-MHz ARM Cortex-M0 CPU with single-cycle multiply
Up to 32 kB of flash with Read Accelerator
Up to 4 kB of SRAM
規格
| Attribute | Value |
| Family Name | CY8C4000 |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | ARM Cortex M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 24MHz |
| RAM Size | 2 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 x 16 bit |
| Number of SPI Channels | 2 |
| Number of UART Channels | 2 |
| Number of CAN Channels | 0 |
| Number of I2C Channels | 2 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Number of USART Channels | 0 |
| Instruction Set Architecture | Thumb-2 |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 5.1mm |
| ADCs | 1 x 10 bit |
| Height | 0.55mm |
| Number of LIN Channels | 1 |
| Width | 5.1mm |
| Dimensions | 5.1 x 5.1 x 0.55mm |
| Pulse Width Modulation | 1 (5 x 16 bit) |
| Program Memory Type | Flash |
| Number of Ethernet Channels | 0 |
| Number of PCI Channels | 0 |
| Maximum Number of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
此產品已停售
