規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Series	STM32F078RB
	Product Type	Microcontroller
	Package Type	LQFP
	Mount Type	Surface
	Pin Count	64
	Device Core	ARM Cortex M0
	Data Bus Width	32bit
	Program Memory Size	128kB
	Maximum Clock Frequency	48MHz
	RAM Size	16kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	No
	Maximum Power Dissipation Pd	455mW
	Analogue Comparators	2
	Height	1.45mm
	Width	10 mm
	DACs	2 x 12 Bit
	Length	10mm
	Minimum Supply Voltage	1.8V
	Number of Timers	4
	Program Memory Type	FLASH
	ADCs	19 x 12 Bit
	Automotive Standard	No
	Instruction Set Architecture	RISC

	選取全部
	品牌 STMicroelectronics
	Series STM32F078RB
	Product Type Microcontroller
	Package Type LQFP
	Mount Type Surface
	Pin Count 64
	Device Core ARM Cortex M0
	Data Bus Width 32bit
	Program Memory Size 128kB
	Maximum Clock Frequency 48MHz
	RAM Size 16kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals No
	Maximum Power Dissipation Pd 455mW
	Analogue Comparators 2
	Height 1.45mm
	Width 10 mm
	DACs 2 x 12 Bit
	Length 10mm
	Minimum Supply Voltage 1.8V
	Number of Timers 4
	Program Memory Type FLASH
	ADCs 19 x 12 Bit
	Automotive Standard No
	Instruction Set Architecture RISC

COO (Country of Origin):: CN

The STM32F078CB/RB/VB microcontrollers incorporate the high-performance Cortex®-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memories (128 Kbytes of Flash memory and 16 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (two I2Cs, two SPI/I2S, one HDMI CEC and four USARTs), one USB Full-speed device (crystal-less), one 12-bit ADC, one 12-bit DAC with two channels, seven 16-bit timers, one 32-bit timer and an advanced-control PWM timer.

The STM32F078CB/RB/VB microcontrollers include devices in seven different packages ranging from 48 pins to 100 pins. Depending on the device chosen, different sets of peripherals are included.

These features make the STM32F078CB/RB/VB microcontrollers suitable for a wide range of applications such as application control and user interfaces, hand-held equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms and HVACs.

單位	每單位	每托盤*
160 - 640	HK$32.733	HK$5,237.28
800 +	HK$32.078	HK$5,132.48

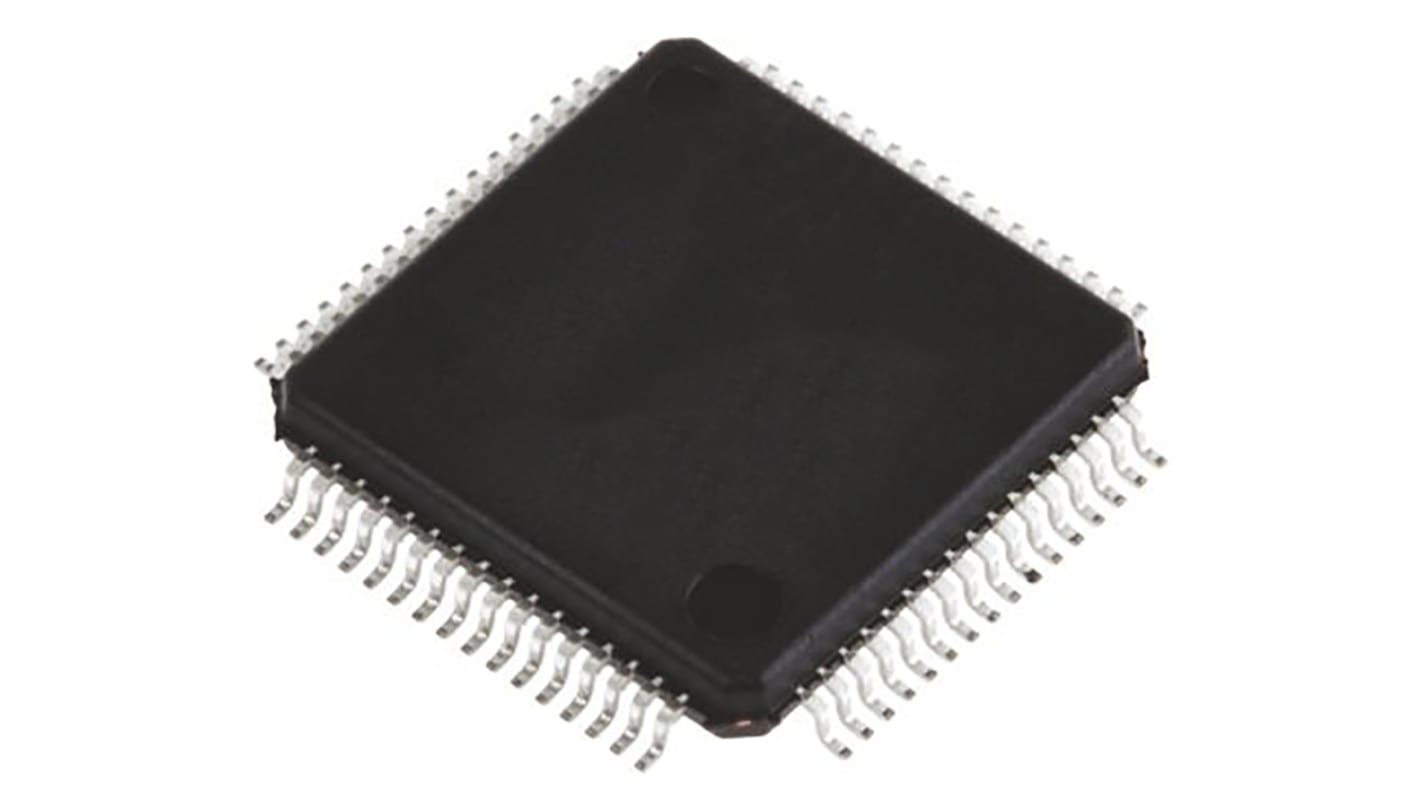

STMicroelectronics, 32 bit ARM Cortex M0, STM32F078RB Microcontroller, 48 MHz, 128kB FLASH, 64-Pin LQFP
