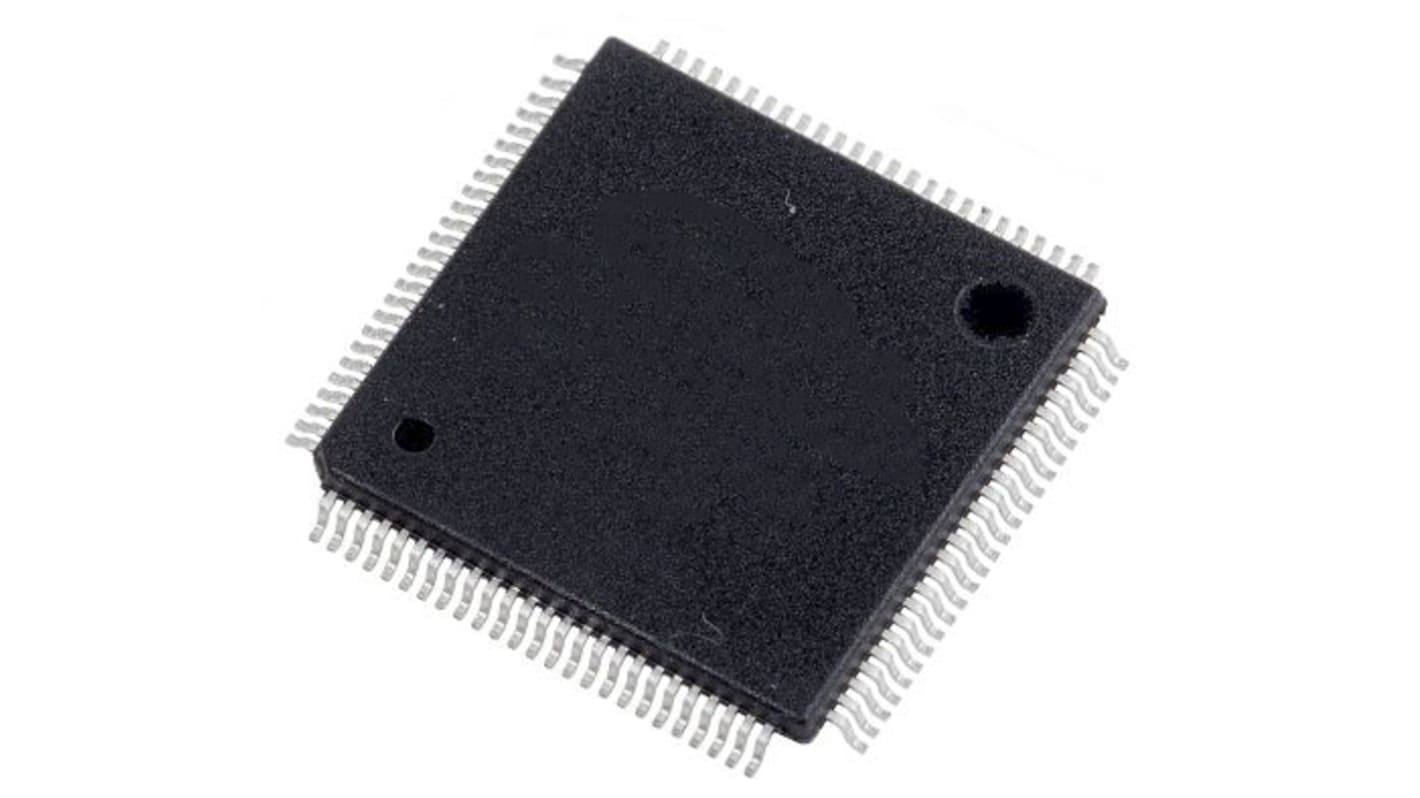

Renesas Electronics, 32bit RX, RX622T Microcontroller, 100MHz, 256 kB Flash, 100-Pin LQFP

RS庫存編號:: 192-8125
製造零件編號:: R5F562TAADFP#V1
製造商:: Renesas Electronics

Renesas Electronics, 32bit RX, RX622T Microcontroller, 100MHz, 256 kB Flash, 100-Pin LQFP

可享批量折扣

小計（1 托盤，共 90 件）*

HK$6,388.83

訂單超過 HK$250.00 免費送貨

有庫存

180 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每托盤*
90 - 90	HK$70.987	HK$6,388.83
180 - 270	HK$69.212	HK$6,229.08
360 +	HK$68.148	HK$6,133.32

* 參考價格

RS庫存編號:: 192-8125
製造零件編號:: R5F562TAADFP#V1
製造商:: Renesas Electronics

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Renesas Electronics
	Family Name	RX622T
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	100
	Device Core	RX
	Data Bus Width	32bit
	Program Memory Size	256 kB
	Maximum Frequency	100MHz
	RAM Size	16 kB
	Number of PWM Units	4 x 16 bit
	Number of SPI Channels	1
	Number of I2C Channels	1
	Number of CAN Channels	1
	Number of UART Channels	3
	Typical Operating Supply Voltage	4 → 5.5 V
	Maximum Operating Temperature	+85 °C
	Number of PCI Channels	0
	Maximum Number of Ethernet Channels	0
	Number of ADC Units	2
	Length	14.1mm
	Program Memory Type	Flash
	Dimensions	14.1 x 14.1 x 1.4mm
	Minimum Operating Temperature	-40 °C
	ADCs	20 x 10/12 bit
	Number of Ethernet Channels	0
	Height	1.4mm
	Width	14.1mm
	Instruction Set Architecture	CISC Harvard

	選取全部
	品牌 Renesas Electronics
	Family Name RX622T
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 100
	Device Core RX
	Data Bus Width 32bit
	Program Memory Size 256 kB
	Maximum Frequency 100MHz
	RAM Size 16 kB
	Number of PWM Units 4 x 16 bit
	Number of SPI Channels 1
	Number of I2C Channels 1
	Number of CAN Channels 1
	Number of UART Channels 3
	Typical Operating Supply Voltage 4 → 5.5 V
	Maximum Operating Temperature +85 °C
	Number of PCI Channels 0
	Maximum Number of Ethernet Channels 0
	Number of ADC Units 2
	Length 14.1mm
	Program Memory Type Flash
	Dimensions 14.1 x 14.1 x 1.4mm
	Minimum Operating Temperature -40 °C
	ADCs 20 x 10/12 bit
	Number of Ethernet Channels 0
	Height 1.4mm
	Width 14.1mm
	Instruction Set Architecture CISC Harvard

Datasheet R5F562TAADFP#V1

The RX62T Group of high-performance microcontrollers with a maximum operating frequency of 100MHz are designed for motor control. They are equipped with multifunction timers (MTU, GPT), high-speed 12bit A/D converter and 10bit A/D converter for facilitating motor control. In addition to a maximum of 256KB flash and 16KB RAM on-chip memory, they have a maximum of 32KB of on-chip flash memory for data storage. 64pin to 112pin packages are available.

Renesas Electronics, 32bit RX, RX622T Microcontroller, 100MHz, 256 kB Flash, 100-Pin LQFP
