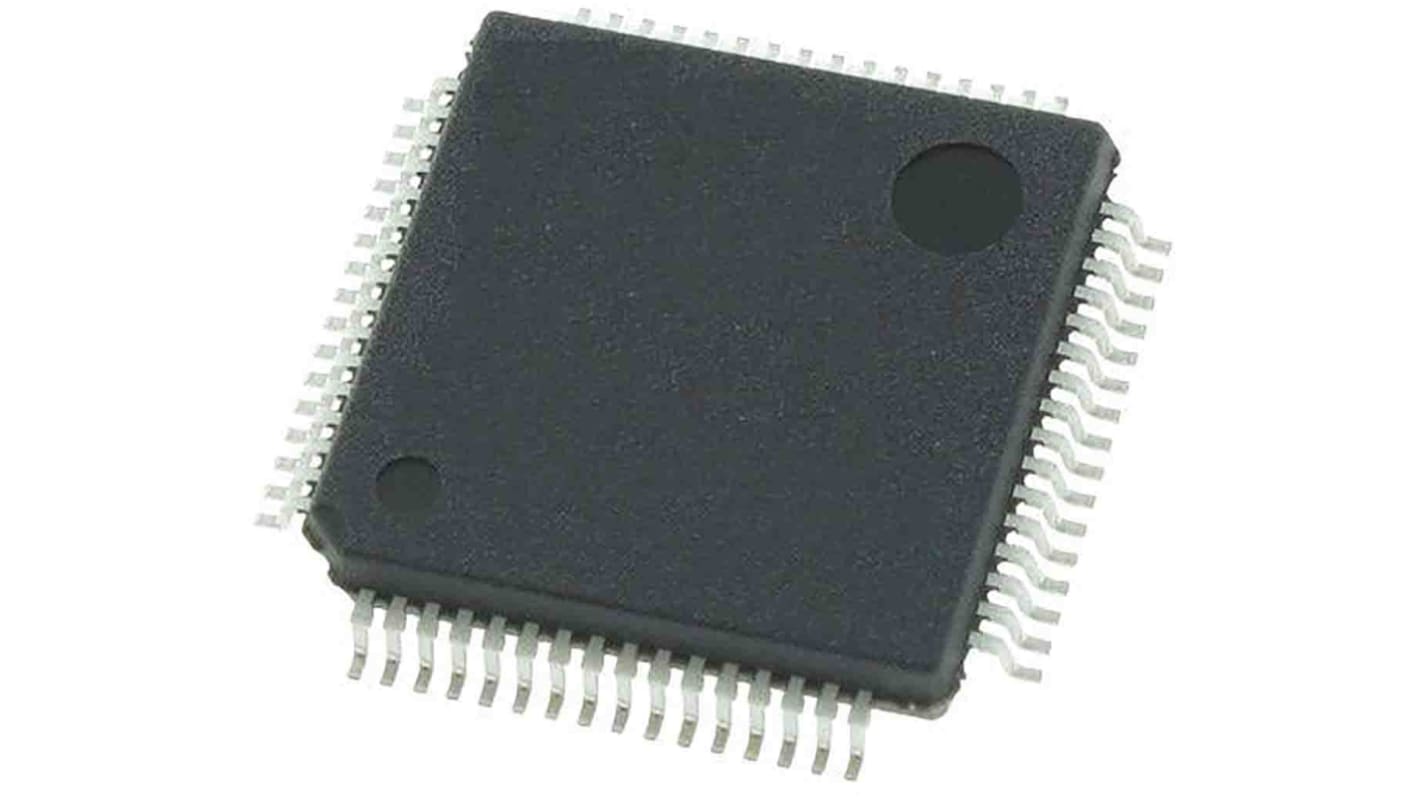

Renesas Electronics, 32bit RX, RX631 Microcontroller, 100MHz, 512 kB Flash, 64-Pin LQFP
- RS庫存編號:
- 192-8136P
- 製造零件編號:
- R5F5631PDDFM#V0
- 製造商:
- Renesas Electronics
可享批量折扣
小計 40 件 (以盤裝提供)*
HK$3,886.00
訂單超過 HK$250.00 免費送貨
有庫存
- 151 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 40 - 79 | HK$97.15 |
| 80 + | HK$95.06 |
* 參考價格
- RS庫存編號:
- 192-8136P
- 製造零件編號:
- R5F5631PDDFM#V0
- 製造商:
- Renesas Electronics
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Renesas Electronics | |
| Family Name | RX631 | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 64 | |
| Device Core | RX | |
| Data Bus Width | 32bit | |
| Program Memory Size | 512 kB | |
| Maximum Frequency | 100MHz | |
| RAM Size | 64 kB | |
| USB Channels | 1 | |
| Number of SPI Channels | 8 | |
| Number of CAN Channels | 1 | |
| Typical Operating Supply Voltage | 2.7 → 3.6 V | |
| Number of USART Channels | 0 | |
| Number of UART Channels | 6 | |
| Number of I2C Channels | 7 | |
| Length | 10.1mm | |
| Number of ADC Units | 1 | |
| Maximum Operating Temperature | +85 °C | |
| Number of Ethernet Channels | 0 | |
| ADCs | 12 x 12 bit | |
| Maximum Number of Ethernet Channels | 0 | |
| Instruction Set Architecture | CISC Harvard | |
| Program Memory Type | Flash | |
| Dimensions | 10.1 x 10.1 x 1.4mm | |
| Number of PCI Channels | 0 | |
| Minimum Operating Temperature | -40 °C | |
| Width | 10.1mm | |
| Height | 1.4mm | |
| Number of LIN Channels | 0 | |
| 選取全部 | ||
|---|---|---|
品牌 Renesas Electronics | ||
Family Name RX631 | ||
Package Type LQFP | ||
Mounting Type Surface Mount | ||
Pin Count 64 | ||
Device Core RX | ||
Data Bus Width 32bit | ||
Program Memory Size 512 kB | ||
Maximum Frequency 100MHz | ||
RAM Size 64 kB | ||
USB Channels 1 | ||
Number of SPI Channels 8 | ||
Number of CAN Channels 1 | ||
Typical Operating Supply Voltage 2.7 → 3.6 V | ||
Number of USART Channels 0 | ||
Number of UART Channels 6 | ||
Number of I2C Channels 7 | ||
Length 10.1mm | ||
Number of ADC Units 1 | ||
Maximum Operating Temperature +85 °C | ||
Number of Ethernet Channels 0 | ||
ADCs 12 x 12 bit | ||
Maximum Number of Ethernet Channels 0 | ||
Instruction Set Architecture CISC Harvard | ||
Program Memory Type Flash | ||
Dimensions 10.1 x 10.1 x 1.4mm | ||
Number of PCI Channels 0 | ||
Minimum Operating Temperature -40 °C | ||
Width 10.1mm | ||
Height 1.4mm | ||
Number of LIN Channels 0 | ||
RX631/RX63N Group microcontrollers come in a comprehensive memory vs. package lineup to suit your system scale. In addition to standard functions such as 12bit A/D converter, motor control timers, SCI, RSPI, I2C, CAN and safety features, connectivity functions such as Ethernet and USB host have been enhanced. The lineup also includes products possessing specialized functions, such as sensing/image display using a CMOS camera, or security (hardware AES encryption). Products that support high-temperature (105°C) operation are also available.
