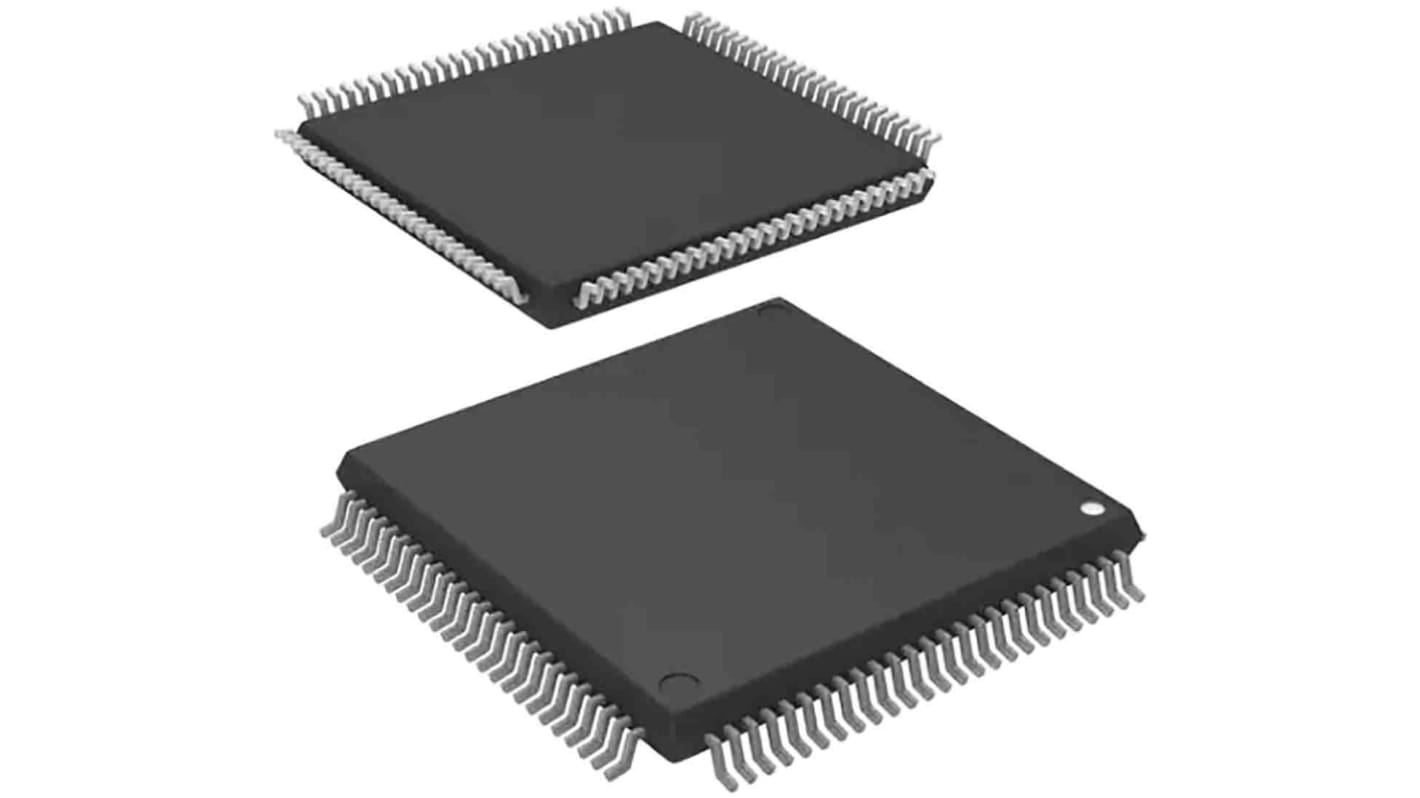

Renesas Electronics, 32bit RX, RX63N Microcontroller, 100MHz, 1 MB Flash, 100-Pin LQFP
- RS庫存編號:
- 192-8137
- 製造零件編號:
- R5F563NBDDFP#V0
- 製造商:
- Renesas Electronics
此產品已停售
- RS庫存編號:
- 192-8137
- 製造零件編號:
- R5F563NBDDFP#V0
- 製造商:
- Renesas Electronics
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Renesas Electronics | |
| Family Name | RX63N | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 100 | |
| Device Core | RX | |
| Data Bus Width | 32bit | |
| Program Memory Size | 1 MB | |
| Maximum Frequency | 100MHz | |
| RAM Size | 128 kB | |
| USB Channels | 1 | |
| Number of SPI Channels | 11 | |
| Typical Operating Supply Voltage | 2.7 → 3.6 V | |
| Number of UART Channels | 9 | |
| Number of CAN Channels | 2 | |
| Length | 14.1mm | |
| ADCs | 22 x 10/12 bit | |
| Height | 1.4mm | |
| Width | 14.1mm | |
| Instruction Set Architecture | CISC Harvard | |
| Dimensions | 14.1 x 14.1 x 1.4mm | |
| Maximum Operating Temperature | +85 °C | |
| Program Memory Type | Flash | |
| Number of ADC Units | 2 | |
| Minimum Operating Temperature | -40 °C | |
