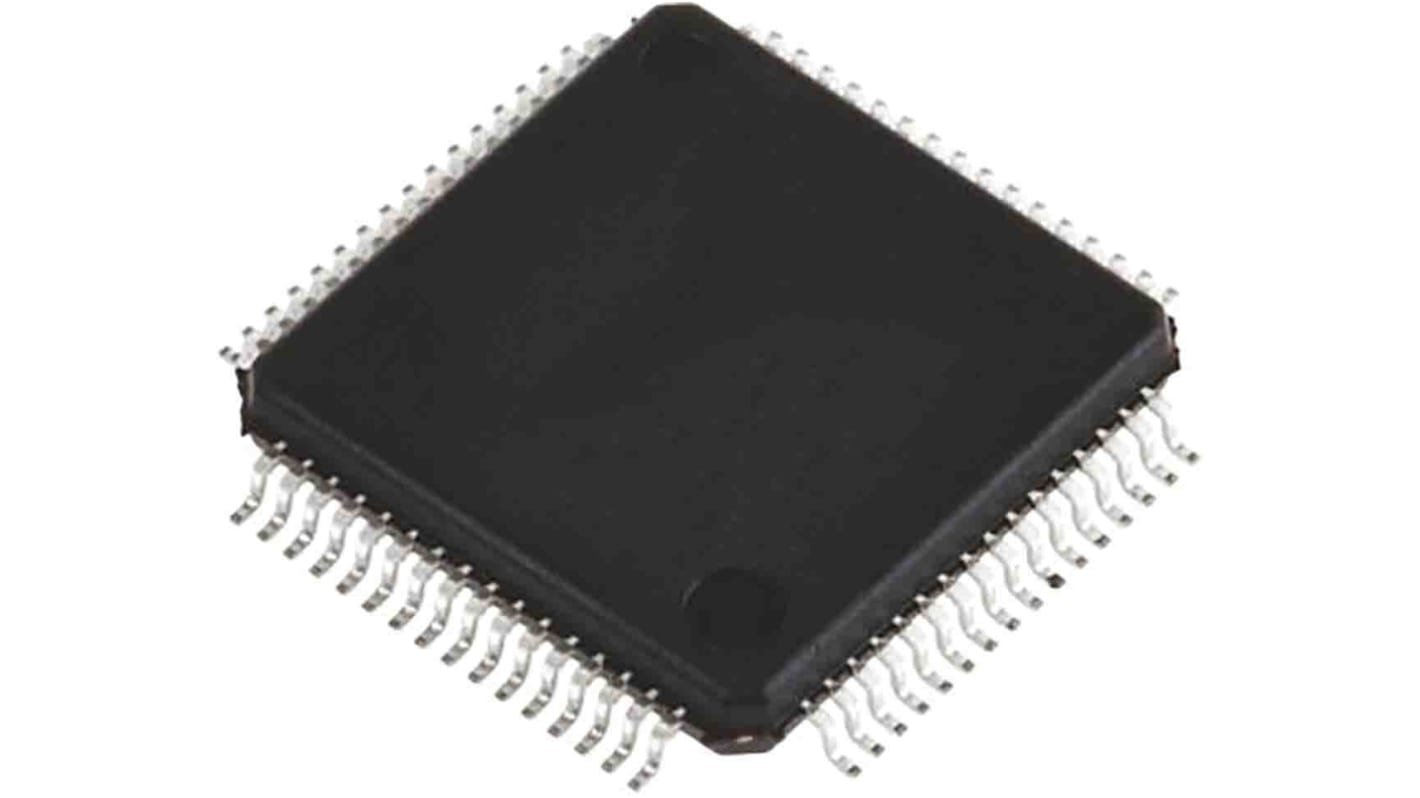

Renesas Electronics R7FS3A77C3A01CFM#AA1, 32bit ARM Cortex M4 Microcontroller, S3A7, 48MHz, 1 MB Flash, 64-Pin LQFP
- RS庫存編號:
- 192-8157P
- 製造零件編號:
- R7FS3A77C3A01CFM#AA1
- 製造商:
- Renesas Electronics
- RS庫存編號:
- 192-8157P
- 製造零件編號:
- R7FS3A77C3A01CFM#AA1
- 製造商:
- Renesas Electronics
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
Ideal for monitoring applications that may require ongoing feature upgrades for multiple services, the S3A7 MCU Group offers ample room for expansion and the optimal combination of low power and high performance, with an Arm® Cortex®-M4 CPU core running up to 48MHz, 1 MB of flash memory and 192 KB of SRAM. It includes an additional 12bit D/A Converter as well as multiple 32bit General PWM timers and serial communications interfaces.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Family Name | S3A7 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 1 MB |
| Maximum Frequency | 48MHz |
| RAM Size | 192 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 x 32 bit |
| Number of SPI Channels | 2 |
| Number of CAN Channels | 1 |
| Number of UART Channels | 2 |
| Number of USART Channels | 0 |
| Typical Operating Supply Voltage | 1.6 → 5.5 V |
| Number of I2C Channels | 2 |
| Minimum Operating Temperature | -40 °C |
| Height | 1.4mm |
| Maximum Number of Ethernet Channels | 0 |
| Length | 10.1mm |
| Number of Ethernet Channels | 0 |
| Dimensions | 10.1 x 10.1 x 1.4mm |
| Maximum Operating Temperature | +105 °C |
| Number of ADC Units | 1 |
| Pulse Width Modulation | 1 (9 x 32 bit) |
| Program Memory Type | Flash |
| Instruction Set Architecture | DSP |
| ADCs | 18 x 14 bit |
| Width | 10.1mm |
| Number of LIN Channels | 0 |
| Number of PCI Channels | 0 |
