STMicroelectronics, 32 bit ARM Cortex M4, STM32F334R8 Microcontroller, 72 MHz, 64kB FLASH, 64-Pin LQFP

RS庫存編號:: 196-2025
製造零件編號:: STM32F334R8T6
製造商:: STMicroelectronics

STMicroelectronics, 32 bit ARM Cortex M4, STM32F334R8 Microcontroller, 72 MHz, 64kB FLASH, 64-Pin LQFP

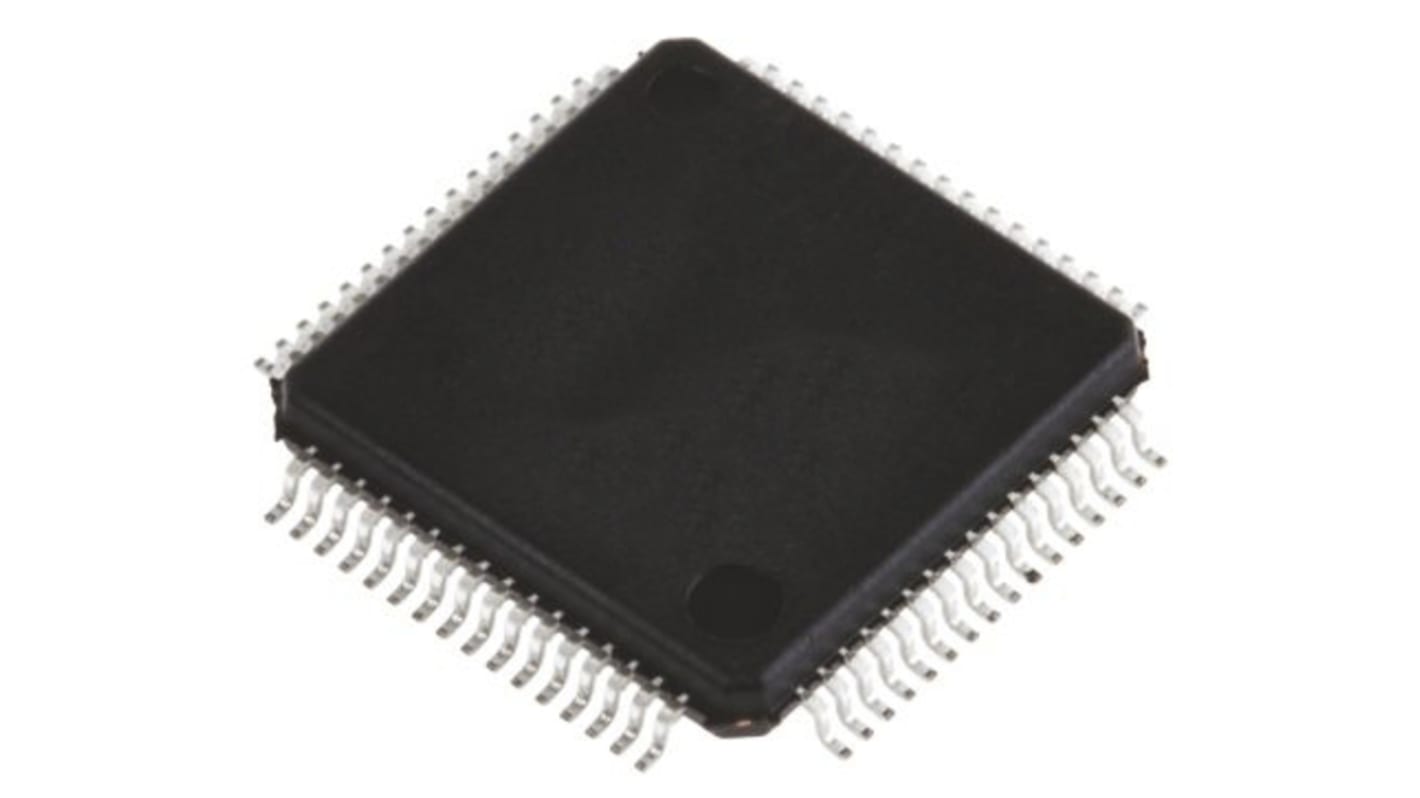

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 托盤，共 160 件）*

HK$6,666.72

訂單超過 HK$250.00 免費送貨

暫時缺貨

從 2026年4月10日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每托盤*
160 - 640	HK$41.667	HK$6,666.72
800 +	HK$40.834	HK$6,533.44

* 參考價格

RS庫存編號:: 196-2025
製造零件編號:: STM32F334R8T6
製造商:: STMicroelectronics

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Product Type	Microcontroller
	Series	STM32F334R8
	Package Type	LQFP
	Mount Type	Surface
	Pin Count	64
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	64kB
	Maximum Clock Frequency	72MHz
	RAM Size	12kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Length	10mm
	Height	1.45mm
	Width	10 mm
	Standards/Approvals	No
	DACs	3 x 12 Bit
	Maximum Power Dissipation Pd	444mW
	Analogue Comparators	3
	Minimum Supply Voltage	2V
	Instruction Set Architecture	RISC
	Program Memory Type	FLASH
	Number of Timers	2
	Automotive Standard	No
	ADCs	21 x 12 Bit

	選取全部
	品牌 STMicroelectronics
	Product Type Microcontroller
	Series STM32F334R8
	Package Type LQFP
	Mount Type Surface
	Pin Count 64
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 64kB
	Maximum Clock Frequency 72MHz
	RAM Size 12kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Length 10mm
	Height 1.45mm
	Width 10 mm
	Standards/Approvals No
	DACs 3 x 12 Bit
	Maximum Power Dissipation Pd 444mW
	Analogue Comparators 3
	Minimum Supply Voltage 2V
	Instruction Set Architecture RISC
	Program Memory Type FLASH
	Number of Timers 2
	Automotive Standard No
	ADCs 21 x 12 Bit

STM32F334R8T6 Datasheet

COO (Country of Origin):: CN

The STM32F334x4/6/8 family incorporates the high-performance Arm® Cortex®-M4 32-bit RISC core operating at up to 72 MHz frequency embedding a floating point unit (FPU), high-speed embedded memories (up to 64 Kbytes of Flash memory, up to 12 Kbytes of SRAM), and an extensive range of enhanced I/Os and peripherals connected to two APB buses.

The STM32F334x4/6/8 microcontrollers offer two fast 12-bit ADCs (5 Msps), up to three ultra-fast comparators, an operational amplifier, three DAC channels, a low-power RTC, one high-resolution timer, one general-purpose 32-bit timer, one timer dedicated to motor control, and four general-purpose 16-bit timers. They also feature standard and advanced communication interfaces: one I2C, one SPI, up to three USARTs and one CAN.

The STM32F334x4/6/8 family operates in the –40 to +85 °C and –40 to +105 °C temperature ranges from 2.0 to 3.6 V power supply.

STMicroelectronics, 32 bit ARM Cortex M4, STM32F334R8 Microcontroller, 72 MHz, 64kB FLASH, 64-Pin LQFP
