製造零件編號

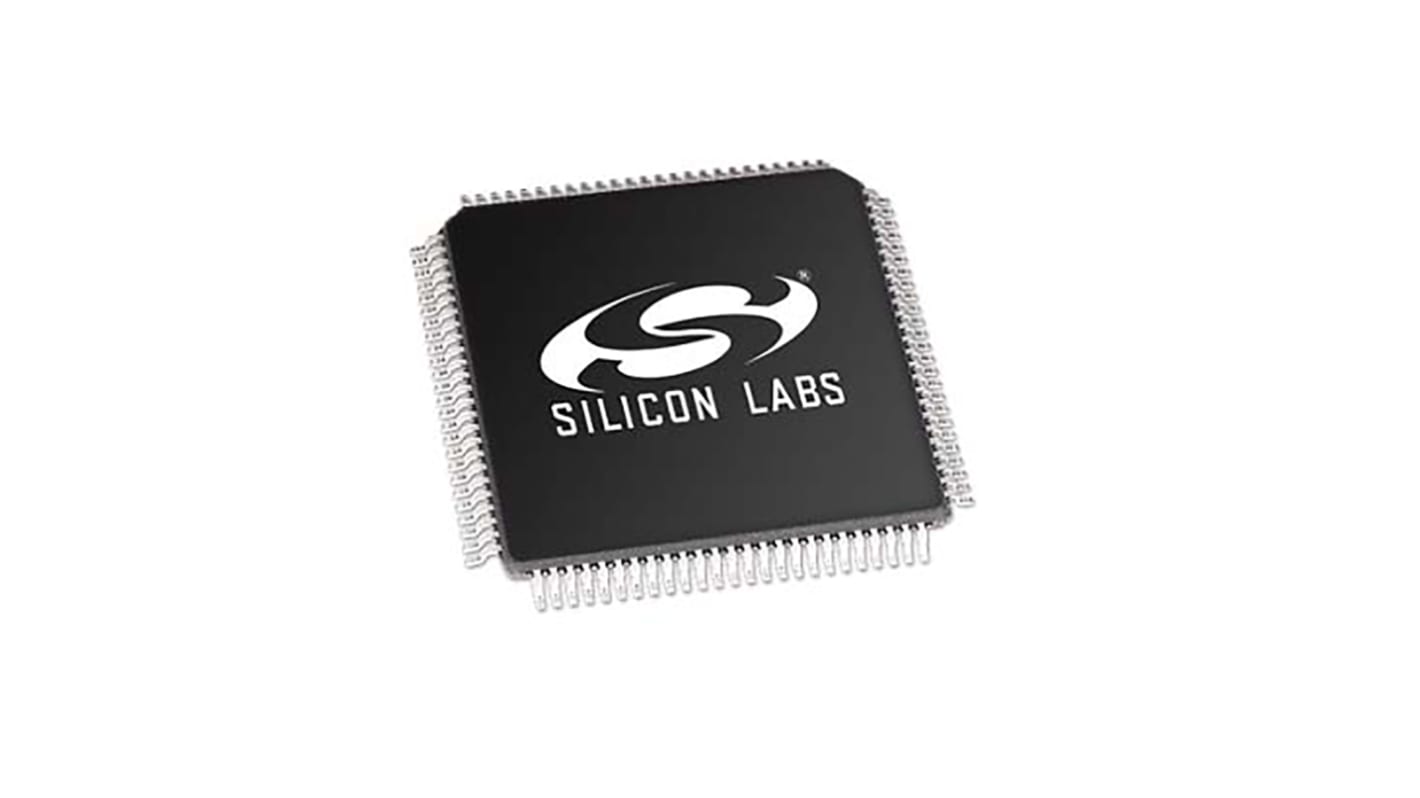

Silicon Labs, 32 bit ARM Cortex M4, EFM32 Microcontroller, 48 MHz, 256kB FLASH, 100-Pin LQFP

RS庫存編號:: 198-4621
製造零件編號:: EFM32WG980F256-B-QFP100
製造商:: Silicon Labs

Silicon Labs, 32 bit ARM Cortex M4, EFM32 Microcontroller, 48 MHz, 256kB FLASH, 100-Pin LQFP

可享批量折扣

小計（1 托盤，共 90 件）*

HK$7,144.11

訂單超過 HK$250.00 免費送貨

最後的 RS 庫存

最終 180 個，準備發貨

單位	每單位	每托盤*
90 - 90	HK$79.379	HK$7,144.11
180 - 270	HK$77.791	HK$7,001.19
360 +	HK$76.236	HK$6,861.24

* 參考價格

RS庫存編號:: 198-4621
製造零件編號:: EFM32WG980F256-B-QFP100
製造商:: Silicon Labs

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Silicon Labs
	Series	EFM32
	Product Type	Microcontroller
	Package Type	LQFP
	Mount Type	Surface
	Pin Count	100
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	256kB
	Maximum Clock Frequency	48MHz
	RAM Size	32kB
	Maximum Supply Voltage	3.8V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	DACs	12 bit
	Analogue Comparators	2
	Number of Programmable I/Os	93
	Standards/Approvals	No
	Minimum Supply Voltage	1.98V
	Instruction Set Architecture	RISC
	Automotive Standard	No
	ADCs	12 x 12 Bit
	Program Memory Type	FLASH
	Number of Timers	1

	選取全部
	品牌 Silicon Labs
	Series EFM32
	Product Type Microcontroller
	Package Type LQFP
	Mount Type Surface
	Pin Count 100
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 256kB
	Maximum Clock Frequency 48MHz
	RAM Size 32kB
	Maximum Supply Voltage 3.8V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	DACs 12 bit
	Analogue Comparators 2
	Number of Programmable I/Os 93
	Standards/Approvals No
	Minimum Supply Voltage 1.98V
	Instruction Set Architecture RISC
	Automotive Standard No
	ADCs 12 x 12 Bit
	Program Memory Type FLASH
	Number of Timers 1

Datasheet - EFM32WG

The Silicon Labs EFM32WG series 100 pin microcontroller offers unmatched performance and ultra-low power consumption in both active and sleep modes. ARM Cortex-M4 processor making it perfect for battery-powered systems and systems with high-performance, low-energy requirements.

It performs ultra-low power operation

0.65 μA current in Stop (EM3), with brown-out detection and RAM retention

63 μA/MHz in EM1

211 μA/MHz in Run mode (EM0)

It has fast wake-up time of 2 μs

Hardware cryptography (AES)

32 kB of RAM used

Silicon Labs, 32 bit ARM Cortex M4, EFM32 Microcontroller, 48 MHz, 256kB FLASH, 100-Pin LQFP
