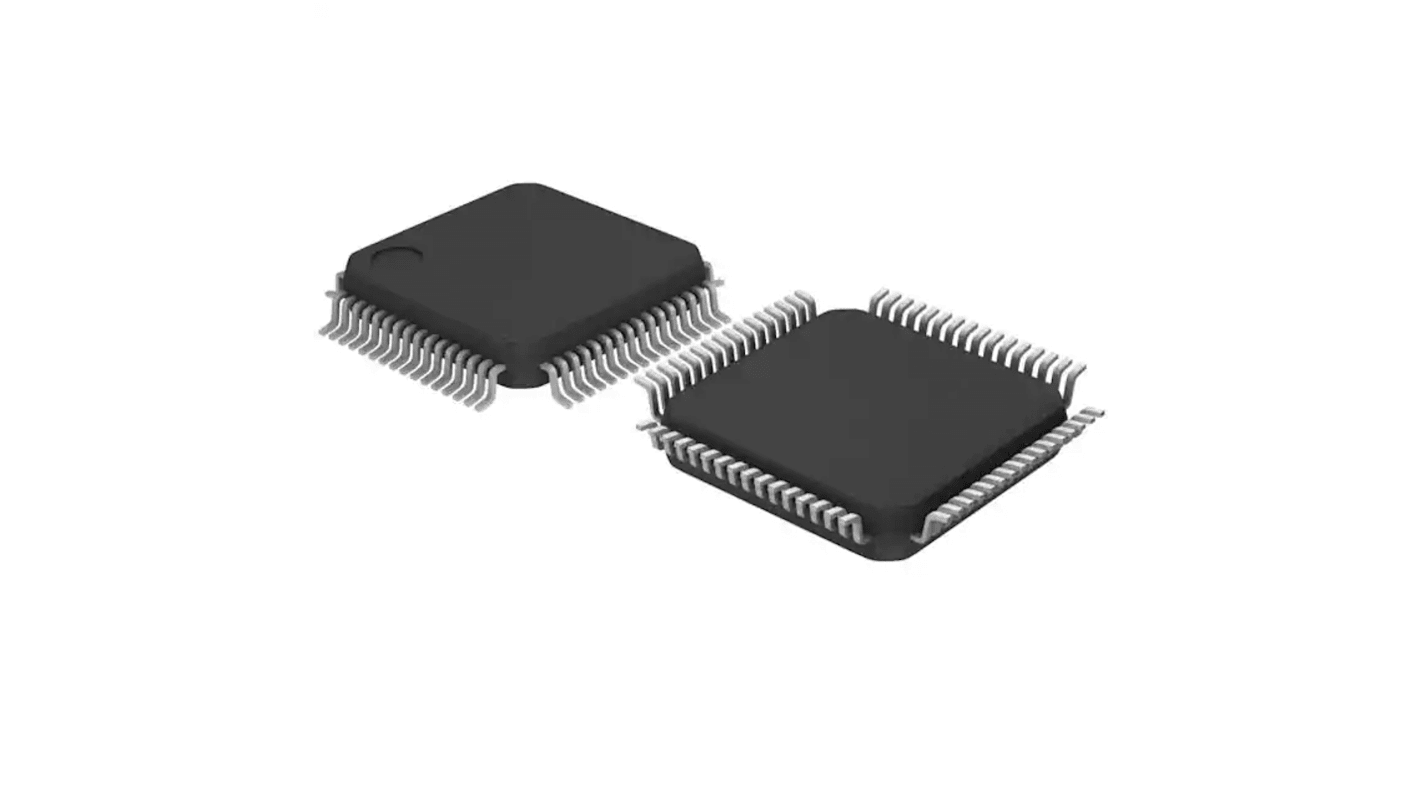

Name: Renesas Electronics, 16bit RL78, RL78/G13 Microcontroller, 32MHz, 64 kB Flash, 64-Pin LFQFP
Brand: Renesas Electronics
SKU: 234-7118
Price: 16.15 HKD
Availability: LimitedAvailability

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Renesas Electronics
	Family Name	RL78/G13
	Package Type	LFQFP
	Mounting Type	Surface Mount
	Pin Count	64
	Device Core	RL78
	Data Bus Width	16bit
	Program Memory Size	64 kB
	Maximum Frequency	32MHz
	RAM Size	4 kB
	USB Channels	0
	Number of SPI Channels	7
	Number of USART Channels	0
	Typical Operating Supply Voltage	1.6 → 5.5 V
	Number of UART Channels	3
	Number of CAN Channels	0
	Number of I2C Channels	8
	Instruction Set Architecture	CISC
	Minimum Operating Temperature	-40 °C
	Program Memory Type	Flash
	Number of PCI Channels	0
	Number of Ethernet Channels	0
	ADCs	10 x 8/10 bit
	Maximum Operating Temperature	+85 °C
	Number of ADC Units	1
	Length	10mm
	Maximum Number of Ethernet Channels	0
	Number of LIN Channels	1
	Height	1.6mm
	Width	10mm
	Dimensions	10 x 10 x 1.6mm

	選取全部
	品牌 Renesas Electronics
	Family Name RL78/G13
	Package Type LFQFP
	Mounting Type Surface Mount
	Pin Count 64
	Device Core RL78
	Data Bus Width 16bit
	Program Memory Size 64 kB
	Maximum Frequency 32MHz
	RAM Size 4 kB
	USB Channels 0
	Number of SPI Channels 7
	Number of USART Channels 0
	Typical Operating Supply Voltage 1.6 → 5.5 V
	Number of UART Channels 3
	Number of CAN Channels 0
	Number of I2C Channels 8
	Instruction Set Architecture CISC
	Minimum Operating Temperature -40 °C
	Program Memory Type Flash
	Number of PCI Channels 0
	Number of Ethernet Channels 0
	ADCs 10 x 8/10 bit
	Maximum Operating Temperature +85 °C
	Number of ADC Units 1
	Length 10mm
	Maximum Number of Ethernet Channels 0
	Number of LIN Channels 1
	Height 1.6mm
	Width 10mm
	Dimensions 10 x 10 x 1.6mm

Datasheet - R5F100LEAFB#30

The Renesas Electronics RL78/G12 family microcontroller balance the industry's lowest level of consumption current and a high performance of 43.2 DMIPS. They have an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features allows to use for the household appliances. These microcontrollers can be used in a wide variety of applications from home and consumer appliances to industrial equipment.

Ultra-low power consumption technology
2 channel direct memory access controller
Power-on reset
Low voltage detection
16-bit timer
On-chip BCD correction circuit

單位	每單位	每托盤*
160 - 160	HK$16.15	HK$2,584.00
320 - 320	HK$15.746	HK$2,519.36
480 - 960	HK$15.353	HK$2,456.48
1120 - 2400	HK$14.969	HK$2,395.04
2560 +	HK$14.594	HK$2,335.04

Renesas Electronics, 16bit RL78, RL78/G13 Microcontroller, 32MHz, 64 kB Flash, 64-Pin LFQFP

訂單超過 HK$250.00 免費送貨

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
