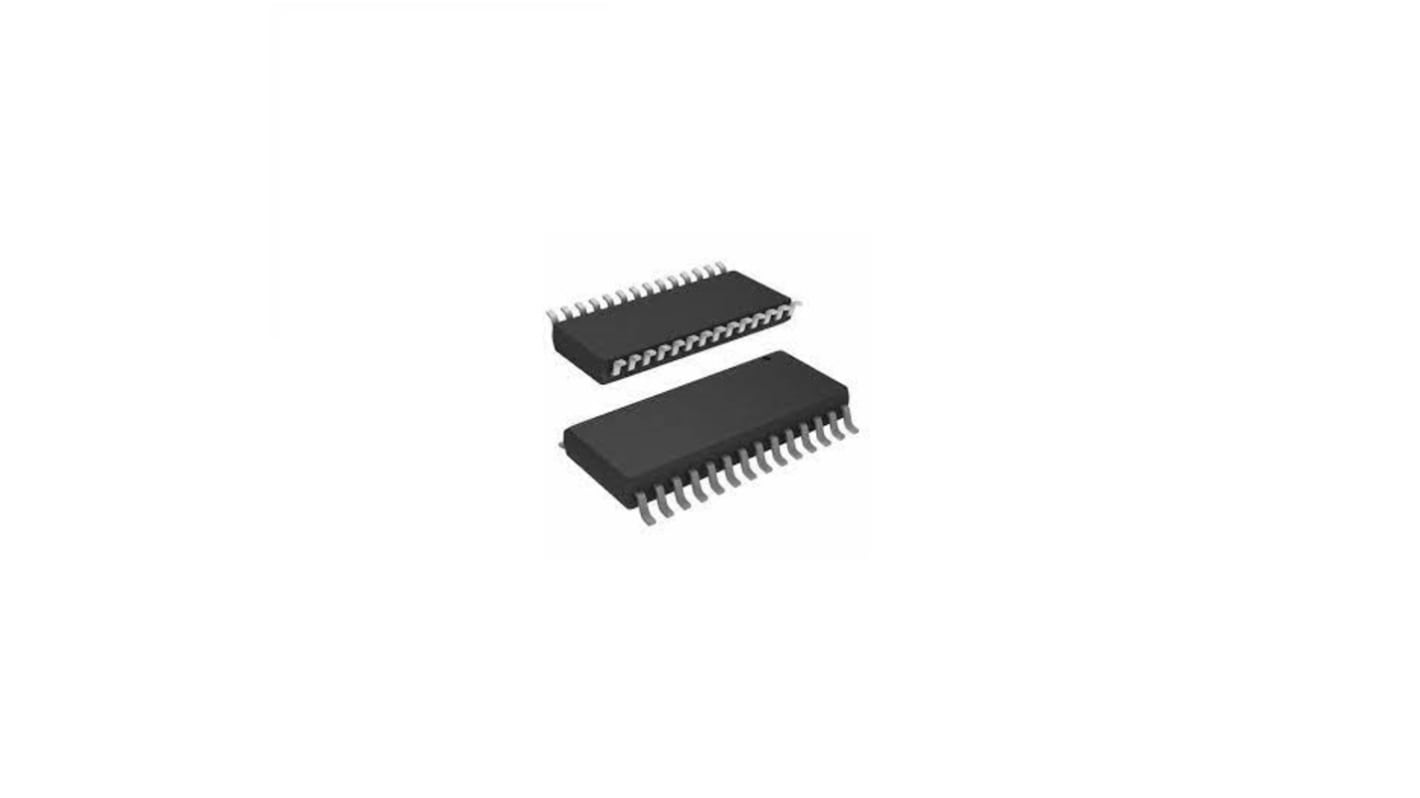

Microchip, 8 bit PIC, PIC XLP 18K Microcontroller, 64 MHz, 128kB FLASH, 28-Pin SOIC
- RS庫存編號:
- 236-8931P
- 製造零件編號:
- PIC18F27K42-I/SO
- 製造商:
- Microchip
可享批量折扣
小計 10 件 (以管提供)*
HK$189.82
訂單超過 HK$250.00 免費送貨
有庫存
- 175 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 10 - 20 | HK$18.982 |
| 25 + | HK$18.602 |
* 參考價格
- RS庫存編號:
- 236-8931P
- 製造零件編號:
- PIC18F27K42-I/SO
- 製造商:
- Microchip
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Microchip | |
| Product Type | Microcontroller | |
| Series | PIC XLP 18K | |
| Package Type | SOIC | |
| Mount Type | Surface | |
| Pin Count | 28 | |
| Device Core | PIC | |
| Data Bus Width | 8bit | |
| Program Memory Size | 128kB | |
| Maximum Clock Frequency | 64MHz | |
| RAM Size | 8kB | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| DACs | 1 x 5 Bit | |
| Maximum Operating Temperature | 85°C | |
| Width | 7.5 mm | |
| Standards/Approvals | REACH, RoHS3 | |
| Minimum Supply Voltage | 2.5V | |
| Instruction Set Architecture | RISC | |
| Program Memory Type | FLASH | |
| Automotive Standard | No | |
| ADCs | 24 x 12 Bit | |
| 選取全部 | ||
|---|---|---|
品牌 Microchip | ||
Product Type Microcontroller | ||
Series PIC XLP 18K | ||
Package Type SOIC | ||
Mount Type Surface | ||
Pin Count 28 | ||
Device Core PIC | ||
Data Bus Width 8bit | ||
Program Memory Size 128kB | ||
Maximum Clock Frequency 64MHz | ||
RAM Size 8kB | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
DACs 1 x 5 Bit | ||
Maximum Operating Temperature 85°C | ||
Width 7.5 mm | ||
Standards/Approvals REACH, RoHS3 | ||
Minimum Supply Voltage 2.5V | ||
Instruction Set Architecture RISC | ||
Program Memory Type FLASH | ||
Automotive Standard No | ||
ADCs 24 x 12 Bit | ||
The Microchip MCUs integrate a rich set of core independent peripherals, intelligent analog peripherals and large Flash/RAM/EEPROM memories. This devices also offer a host of low power features, performance improvements and design flexibility options that easily and rapidly enable the complex set of functions required by many of today's embedded control applications.
C Compiler optimized RISC architecture
Up to 64 MHz clock input
62.5 ns minimum instruction cycle
Two direct memory access (DMA) controllers
User-programmable source and destination sizes
Hardware and software-triggered data transfers
System bus arbiter with user-configurable
Priorities for scanner and DMA1/DMA2 with respect to the main line and interrupt execution
Vectored Interrupt capability
Selectable high/low priority
Fixed interrupt latency
Programmable vector table base address
31-Level deep hardware stack
