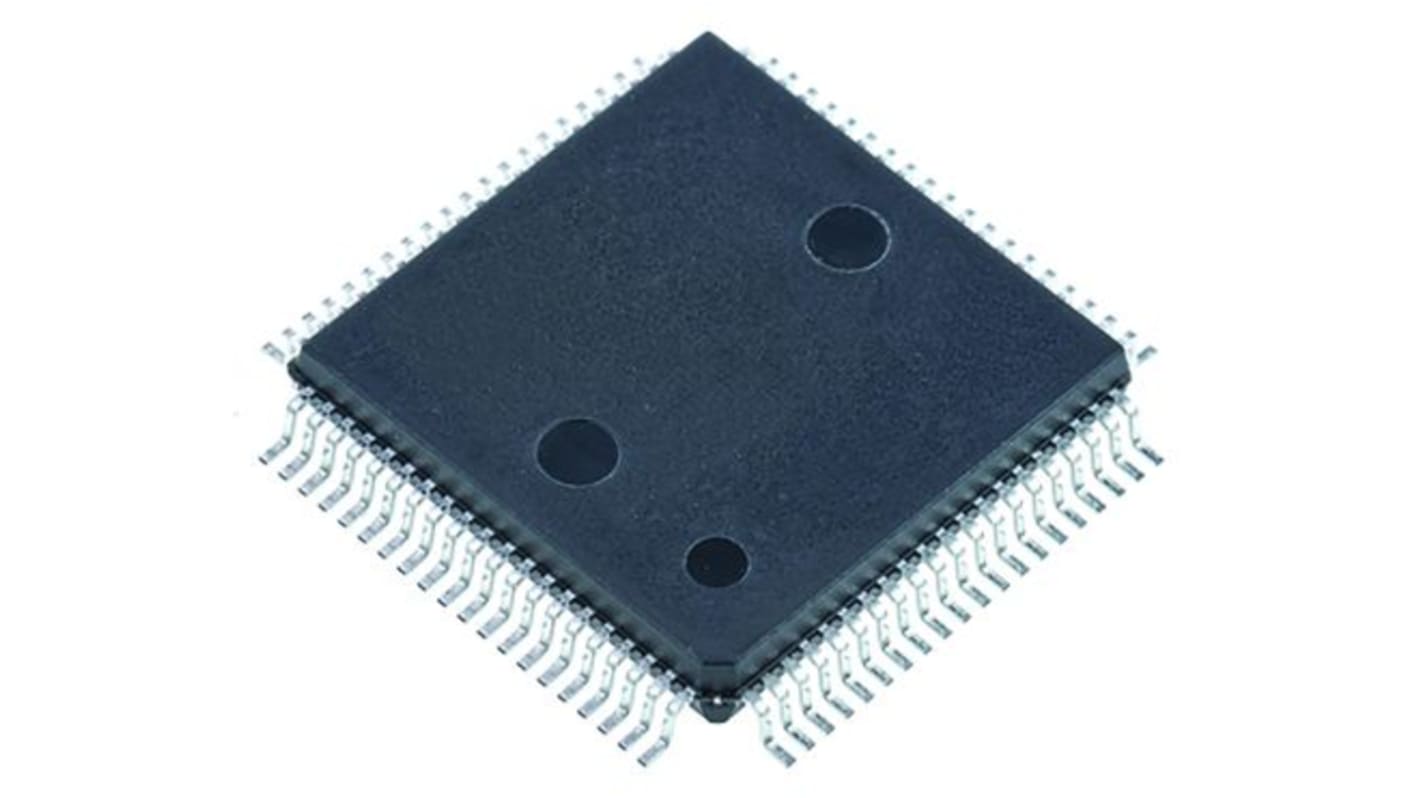

Renesas Electronics, 16bit RL78, RL78/L1A Microcontroller MCU, 24MHz, 64 kB Flash, 80-Pin LFQFP

RS庫存編號:: 261-6018
製造零件編號:: R5F11MMEAFB#30
製造商:: Renesas Electronics

Renesas Electronics, 16bit RL78, RL78/L1A Microcontroller MCU, 24MHz, 64 kB Flash, 80-Pin LFQFP

可享批量折扣

小計（1 托盤，共 119 件）*

HK$2,686.544

訂單超過 HK$250.00 免費送貨

最後的 RS 庫存

最終 119 個，準備發貨

單位	每單位	每托盤*
119 - 119	HK$22.576	HK$2,686.54
238 - 476	HK$21.898	HK$2,605.86
595 - 952	HK$21.241	HK$2,527.68
1071 - 2499	HK$20.604	HK$2,451.88
2618 +	HK$19.986	HK$2,378.33

* 參考價格

RS庫存編號:: 261-6018
製造零件編號:: R5F11MMEAFB#30
製造商:: Renesas Electronics

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Renesas Electronics
	Family Name	RL78/L1A
	Package Type	LFQFP
	Mounting Type	Surface Mount
	Pin Count	80
	Device Core	RL78
	Data Bus Width	16bit
	Program Memory Size	64 kB
	Maximum Frequency	24MHz
	RAM Size	5.5 kB
	USB Channels	0
	Number of SPI Channels	4
	Number of UART Channels	4
	Typical Operating Supply Voltage	1.8 → 3.6 V
	Number of I2C Channels	5
	Number of USART Channels	0
	Number of CAN Channels	0
	Program Memory Type	Flash
	Number of PCI Channels	0
	Number of Ethernet Channels	0
	Number of LIN Channels	0
	Height	1.7mm
	Width	12.1mm
	Dimensions	12 x 12 x 1.7mm
	Maximum Operating Temperature	+85 °C
	Number of ADC Units	1
	Length	12.1mm
	ADCs	10 x 12 bit
	Maximum Number of Ethernet Channels	0
	Instruction Set Architecture	CISC Harvard
	Minimum Operating Temperature	-40 °C

	選取全部
	品牌 Renesas Electronics
	Family Name RL78/L1A
	Package Type LFQFP
	Mounting Type Surface Mount
	Pin Count 80
	Device Core RL78
	Data Bus Width 16bit
	Program Memory Size 64 kB
	Maximum Frequency 24MHz
	RAM Size 5.5 kB
	USB Channels 0
	Number of SPI Channels 4
	Number of UART Channels 4
	Typical Operating Supply Voltage 1.8 → 3.6 V
	Number of I2C Channels 5
	Number of USART Channels 0
	Number of CAN Channels 0
	Program Memory Type Flash
	Number of PCI Channels 0
	Number of Ethernet Channels 0
	Number of LIN Channels 0
	Height 1.7mm
	Width 12.1mm
	Dimensions 12 x 12 x 1.7mm
	Maximum Operating Temperature +85 °C
	Number of ADC Units 1
	Length 12.1mm
	ADCs 10 x 12 bit
	Maximum Number of Ethernet Channels 0
	Instruction Set Architecture CISC Harvard
	Minimum Operating Temperature -40 °C

Datasheet-R5F11MMEAFB#30

COO (Country of Origin):: CN

The Renesas R5F11MMEAFB#30 is a low power 16-bit LCD microcontroller with rich analog integration. The ultra low power has enhanced analog peripherals such as 12bit A/D converters, 12bit D/A converters, comparators, high accurate rail to rail OPAMPs with switch fabrics and comes with memory up to 128Kbyte Flash. Using the smart features like DTC and ELC a lot of peripherals can be connected internally to reduce CPU workload and can save overall power consumption. This microcontroller is a 80pin LFQFP type packaged, developed especially for healthcare Bio-sensing applications such as blood glucose meter, but is suitable for many other appliances which needs low power with LCD and rich analog peripherals.

CPU= RL78 (16-bit)
Max frequency= 24 MHz
Program memory= 64 KB Flash memory
Pin count= 80

Renesas Electronics, 16bit RL78, RL78/L1A Microcontroller MCU, 24MHz, 64 kB Flash, 80-Pin LFQFP
