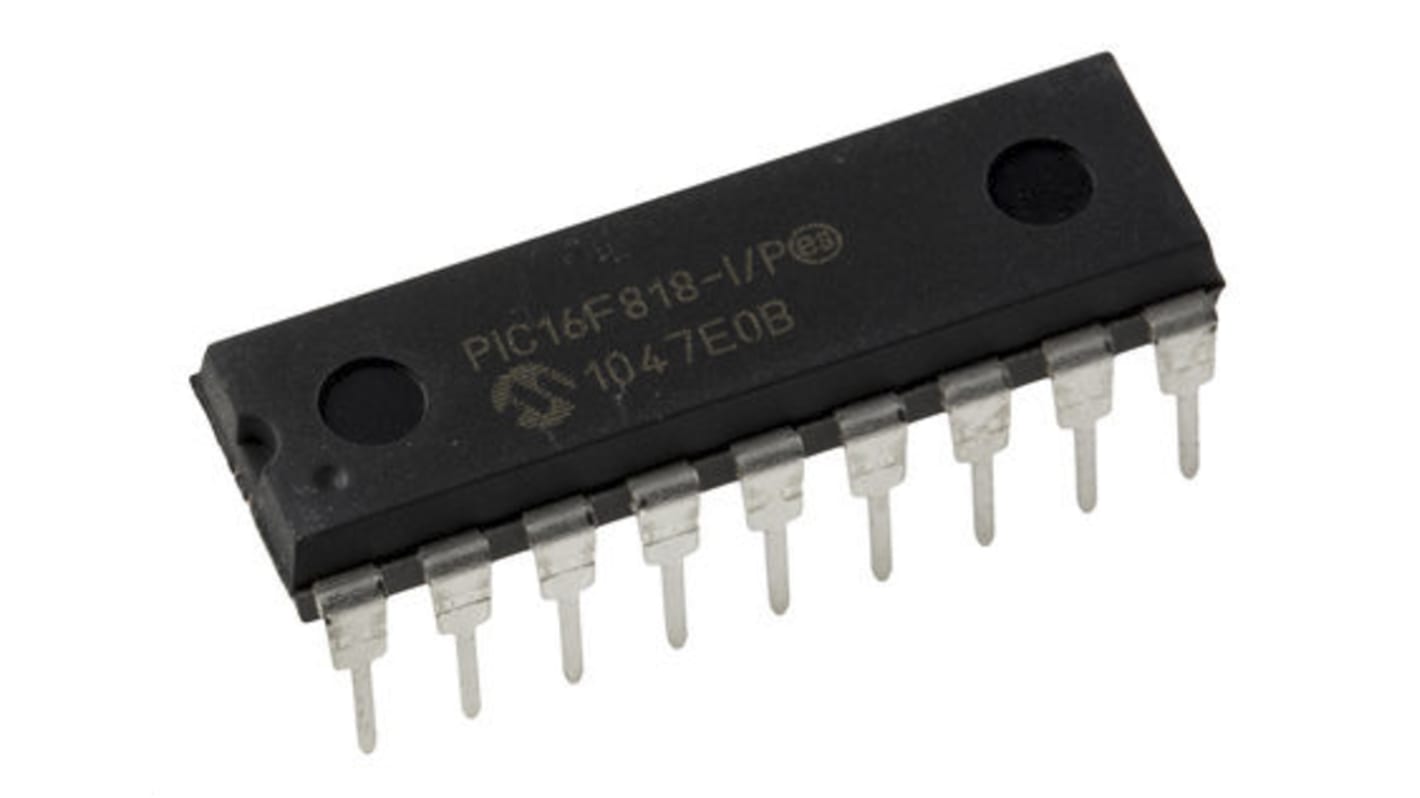

Microchip PIC16F818-I/P, 8bit PIC Microcontroller, PIC16F, 20MHz, 1.792 kB, 128 B Flash, 18-Pin PDIP
- RS庫存編號:
- 623-0471P
- 製造零件編號:
- PIC16F818-I/P
- 製造商:
- Microchip
可享批量折扣
Price 个 (以每管裝提供)**
HK$28.51
本地庫存暫不足，貨期請向RS查詢
訂單金額滿 HK$850.00 即可享受 免費 送貨服務
單位 | 每單位 |
|---|---|
| 7 - 12 | HK$27.94 |
| 13 + | HK$27.38 |
** 參考價格
- RS庫存編號:
- 623-0471P
- 製造零件編號:
- PIC16F818-I/P
- 製造商:
- Microchip
PIC16F818/819 8-Bit Microcontrollers
The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F818/819 family of microcontrollers is based upon Microchip’s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 14 Kbytes program memory and 368 bytes RAM. On board is a configurable oscillator factory calibrated to ±1% accuracy.
The PIC16F818/819 family of microcontrollers is based upon Microchip’s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 14 Kbytes program memory and 368 bytes RAM. On board is a configurable oscillator factory calibrated to ±1% accuracy.
Microcontroller Features
20 MHz Max. CPU Speed
35 Instructions
8 Level Hardware Stack
8 MHz Internal Oscillator – Selectable Frequencies 8 MHz to 31 kHz
16 I/O Pins
Power-On Reset (POR)
Brown-Out Reset (BOR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
35 Instructions
8 Level Hardware Stack
8 MHz Internal Oscillator – Selectable Frequencies 8 MHz to 31 kHz
16 I/O Pins
Power-On Reset (POR)
Brown-Out Reset (BOR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
Peripherals
5 Channel 10-bit Analogue-to-Digital Converter (ADC)
Capture, Compare, PWM (CCP) Module
Two 8-bit Timers
One 16-bit Timer
Synchronous Serial Port (SSP) with SPI and I2C
Capture, Compare, PWM (CCP) Module
Two 8-bit Timers
One 16-bit Timer
Synchronous Serial Port (SSP) with SPI and I2C
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Attribute | Value |
|---|---|
| Family Name | PIC16F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 18 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 1.792 kB, 128 B |
| Maximum Frequency | 20MHz |
| RAM Size | 128 B |
| USB Channels | 0 |
| Number of PWM Units | 1 x 10 bit |
| Number of SPI Channels | 1 |
| Number of UART Channels | 0 |
| Typical Operating Supply Voltage | 4 → 5.5 V |
| Number of I2C Channels | 1 |
| Number of CAN Channels | 0 |
| Number of USART Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 22.99 x 6.6 x 3.68mm |
| Number of LIN Channels | 0 |
| Height | 3.68mm |
| Number of PCI Channels | 0 |
| Number of Ethernet Channels | 0 |
| Program Memory Type | Flash |
| Instruction Set Architecture | RISC |
| Pulse Width Modulation | 1(10 bit) (CCP) |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Width | 6.6mm |
| Length | 22.99mm |
| ADCs | 5 x 10 bit |
