Microchip PIC18LF14K22-I/ML, 8 bit PIC, PIC18F Microcontroller, 64 MHz, 16 kB, 256B FLASH, 20-Pin QFN

RS庫存編號:: 687-9379
製造零件編號:: PIC18LF14K22-I/ML
製造商:: Microchip

Microchip PIC18LF14K22-I/ML, 8 bit PIC, PIC18F Microcontroller, 64 MHz, 16 kB, 256B FLASH, 20-Pin QFN

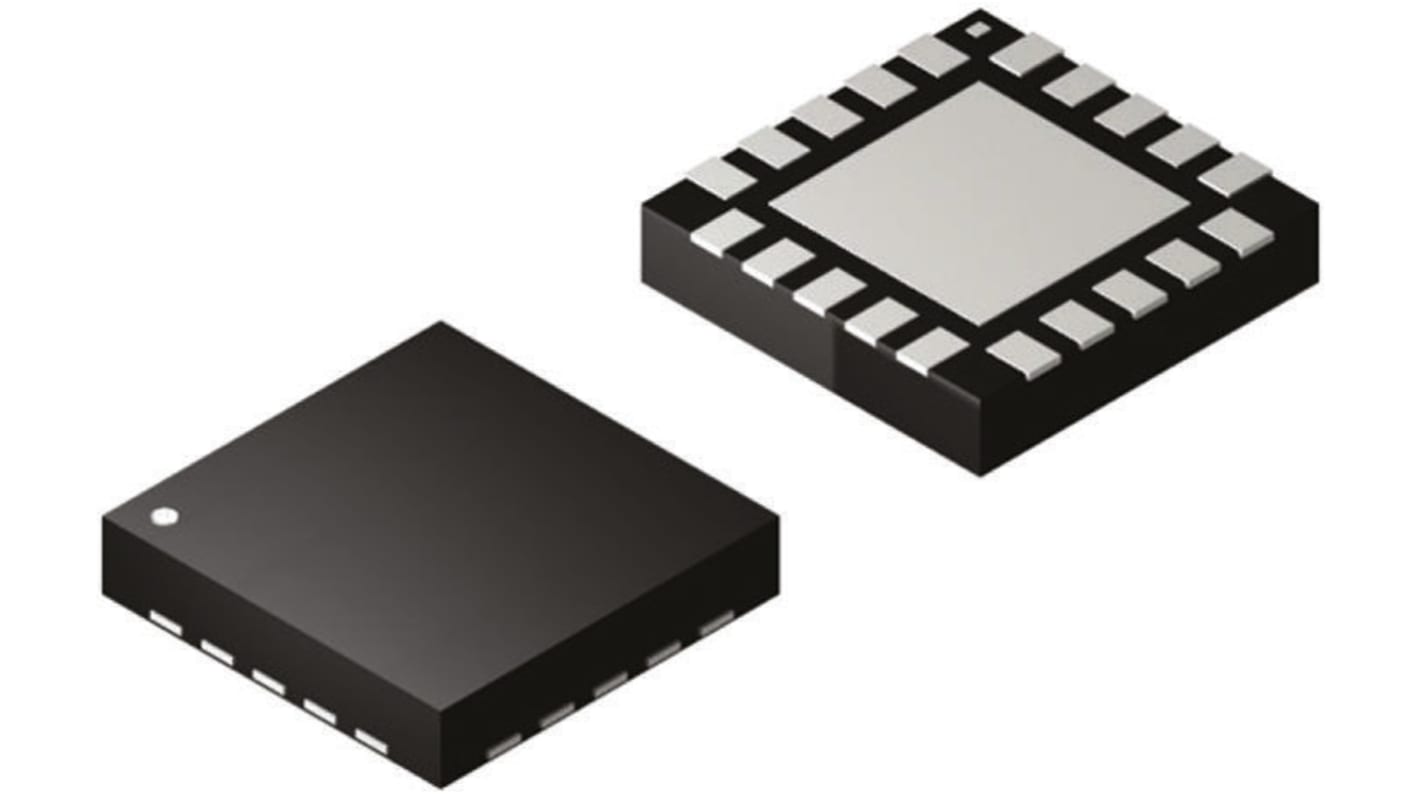

此圖片僅供參考，請參閲產品詳細資訊及規格

暫時無法供應

我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。

RS庫存編號:: 687-9379
製造零件編號:: PIC18LF14K22-I/ML
製造商:: Microchip

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Product Type	Microcontroller
	Series	PIC18F
	Package Type	QFN
	Mount Type	Surface
	Pin Count	20
	Device Core	PIC
	Data Bus Width	8bit
	Program Memory Size	16kB, 256kB
	Maximum Clock Frequency	64MHz
	RAM Size	512bit
	Maximum Supply Voltage	5.5V
	DACs	1 x 5 Bit
	Maximum Expanded Memory Size	8bit
	Number of Programmable I/Os	18
	Analogue Comparators	2
	Maximum Power Dissipation Pd	800mW
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Width	4mm
	Standards/Approvals	RoHS
	Length	4mm
	Height	0.95mm
	Minimum Supply Voltage	1.8V
	Automotive Standard	No
	Number of Timers	4
	Instruction Set Architecture	RISC
	Program Memory Type	FLASH
	ADCs	12 x 10 Bit

	選取全部
	品牌 Microchip
	Product Type Microcontroller
	Series PIC18F
	Package Type QFN
	Mount Type Surface
	Pin Count 20
	Device Core PIC
	Data Bus Width 8bit
	Program Memory Size 16kB, 256kB
	Maximum Clock Frequency 64MHz
	RAM Size 512bit
	Maximum Supply Voltage 5.5V
	DACs 1 x 5 Bit
	Maximum Expanded Memory Size 8bit
	Number of Programmable I/Os 18
	Analogue Comparators 2
	Maximum Power Dissipation Pd 800mW
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Width 4mm
	Standards/Approvals RoHS
	Length 4mm
	Height 0.95mm
	Minimum Supply Voltage 1.8V
	Automotive Standard No
	Number of Timers 4
	Instruction Set Architecture RISC
	Program Memory Type FLASH
	ADCs 12 x 10 Bit

PIC18F1xK22 8-Bit Flash Microcontrollers

The PIC18F2x1x/4x1x family of microcontrollers are based on PIC18 architecture that offers a 31 level hardware stack and 75 instructions. These MCUs feature eXtreme Low Power technology, Ideal for applications where low power consumption is vital.

Microcontroller Features

16 MIPS Max. CPU Speed

75 Instructions – 83 with Extended Instruction Set Enabled

31 Level Hardware Stack

Configurable Internal Oscillator – Selectable Frequency Range 16 MHz to 31 kHz

18 I/O Pins

Power-On Reset (POR)

Power-Up Timer (PWRT)

Oscillator Start-Up Timer (OST)

Brown-Out Reset (BOR)

Extended Watchdog Timer (WDT)

In-Circuit Serial Programming (ICSP)

In-Circuit Debug (ICD)

eXtreme Low-Power Features

Sleep Mode: 34 nA

Watchdog Timer: 460 nA

Timer1 Oscillator: 650 nA @ 32 kHz

Peripherals

10-bit Analogue-to-Digital Converter (ADC) – 12 Channels

Comparator Module

Voltage Reference Module

Three 16-bit Timers

One 8-bit Timer

One Enhanced Capture, Compare, PWM Module

Master Synchronous Serial Port (MSSP) Module with SPI and I²C

Enhanced Addressable Universal Synchronous Asynchronous Receiver Transmitter (EUSART)

SR Latch Module
