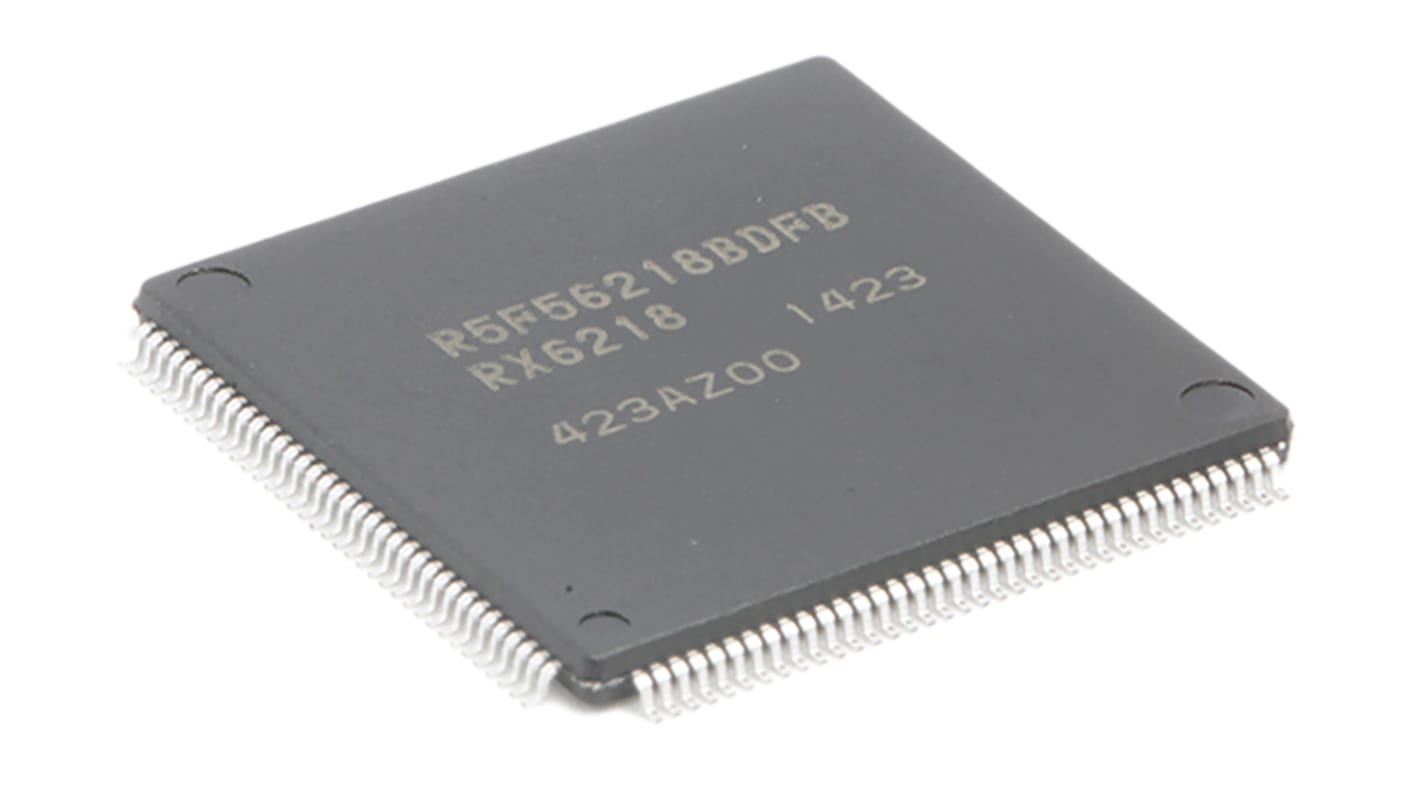

Renesas Electronics R5F56218BDFB#V0, 32bit RX Microcontroller, 100MHz, 512 kB Flash, 144-Pin LFQFP


RX621 Microcontrollers

The RX621 family of 32-bit microcontrollers features 100MHz high-speed operation and enhanced communications functions.

• 100MHz 32-bit RX core microcontroller
• Up to 512KB Flash memory
• 32-bit multiplier/divider with multiply-accumulate
• Single-precision Floating Point maths unit
• Real-Time Clock
• 4-channel DMA controller (DMACA)
• Data transfer controller (DTCa)
• Serial Communication: SPI, I²C, USB, CAN
• 14-bit Independent Watchdog Timer
• CRC Calculator
• On-chip debug and trace
• Power supply: +2.7 to +3.6Vdc
• Low-Power Modes: Sleep, All-module clock stop, Software standby, Deep software standby

Attribute Value
Family Name RX600
Package Type LFQFP
Mounting Type Surface Mount
Pin Count 144
Device Core RX
Data Bus Width 32bit
Program Memory Size 512 kB
Maximum Frequency 100MHz
RAM Size 96 kB
USB Channels 2
Number of PWM Units 1
ADC Channels 12
Number of SPI Channels 2
Typical Operating Supply Voltage 2.7 3.6 V
Length 20.1mm
Number of CAN Channels 1
Instruction Set Architecture CISC
ADC Resolution 10 bit, 12 bit
Number of I2C Channels 2
ADCs 4-ch x 10-bit, 8-ch x 12-bit
PWM Channels 36
Width 20.1mm
Number of Timers 20
Number of Ethernet Channels 1
Pulse Width Modulation 1(32 Channel) MTU2, 1(4 Channel) TMR
Number of UART Channels 6
Program Memory Type Flash
Timer Resolution 8 bit, 16 bit
Height 1.4mm
Timers 4(4 x 16 bit) CMT, 4(4 x 8 bit) TMR, 12(12 x 16 bit) MTU
Dimensions 20.1 x 20.1 x 1.4mm
Maximum Operating Temperature +85 °C
Number of ADC Units 3
Maximum Number of Ethernet Channels 1
Minimum Operating Temperature -40 °C
205 現貨庫存,可於3工作日發貨。
單價 Each (Supplied in a Tray)
HK$ 76.08
Per unit
