NXP MK22FX512VMD12, 32bit ARM Cortex M4 Microcontroller, Kinetis K2x, 120MHz, 640 kB Flash, 144-Pin MAPBGA
- RS庫存編號:
- 840-6493
- 製造零件編號:
- MK22FX512VMD12
- 製造商:
- NXP

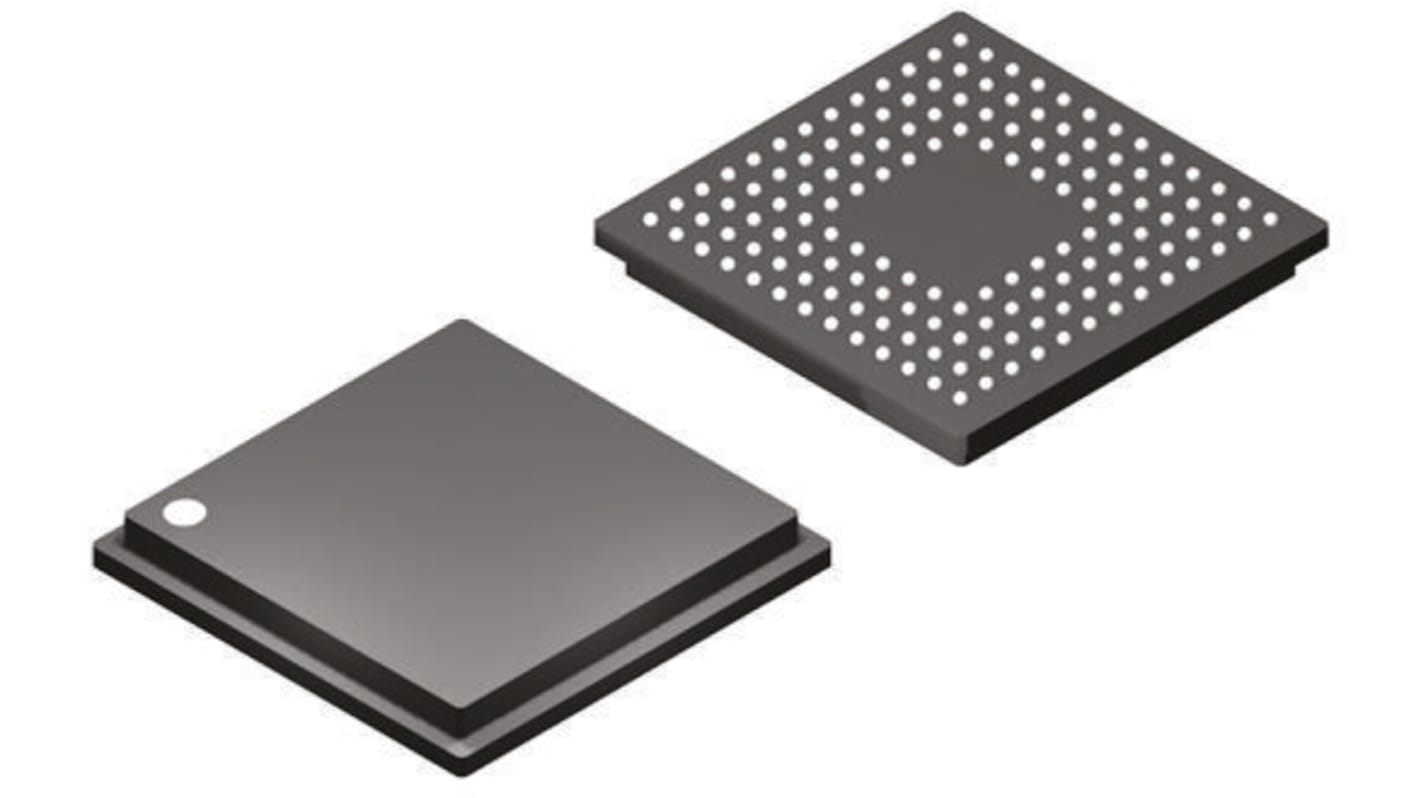

此圖片僅供參考，請參閲產品詳細資訊及規格
查看所有Microcontrollers
- RS庫存編號:
- 840-6493
- 製造零件編號:
- MK22FX512VMD12
- 製造商:
- NXP
法例與合規
產品詳細資訊
Kinetis K2x Series Microcontrollers
規格
| Attribute | Value |
| Family Name | Kinetis K2x |
| Package Type | MAPBGA |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 640 kB |
| Maximum Frequency | 120MHz |
| RAM Size | 132 kB |
| USB Channels | 1 |
| Number of PWM Units | 4 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| Number of UART Channels | 6 |
| Number of I2C Channels | 3 |
| Number of CAN Channels | 1 |
| Number of USART Channels | 0 |
| Maximum Number of Ethernet Channels | 0 |
| Dimensions | 13 x 13 x 1.7mm |
| Width | 13mm |
| Number of LIN Channels | 0 |
| Height | 1.7mm |
| ADCs | 2 x 16 bit |
| Length | 13mm |
| Maximum Operating Temperature | +105 °C |
| Number of ADC Units | 2 |
| Instruction Set Architecture | ARM |
| Minimum Operating Temperature | -40 °C |
| Number of PCI Channels | 0 |
| Number of Ethernet Channels | 0 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 2 (2)-Quad Decoder, 2 (8)-Motor Control |
