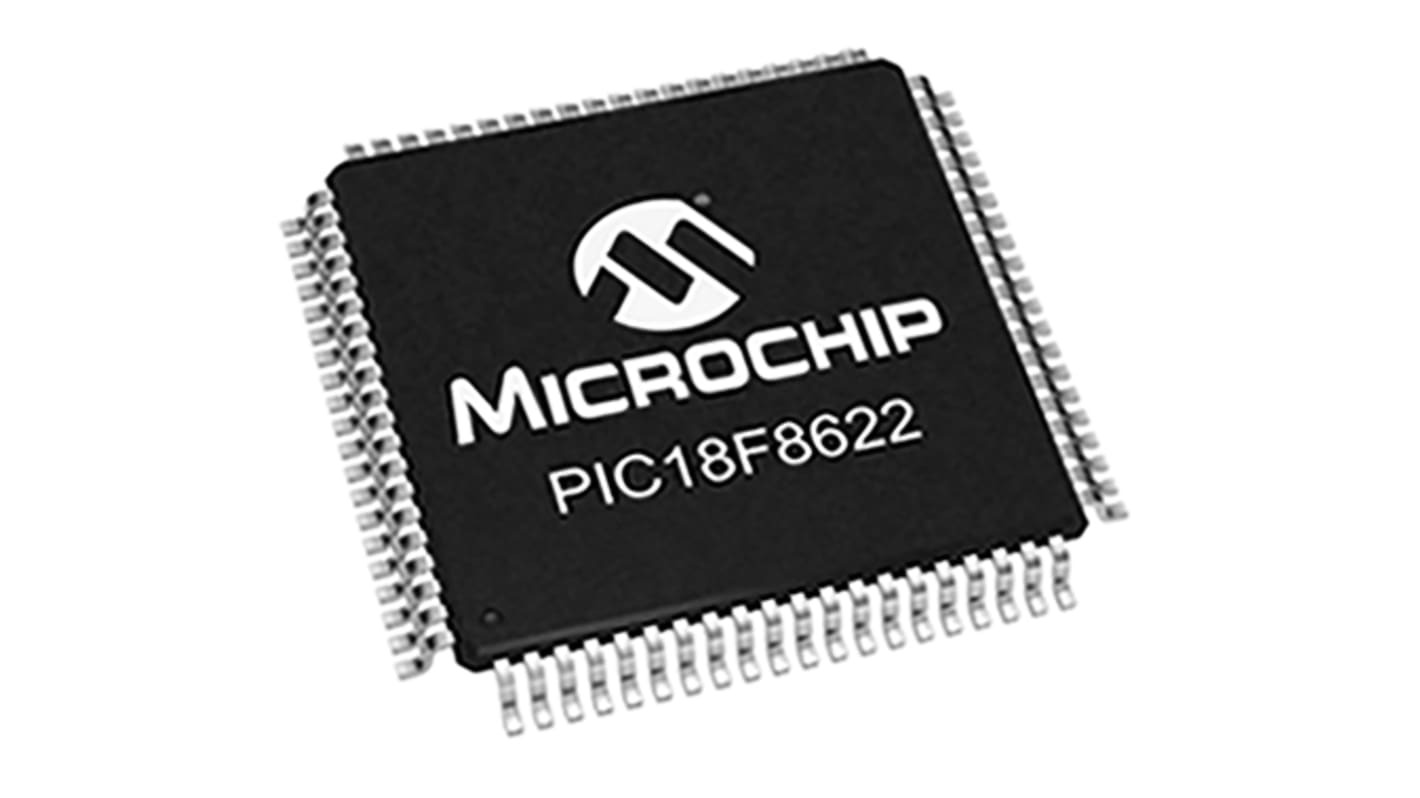

Microchip, 8 bit PIC, PIC18F8622 Microcontroller, 40 MHz, 64kB FLASH, 80-Pin TQFP

RS庫存編號:: 893-8240P
製造零件編號:: PIC18F8622-I/PT
製造商:: Microchip

Microchip, 8 bit PIC, PIC18F8622 Microcontroller, 40 MHz, 64kB FLASH, 80-Pin TQFP

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計 30 件 (以盤裝提供)*

HK$2,934.00

訂單超過 HK$250.00 免費送貨

有庫存

3 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
30 - 59	HK$97.80
60 +	HK$95.84

* 參考價格

RS庫存編號:: 893-8240P
製造零件編號:: PIC18F8622-I/PT
製造商:: Microchip

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Series	PIC18F8622
	Product Type	Microcontroller
	Package Type	TQFP
	Mount Type	Surface
	Pin Count	80
	Device Core	PIC
	Data Bus Width	8bit
	Program Memory Size	64kB
	Maximum Clock Frequency	40MHz
	RAM Size	3.94kB
	Maximum Supply Voltage	5.5V
	Maximum Power Dissipation Pd	1W
	Minimum Operating Temperature	-40°C
	Analogue Comparators	2
	Number of Programmable I/Os	24
	Maximum Expanded Memory Size	64kB
	Maximum Operating Temperature	85°C
	Height	1.05mm
	Standards/Approvals	RoHS
	Width	12 mm
	Length	12mm
	Minimum Supply Voltage	1.8V
	Program Memory Type	FLASH
	ADCs	16 x 10 Bit
	Number of Timers	5
	Automotive Standard	No
	Instruction Set Architecture	Modified Harvard

	選取全部
	品牌 Microchip
	Series PIC18F8622
	Product Type Microcontroller
	Package Type TQFP
	Mount Type Surface
	Pin Count 80
	Device Core PIC
	Data Bus Width 8bit
	Program Memory Size 64kB
	Maximum Clock Frequency 40MHz
	RAM Size 3.94kB
	Maximum Supply Voltage 5.5V
	Maximum Power Dissipation Pd 1W
	Minimum Operating Temperature -40°C
	Analogue Comparators 2
	Number of Programmable I/Os 24
	Maximum Expanded Memory Size 64kB
	Maximum Operating Temperature 85°C
	Height 1.05mm
	Standards/Approvals RoHS
	Width 12 mm
	Length 12mm
	Minimum Supply Voltage 1.8V
	Program Memory Type FLASH
	ADCs 16 x 10 Bit
	Number of Timers 5
	Automotive Standard No
	Instruction Set Architecture Modified Harvard

PIC18F8527/8622/8627/8722 8-Bit Microcontrollers

The PIC18F Microcontrollers from Microchip are the most capable 8-bit devices within Microchip’s offer. Available within the range is CAN, LIN and Ethernet capability as part of a comprehensive range of peripherals to meet the needs of embedded applications and versions featuring XLP (Extreme Low-Power) Technology for where power consumption is a key consideration.

The Microchip PIC18F8527/8622/8627/8722 family of Microcontrollers are 8-bit devices based upon Microchip’s PIC18 architecture and includes XLP (eXtreme Low Power) technology.

Microcontroller Features

C Compiler Optimized Architecture

Self-Programmable under Software Control

Priority Levels for Interrupts

8 x 8 Single-Cycle Hardware Multiplier

In-Circuit Serial Programming™ (ICSP™) via Two Pins

In-Circuit Debug (ICD) via Two Pins

Wide Operating Voltage Range: 2.0V to 5.5V

Programmable Brown-out Reset (BOR) with Software Enable Option

Extended Watchdog Timer (WDT)

Flexible Oscillator Structure

Power Management Features

Run: CPU On, Peripherals On

Idle: CPU Off, Peripherals On

Sleep: CPU Off, Peripherals Off

Ultra Low 50 nA Input Leakage

Run mode Currents Down to 25 μA Typical

Idle mode Currents Down to 6.8 μA Typical

Sleep mode Current Down to 120 nA Typical

Timer1 Oscillator: 900 nA, 32 kHz, 2V

Watchdog Timer: 1.6 μA, 2V Typical

Two-Speed Oscillator Start-up

Peripheral Features

High-Current Sink/Source 25 mA/25 mA

Three Programmable External Interrupts

Four Input Change Interrupts

Three Enhanced Capture/Compare/PWM (ECCP) modules

Two Capture/Compare/PWM (CCP) modules

Master Synchronous Serial Port (MSSP) module - supports 3-Wire SPI (all 4 modes) and I2C™

Enhanced Addressable USART module Block (no external crystal required)

10-Bit Analogue-to-Digital Converter – 12 or 16 channels depending on model

Dual Analogue Comparators with Input Multiplexing

Programmable 16-Level High/Low-Voltage Detection (HLVD) module
