Microchip, 8 bit PIC, PIC16F18344 Microcontroller, 32 MHz, 7kB FLASH, 20-Pin PDIP

RS庫存編號:: 916-3759
製造零件編號:: PIC16F18344-I/P
製造商:: Microchip

Microchip, 8 bit PIC, PIC16F18344 Microcontroller, 32 MHz, 7kB FLASH, 20-Pin PDIP

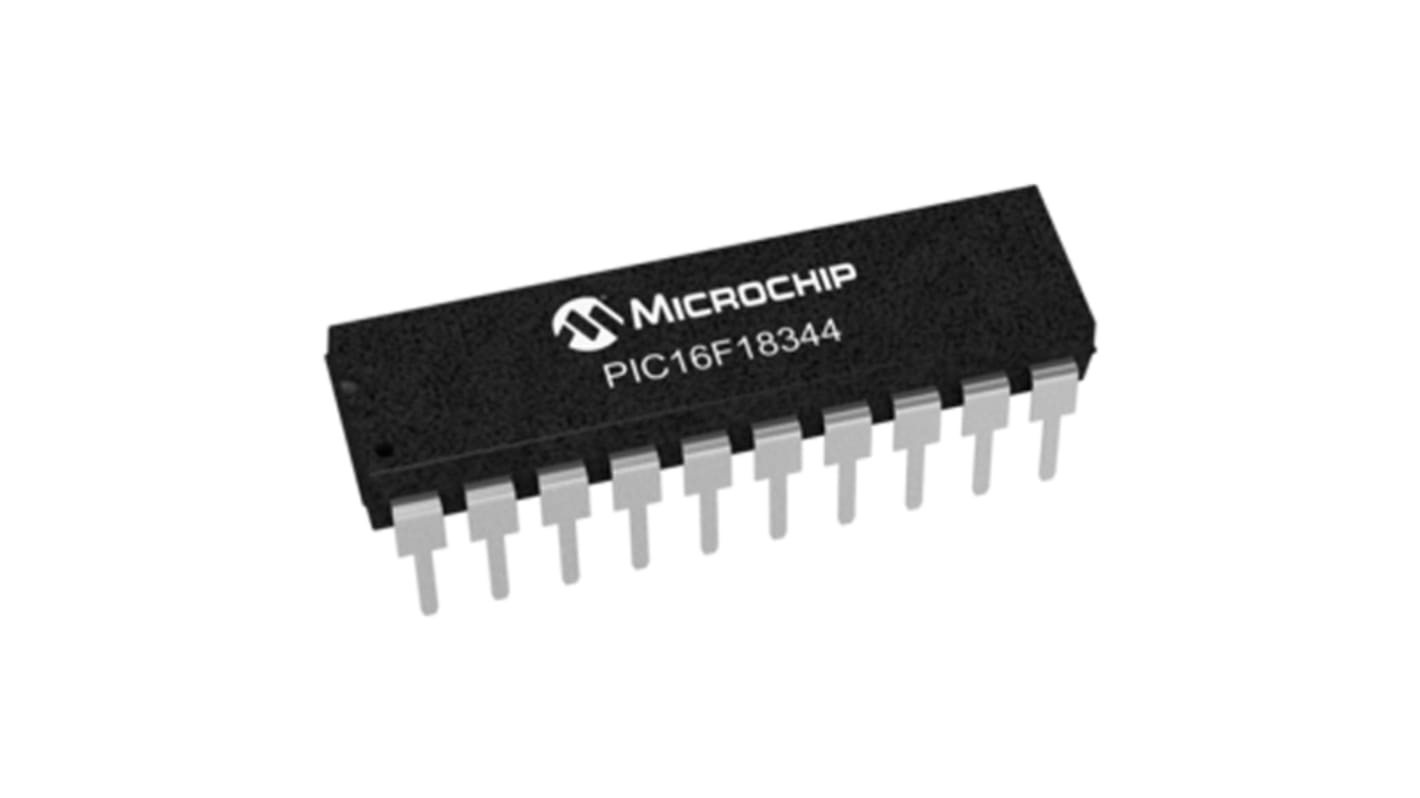

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 包，共 5 件）*

HK$71.40

訂單超過 HK$250.00 免費送貨

有庫存

100 件準備從其他地點送貨
加上 520 件從 2025年12月17日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每包*
5 - 5	HK$14.28	HK$71.40
10 +	HK$14.00	HK$70.00

* 參考價格

RS庫存編號:: 916-3759
製造零件編號:: PIC16F18344-I/P
製造商:: Microchip

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Product Type	Microcontroller
	Series	PIC16F18344
	Package Type	PDIP
	Mount Type	Through Hole
	Pin Count	20
	Device Core	PIC
	Data Bus Width	8bit
	Interface Type	EUSART, SPI, I2C
	Program Memory Size	7kB
	Maximum Clock Frequency	32MHz
	RAM Size	512bit
	Maximum Supply Voltage	5.5V
	DACs	1 x 5 Bit
	Number of Programmable I/Os	18
	Analogue Comparators	2
	Minimum Operating Temperature	-40°C
	Maximum Power Dissipation Pd	800mW
	Maximum Operating Temperature	85°C
	Standards/Approvals	No
	Height	5.33mm
	Width	7.11 mm
	Length	26.92mm
	Minimum Supply Voltage	1.8V
	Number of Timers	7
	ADCs	17 x 10 Bit
	Program Memory Type	FLASH
	Automotive Standard	No
	Instruction Set Architecture	RISC

	選取全部
	品牌 Microchip
	Product Type Microcontroller
	Series PIC16F18344
	Package Type PDIP
	Mount Type Through Hole
	Pin Count 20
	Device Core PIC
	Data Bus Width 8bit
	Interface Type EUSART, SPI, I2C
	Program Memory Size 7kB
	Maximum Clock Frequency 32MHz
	RAM Size 512bit
	Maximum Supply Voltage 5.5V
	DACs 1 x 5 Bit
	Number of Programmable I/Os 18
	Analogue Comparators 2
	Minimum Operating Temperature -40°C
	Maximum Power Dissipation Pd 800mW
	Maximum Operating Temperature 85°C
	Standards/Approvals No
	Height 5.33mm
	Width 7.11 mm
	Length 26.92mm
	Minimum Supply Voltage 1.8V
	Number of Timers 7
	ADCs 17 x 10 Bit
	Program Memory Type FLASH
	Automotive Standard No
	Instruction Set Architecture RISC

PIC16F18324/18344 8-Bit Microcontrollers

PIC16F18324/18344 microcontrollers feature analogue, core-independent peripherals and communication peripherals, combined with Extreme Low Power (XLP) for wide range of general purpose and low power MCU applications. The Peripheral Pin Select (PPS) functionality enables pin mapping when using the digital peripherals (CLC, CWG, CCP, PWM and communications) to add flexibility to the application design.

Enhanced mid-range core with 49 Instruction, 16 stack levels

7KB Flash program memory with self-read/write capability

256B EEPROM

IDLE and DOZE low-power modes

Peripheral Module Disable (PMD)

Peripheral Pin Select (PPS)

2 x 10-bit PWMs

4 x Capture, compare, PWM (CCP)

2 x Complementary waveform generator (CWG)

Numerically controlled oscillator (NCO)

4x Configurable logic controller (CLC)

15-channel 10-bit ADC (21-channel on PIC16F18344)

5-bit DAC

2 x Comparator

SPI/I2C and EUSART Interface

4 x 8-bit timers and 3 x 16-bit timer

Extended Watchdog Timer (WDT)

Enhanced power-on/off-reset

Low-power brown-out reset and programmable brown-out reset

In-circuit serial programming (ICSP)
