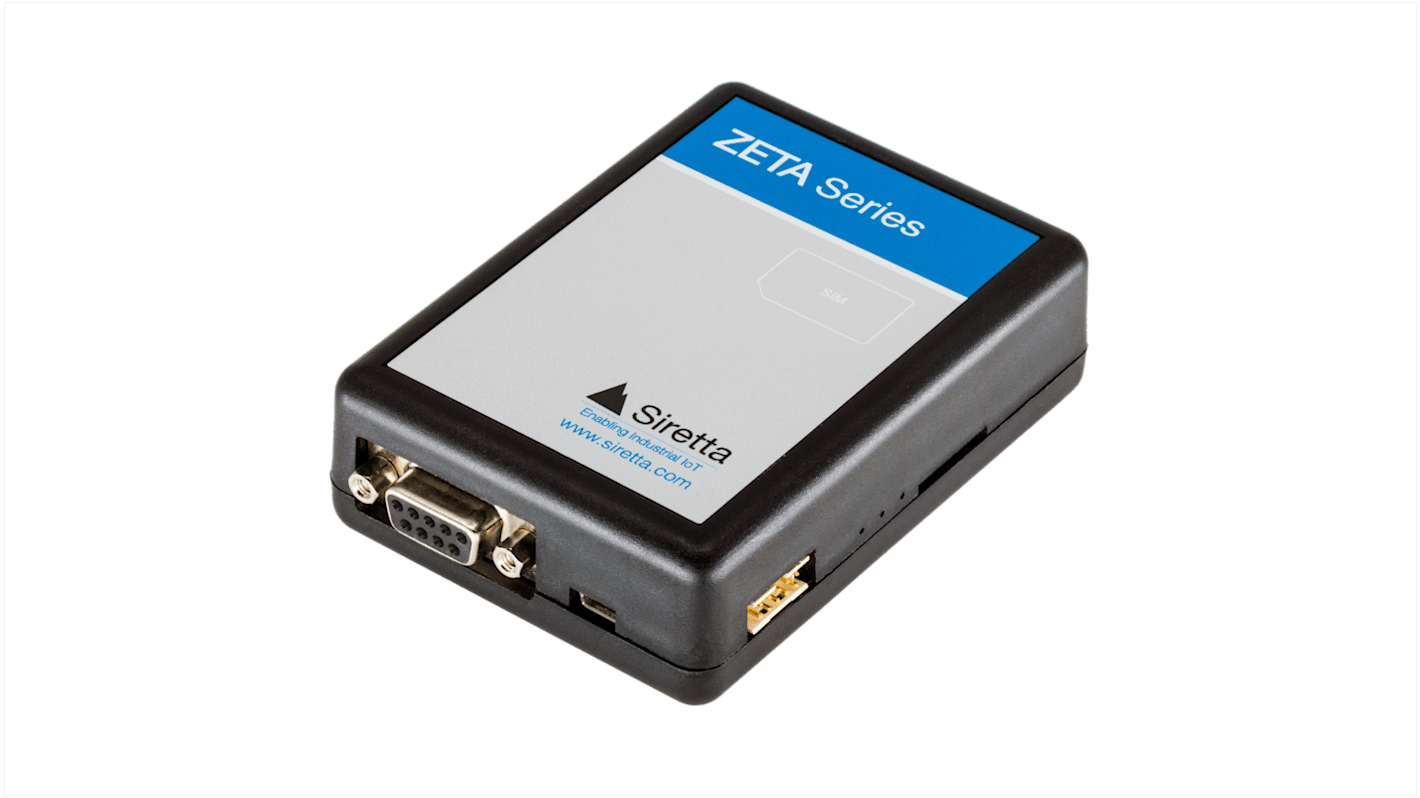

The ZETA-N2-GPRS is an industrial modem designed for connecting equipment to the 2G / GSM cellular network. It has a global coverage quadband GPRS class 10 cellular engine offering CSD fall back. The device offers a high level of functionality in a compact plug and play housing and provides RS232 & USB serial data interfaces in addition to a 10-way GPIO connector which offers a secondary TTL serial port, general purpose IO and an ADC. It is ideal for integrating in to a wide range of IoT applications that require reliable and stable data connectivity
Features & Benefits
4 Bands GSM/GPRS: 850/900/1800/1900MHz SMS text and PDU message mode SIM Access Profile SIM Application Tool Kit 3GPP TS 51.014 Control via standard AT commands 3GPP TS7.005.27.007 Extended AT command set Serial port multiplexer 3GPP TS27.010 Embedded UDP/TCP/FTP/SMTP stack
Physical Interfaces
1 x RS232 serial port interface (5-wire) 1 x USB 2.0 FS 1 x RJ12 power connection (5 - 42V) Nominal supply 12V Power on & power off control 1 x SMA female cellular antenna connector 1 x SIM card reader (push-push) 3V, 1.8V 5 x GPIO (Input 0-42V, Output 0-3.3V) 1 x ADC (0-42V) 1 x RS232 secondary serial port (3-wire TTL) External LED status indicators
Applications
Access Control Systems Car Parking Payment Vending Machines Agriculture Tank Monitoring Alarm Panels Dialup Cellular Connectivity Automatic Meter Reading
Certifications
CE UKCA RoHS
