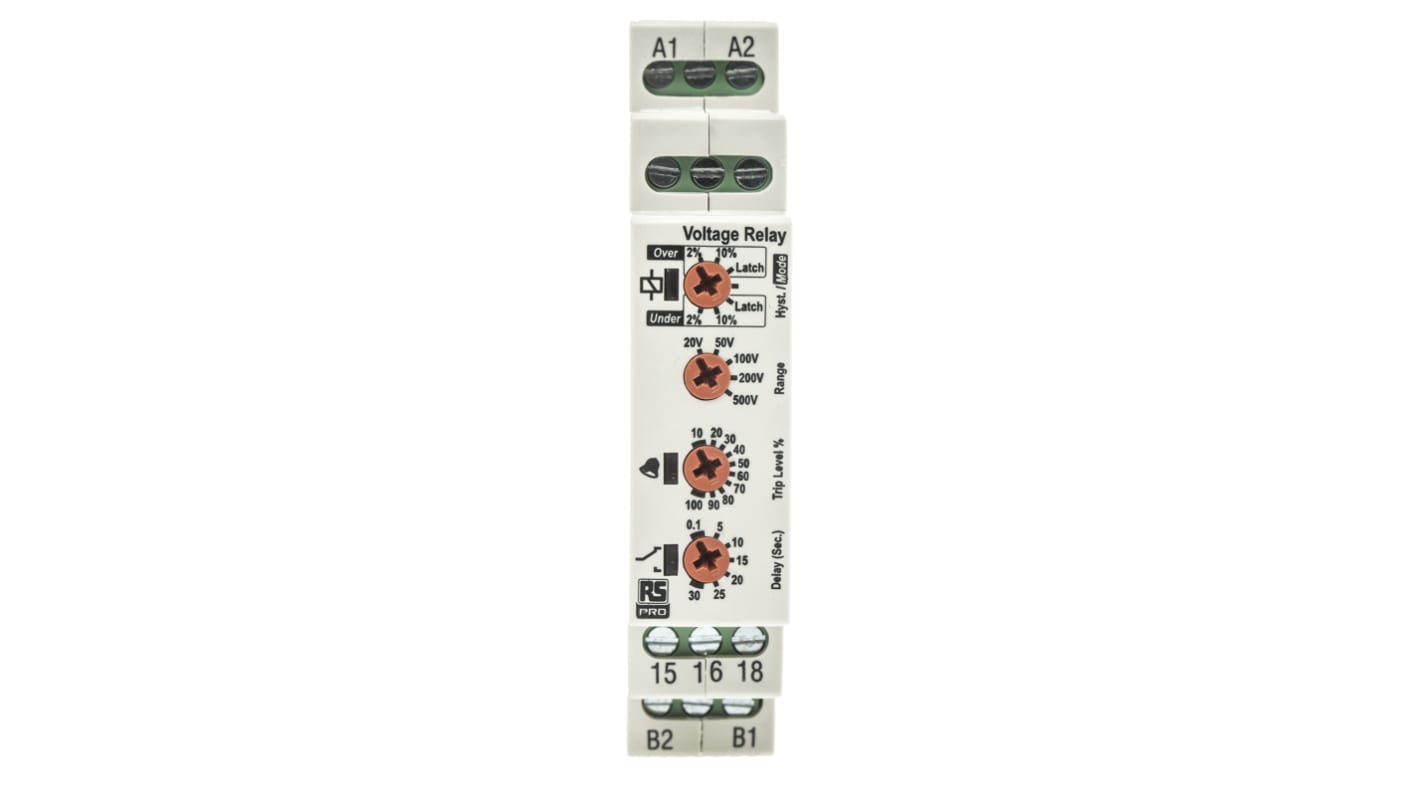

RS PRO Voltage Monitoring Relay, 1 Phase, SPDT, Maximum of 500 V, DIN Rail

查看所有Monitoring Relays
可享批量折扣

小計（1 件）*

HK$1,097.93

Add to Basket
選擇或輸入數量
有庫存
  • 31 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 12HK$1,097.93
13 - 64HK$1,054.01
65 +HK$867.45

* 參考價格

RS庫存編號:
102-6133
製造商:
RS PRO
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

RS PRO

Monitoring Application

Voltage

Electrical Phase

1

Contact Configuration

SPDT

Voltage Sensing Range

Maximum of 500 V

Voltage Sensitivity

Overvoltage, Undervoltage

Mounting Type

DIN Rail

Time Delay

0.1 → 30s

Frequency Sensing Range

48 → 63Hz

Series

L

Number of Poles

1

Maximum Voltage Sensed

500V

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+60°C

Terminal Type

Screw

Dimensions

17.5 x 66.5 x 89mm

Width

17.5mm

Height

89mm

Operating Temperature Range

+60°C

Length

66.5mm

COO (Country of Origin):
GB

RS PRO Voltage Monitoring Relay With SPDT Contacts, 1 Phase, Overvoltage, Undervoltage


Use this monitoring relay from RS PRO to trip a circuit breaker in the event of undervoltage or overvoltage. You can adjust the minimum and maximum levels within a range of 50 to 500 V, making it easy to protect a range of equipment from damage.
To prevent momentary dips in voltage from tripping the circuit breaker, you can add a time delay of between 0.1 and 30 seconds. For ease of use, the relay has a green LED light that clearly indicates the supply status.

Features and Benefits


• SPDT (Single Pole Double Throw) contact configuration
• Dimensions of 66.5 (length) x 17.5 (width) x 89 mm (height)
• One phase
• Frequency sensing range of 48 to 63 Hz
• Operating temperature range of -20°C to +60°C
• Voltage sensing range of 50 to 500 V
• Voltage monitoring application
• DIN rail mounting type
• One pole
• Meets CE, EMC (electromagnetic compatibility), EN 61000-6 standards
• Supply voltage of 24 to 230 V AC/DC
• Screw terminal type
• Time delay of 0.1 to 30 s
• Overvoltage and undervoltage sensitivity
