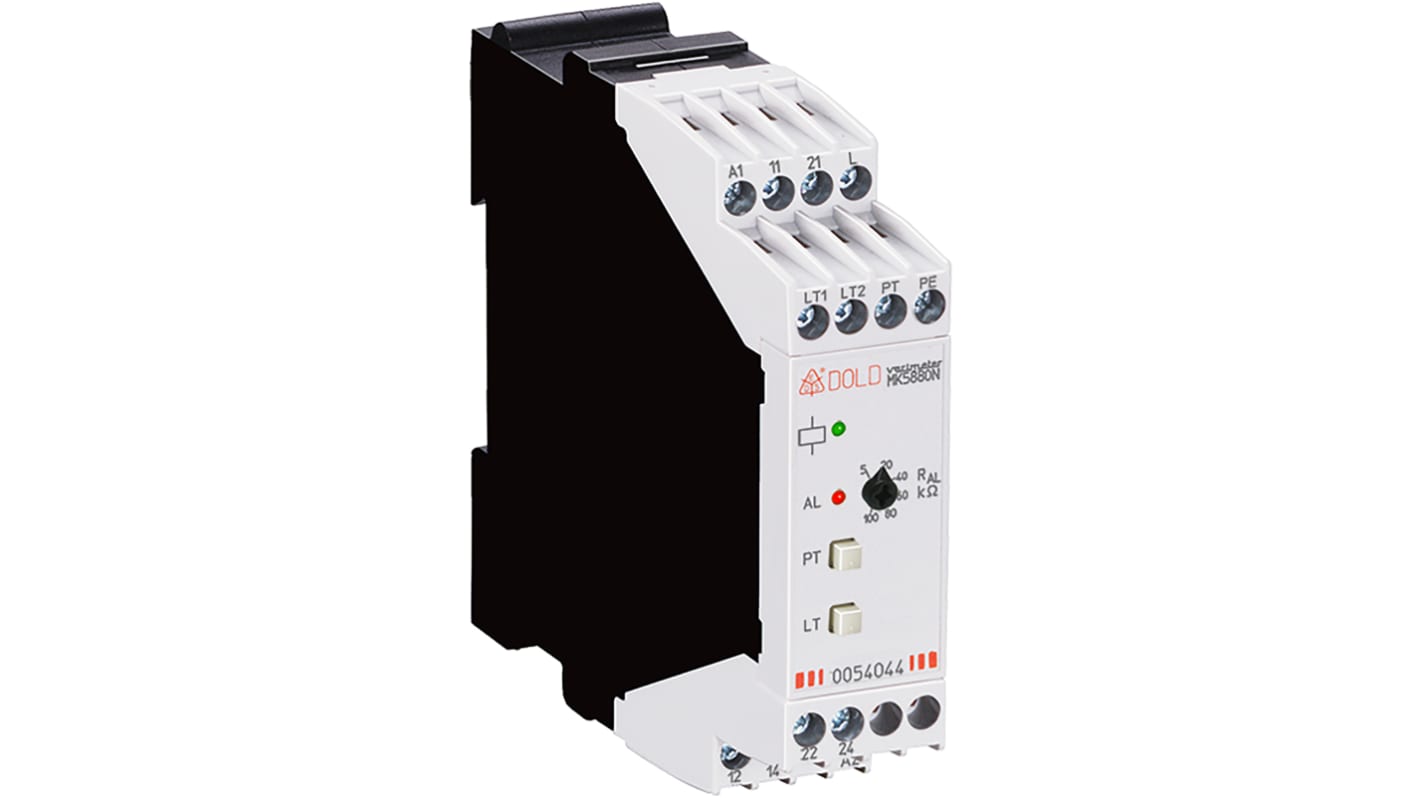

Dold Insulation Monitoring Relay, 1, 3 Phase, DPDT, 0 → 500V ac, DIN Rail

查看所有Monitoring Relays

小計（1 件）*

HK$2,267.53

Add to Basket
選擇或輸入數量
暫時缺貨
  • 從 2026年1月15日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$2,267.53

* 參考價格

RS庫存編號:
181-2773
製造零件編號:
MK5880N.12 DC24V 5-100kOhm
製造商:
Dold
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Dold

Monitoring Application

Insulation

Electrical Phase

1, 3

Contact Configuration

DPDT

Voltage Sensing Range

0 → 500V ac

Mounting Type

DIN Rail

Series

MK5880N

Width

22.5mm

Maximum Operating Temperature

+60°C

Length

97mm

Minimum Voltage Sensed

0V ac

Dimensions

97 x 22.5 x 90mm

Operating Temperature Range

+60°C

Maximum Voltage Sensed

500V ac

Height

90mm

Minimum Operating Temperature

-20°C

Terminal Type

Screw

COO (Country of Origin):
DE
For single and 3-phase AC-systems up to 0 ... 500 V and 10 ... 1000 Hz
Monitors also disconnected voltage systems
Adjustable tripping value RALof 5 ... 100 kΩ
De-energized on trip
Auxiliary voltage, measuring circuit and output contacts are galvanically separated
Manual and auto reset
With test and reset button
Connections for external test and reset buttons possible
LED indicators for operation and alarm
2 changeover contacts
MK 5880N/200 with additional pre warning
adjustable pre warning value 10 kΩ ... 5 MΩ
1 output relay for alarm and 1 for pre-warning
MH 5880/500: similar to MK 5880N but with galvanic separated analogue output and 11 step LED chain for the actual insulation value
Wire connection: also 2 x 1.5 mm2 stranded ferruled, or
2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4
As option with pluggable terminal blocks for easy exchange of devices
with screw terminals
or with cage clamp terminals
