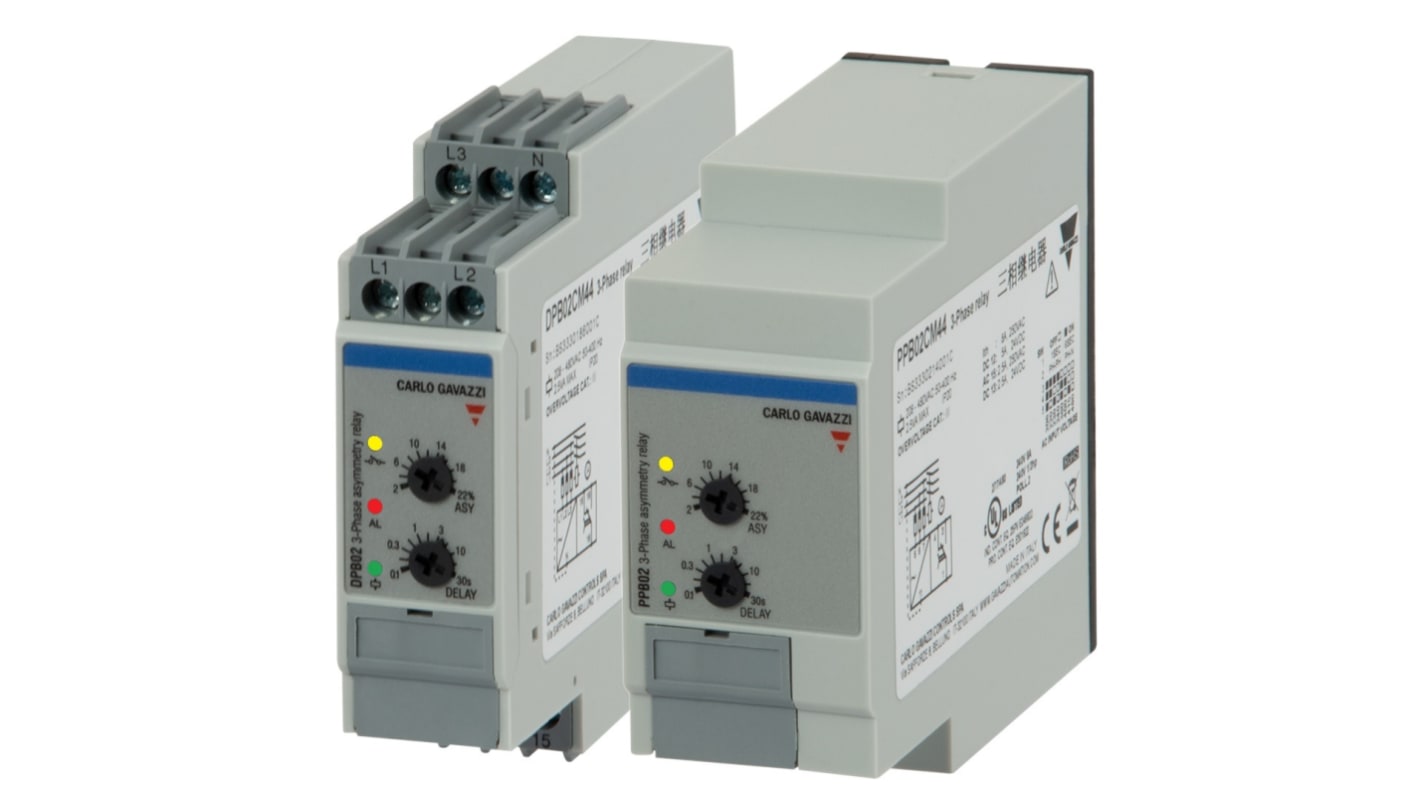

Carlo Gavazzi Voltage Monitoring Relay, 3 Phase, SPDT, Plug In

RS庫存編號:: 209-8602
製造零件編號:: PPB02CM44
製造商:: Carlo Gavazzi

Carlo Gavazzi Voltage Monitoring Relay, 3 Phase, SPDT, Plug In

小計（1 件）*

HK$1,900.00

訂單超過 HK$250.00 免費送貨

有庫存

4 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$1,900.00

* 參考價格

RS庫存編號:: 209-8602
製造零件編號:: PPB02CM44
製造商:: Carlo Gavazzi

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Carlo Gavazzi
	Monitoring Application	Voltage
	Electrical Phase	3
	Contact Configuration	SPDT
	Voltage Sensitivity	Overvoltage, Undervoltage
	Mounting Type	Plug In
	Frequency Sensing Range	50 → 400Hz
	Series	PPB02
	Operating Temperature Range	+60°C
	Dimensions	94 x 36 x 80mm
	Length	94mm
	Maximum Operating Temperature	+60°C
	Width	36mm
	Height	80mm
	Minimum Operating Temperature	-20°C

	選取全部
	品牌 Carlo Gavazzi
	Monitoring Application Voltage
	Electrical Phase 3
	Contact Configuration SPDT
	Voltage Sensitivity Overvoltage, Undervoltage
	Mounting Type Plug In
	Frequency Sensing Range 50 → 400Hz
	Series PPB02
	Operating Temperature Range +60°C
	Dimensions 94 x 36 x 80mm
	Length 94mm
	Maximum Operating Temperature +60°C
	Width 36mm
	Height 80mm
	Minimum Operating Temperature -20°C

Datasheet - PPB02CM44

COO (Country of Origin):: IT

The Carlo Gavazzi voltage monitoring relay can operate on both 3Ph and 3Ph+N mains detecting, besides the phase loss and the correct phase sequence, possible overvoltages and undervoltages. The power supply is provided by the monitored mains is wide input range and switch mode. A delay on alarm, up to 30s, for the over/under voltage alarms, filters unwanted trippings for temporary conditions.

Wide input voltage range and frequency
Asymmetry trip level can be adjusted from 2% to 22%
Switch mode power supply
Output LED indication
22.5mm standard DIN enclosure
Relay contact output for indication of the alarms/output status
