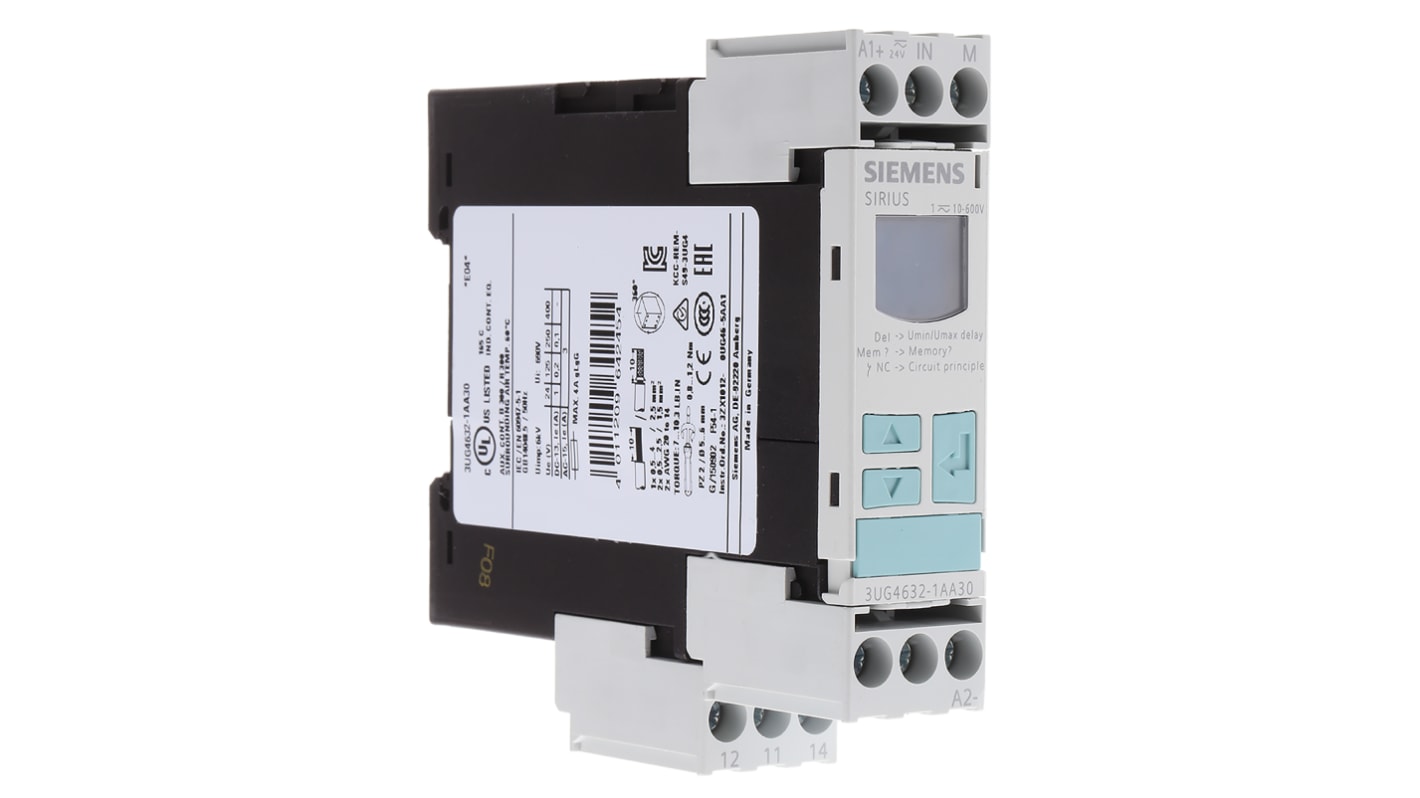

Siemens Voltage Monitoring Relay, 1 Phase, SPDT, 10 → 600V ac/dc, DIN Rail
- RS庫存編號:
- 518-7102
- 製造零件編號:
- 3UG4632-1AA30
- 製造商:
- Siemens
查看所有Monitoring Relays
- RS庫存編號:
- 518-7102
- 製造零件編號:
- 3UG4632-1AA30
- 製造商:
- Siemens
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊
Single Phase Voltage
22.5mm wide
All devices can be digitally set and have an LCD display, a fault memory can be switched on
Simultaneous monitoring for overvoltage and undervoltage over the complete range
Supply voltage 24Vac/dc
Hysterisis 0.1- 300V
Starting by-pass Time: 0.1 - 20s
Off Delay: 0.1 - 20s
1 C/O contact
All devices can be digitally set and have an LCD display, a fault memory can be switched on
Simultaneous monitoring for overvoltage and undervoltage over the complete range
Supply voltage 24Vac/dc
Hysterisis 0.1- 300V
Starting by-pass Time: 0.1 - 20s
Off Delay: 0.1 - 20s
1 C/O contact
規格
| Attribute | Value |
| Monitoring Application | Voltage |
| Electrical Phase | 1 |
| Contact Configuration | SPDT |
| Voltage Sensing Range | 10 → 600V ac/dc |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Mounting Type | DIN Rail |
| Time Delay | 0.1 → 20s |
| Series | 3UG4 |
| Width | 22.5mm |
| Maximum Operating Temperature | +60°C |
| Dimensions | 91 x 22.5 x 92mm |
| Length | 91mm |
| Height | 92mm |
| Maximum Voltage Sensed | 600V ac/dc |
| Minimum Voltage Sensed | 10V ac/dc |
| Operating Temperature Range | +60°C |
| Minimum Operating Temperature | -25°C |
| Number of Poles | 1 |
| Terminal Type | Screw |
