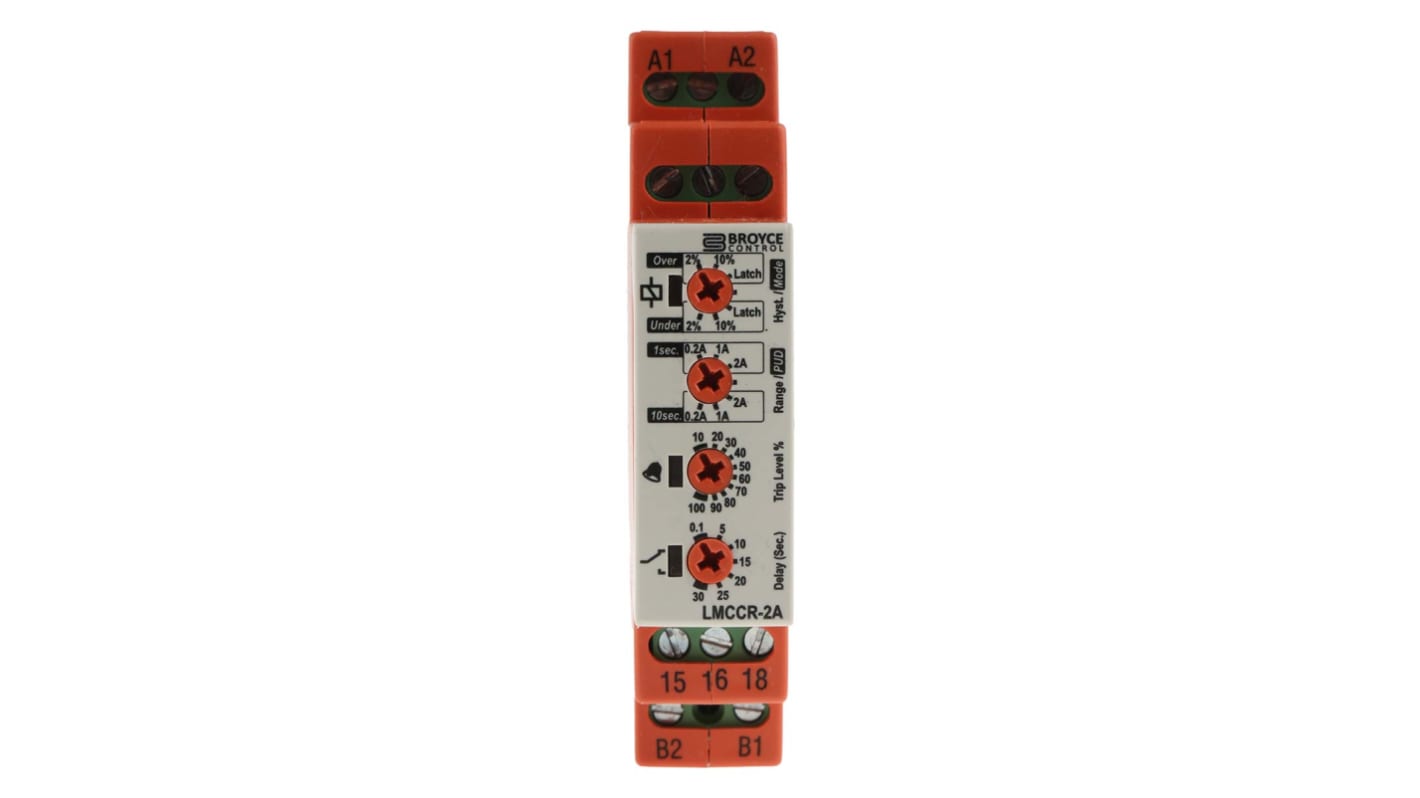

Broyce Control Current Monitoring Relay, SPDT, DIN Rail
- RS庫存編號:
- 850-5402
- 製造零件編號:
- LMCCR-2A 24-230VAC/DC
- 製造商:
- Broyce Control
8 現貨庫存，可於3工作日發貨。
單價 个
HK$1,104.82
| 單位 | Per unit |
| 1 + | HK$1,104.82 |
- RS庫存編號:
- 850-5402
- 製造零件編號:
- LMCCR-2A 24-230VAC/DC
- 製造商:
- Broyce Control
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊
L Series - Selectable Control Relays
L Series relay range of timers, control and three phase relays incorporate the latest technology and offer a wide range of user adjustable features.
17.5mm DIN rail housing
Microprocessor based
True R.M.S. monitoring
Isolated auxiliary supply (24 - 230 V ac/dc)
1 x SPDT relay output 8A
Green LED indication for supply status
Microprocessor based
True R.M.S. monitoring
Isolated auxiliary supply (24 - 230 V ac/dc)
1 x SPDT relay output 8A
Green LED indication for supply status
Approvals
UL Certification
規格
Attribute | Value |
|---|---|
| Monitoring Application | Current |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Minimum Current Sensed | 0.02 A, 0.1 A, 0.2A |
| Maximum Current Sensed | 0.2 A, 1 A, 2A |
| Current Sensitivity | Overcurrent, Undercurrent |
| Time Delay | 0.1 → 30s |
| Frequency Sensing Range | 48 → 63Hz |
| Series | L |
| Terminal Type | Screw |
| Operating Temperature Range | +60°C |
| Length | 66.5mm |
| Special Features | Adjustment for Trip Level & Time Delay |
| Height | 89mm |
| Maximum Operating Temperature | +60°C |
| Number of Poles | 1 |
| Minimum Operating Temperature | -20°C |
| Width | 17.5mm |
| Dimensions | 66.5 x 17.5 x 89mm |
| Current Range | 0.02 → 0.2A, 0.1 → 1A, 0.2 → 2A |
