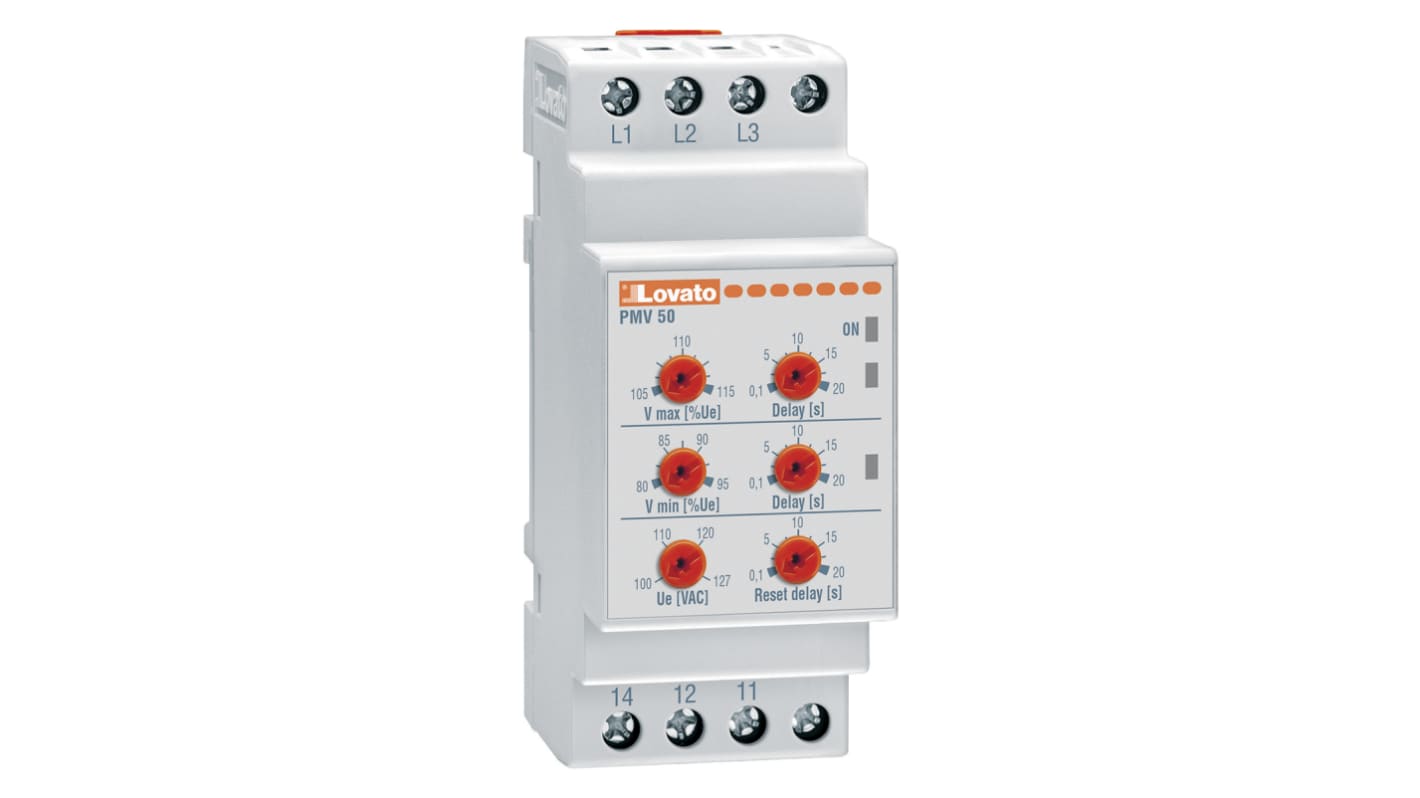

Lovato Voltage Monitoring Relay, 3 Phase, SPDT, 380 → 575V ac, DIN Rail

RS庫存編號:: 916-0114
製造零件編號:: PMV50A575
製造商:: Lovato

Lovato Voltage Monitoring Relay, 3 Phase, SPDT, 380 → 575V ac, DIN Rail

1 現貨庫存，可於3工作日發貨。

HK$3,415.01

單位	Per unit
1 +	HK$3,415.01

RS庫存編號:: 916-0114
製造零件編號:: PMV50A575
製造商:: Lovato

產品概覽和技術數據資料表

Datasheet

法例與合規

COO (Country of Origin):: IT

產品詳細資訊

Voltage Monitoring Relay Self Powered Lovato

This Lovato range of voltage monitoring relays are self-powered for minimum and maximum voltage, phase and neutral loss including incorrect phase sequence. You have a choice of one or three phase voltage monitoring relays and a maximum and minimum AC voltage. The relays have configurable rated voltage including excellent tripping accuracy.

Self-powered
Modular DIN 43880 housing
Excellent tripping accuracy
IEC protection: IP40 on front and only when placed in an IP40 enclosure or control board
IP20 at terminals
Configurable rated voltage
One or three phase
Minimum and maximum AC voltage
Tripping accuracy

Approvals

EAC; UL Listed for USA and Canada (cULus File E93601) as auxiliary devices.
Compliant with standards: IES/EN 60255-5
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CSA C22.2 n° 14.

Lovato Orange Contactors, Control Relays and Accessories

規格

Attribute	Value
Monitoring Application	Voltage
Electrical Phase	3
Voltage Sensing Range	380 → 575V ac
Contact Configuration	SPDT
Voltage Sensitivity	Self Powered
Mounting Type	DIN Rail
Time Delay	0.1 → 20s
Series	PMV50
Width	64.9mm
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-20°C
Number of Poles	1
Terminal Type	Screw
Length	35.8mm
Operating Temperature Range	+60°C
Height	104.7mm
Dimensions	35.8 x 64.9 x 104.7mm
Maximum Voltage Sensed	400V ac
