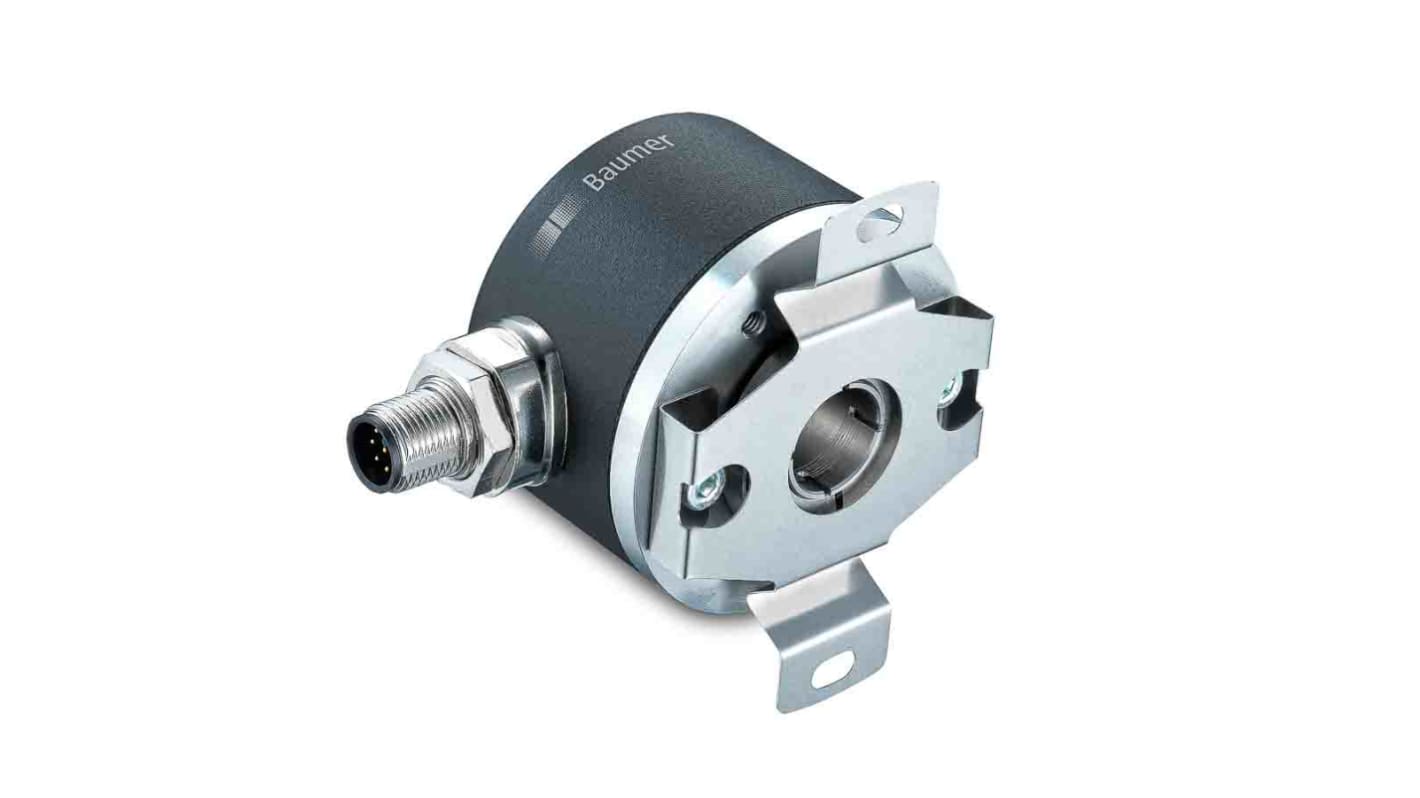

Baumer EAM580 Series Magnetic Absolute Encoder, Hollow Type, 12mm Shaft

RS庫存編號:: 189-2687
製造零件編號:: EAM580-BAC.5B4G.14130.A
製造商:: Baumer

Baumer EAM580 Series Magnetic Absolute Encoder, Hollow Type, 12mm Shaft

小計（1 件）*

HK$4,768.87

訂單超過 HK$250.00 免費送貨

暫時缺貨

從 2026年1月08日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$4,768.87

* 參考價格

RS庫存編號:: 189-2687
製造零件編號:: EAM580-BAC.5B4G.14130.A
製造商:: Baumer

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Baumer
	Encoder Technology	Magnetic
	Series	EAM580
	Maximum Revolutions	6000rpm
	Shaft Type	Hollow
	Shaft Diameter	12mm
	Supply Voltage	4.5 → 30 V dc
	Resolution	MT 13 bit, ST 14 bit
	IP Rating	IP65
	Interface	SSI-Gray
	Overall Width	58mm
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+85°C
	Mounting Type	Blind Hollow Shaft Flange
	Connection Type	Flange connector M12

	選取全部
	品牌 Baumer
	Encoder Technology Magnetic
	Series EAM580
	Maximum Revolutions 6000rpm
	Shaft Type Hollow
	Shaft Diameter 12mm
	Supply Voltage 4.5 → 30 V dc
	Resolution MT 13 bit, ST 14 bit
	IP Rating IP65
	Interface SSI-Gray
	Overall Width 58mm
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +85°C
	Mounting Type Blind Hollow Shaft Flange
	Connection Type Flange connector M12

COO (Country of Origin):: CH

Encoder single- or multiturn / SSI
Precise magnetic sensing
Resolution max. 32 bit (14 bit ST, 18 bit MT)
Angular accuracy up to ±0.15°
Additional incremental signals
High resistance to shock and vibrations
