ams OSRAM 1 Axis Surface Magnetic Position Sensor 3 V 3.6V, SPI, QFN, 16-Pin
- RS庫存編號:
- 200-9471
- 製造零件編號:
- AS5055A-BQFM
- 製造商:
- ams OSRAM

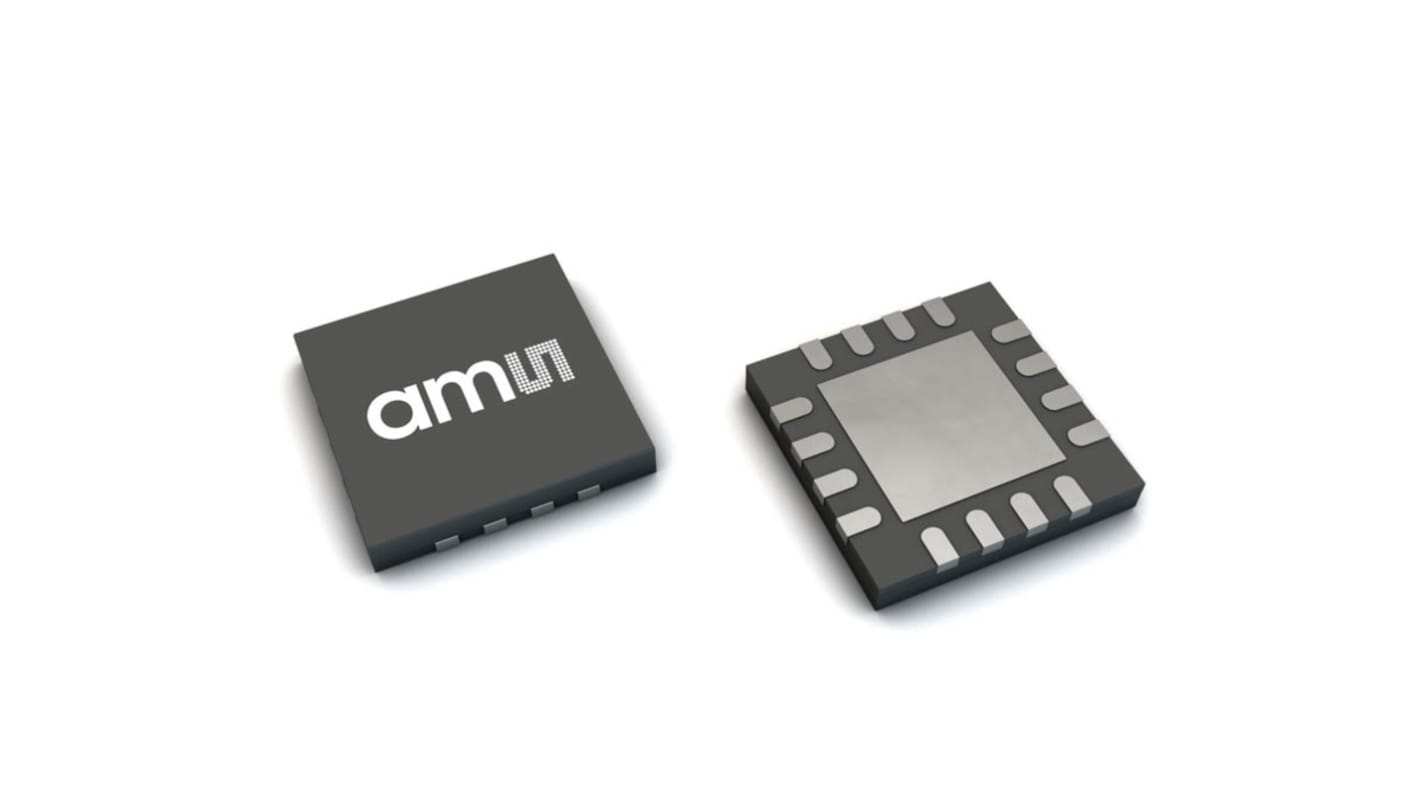

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 件）*
HK$55.50
訂單超過 HK$250.00 免費送貨
最後的 RS 庫存
- 最終 259 個，準備發貨
單位 | 每單位 |
|---|---|
| 1 - 124 | HK$55.50 |
| 125 - 249 | HK$54.40 |
| 250 + | HK$53.30 |
* 參考價格
- RS庫存編號:
- 200-9471
- 製造零件編號:
- AS5055A-BQFM
- 製造商:
- ams OSRAM
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | ams OSRAM | |
| Product Type | Magnetic Position Sensor | |
| Sensor Type | Hall Effect Sensors | |
| Number of Axis | 1 | |
| Technology | Hall Effect | |
| Mount Type | Surface | |
| Interface Type | SPI | |
| Magnetic Type | Rotary | |
| Minimum Supply Voltage | 3V | |
| Package Type | QFN | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Pin Count | 16 | |
| Height | 0.85mm | |
| Series | AS5055A | |
| Length | 4mm | |
| Standards/Approvals | RoHS | |
| Supply Current | 8.5mA | |
| Response Time | 500μs | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 ams OSRAM | ||
Product Type Magnetic Position Sensor | ||
Sensor Type Hall Effect Sensors | ||
Number of Axis 1 | ||
Technology Hall Effect | ||
Mount Type Surface | ||
Interface Type SPI | ||
Magnetic Type Rotary | ||
Minimum Supply Voltage 3V | ||
Package Type QFN | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Pin Count 16 | ||
Height 0.85mm | ||
Series AS5055A | ||
Length 4mm | ||
Standards/Approvals RoHS | ||
Supply Current 8.5mA | ||
Response Time 500μs | ||
Automotive Standard No | ||
- COO (Country of Origin):
- AT
The AS5055A is a single-chip on-axis magnetic rotary position sensor with low voltage and low power features. It includes an integrated Hall element array, a high resolution ADC and a smart power management controller. The angle position, alarm bits and magnetic field information are transmitted over a 3-wire or 4-wire SPI interface to the microcontroller. The AS5055A is available in a compact QFN 16-pin 4x4x0.85 mm package and specified over an operating temperature of -40ºC to 85ºC.
