Broadcom 2 Axis Surface Sensor 3.3 V 5V, Serial-4 Wire, Serial-3 Wire, Serial-2 Wire, SO-12, 12-Pin
- RS庫存編號:
- 233-1201
- 製造零件編號:
- AEAT-9955-Q32
- 製造商:
- Broadcom

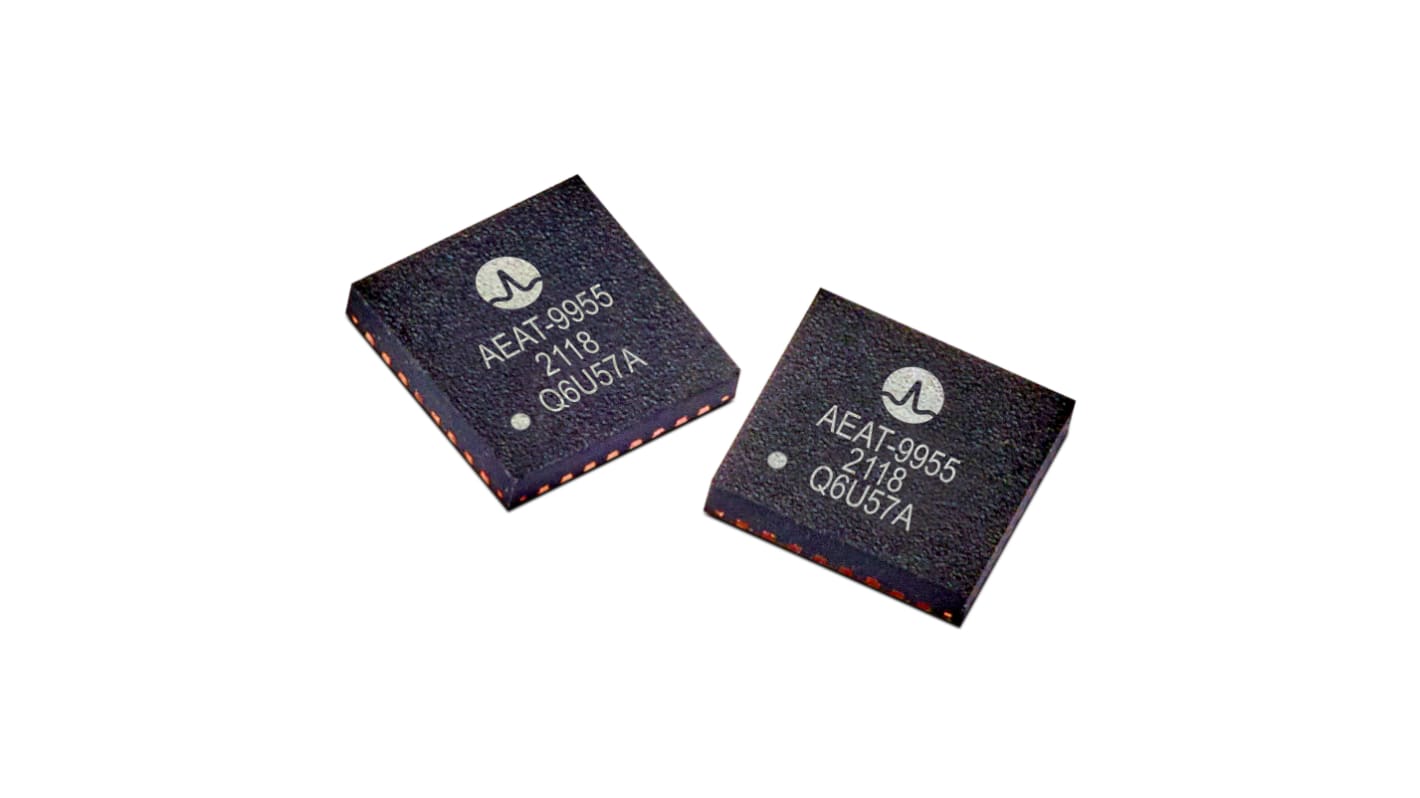

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 管，共 73 件）*
HK$10,368.701
訂單超過 HK$250.00 免費送貨
有庫存
- 365 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每管* |
|---|---|---|
| 73 - 73 | HK$142.037 | HK$10,368.70 |
| 146 - 219 | HK$139.479 | HK$10,181.97 |
| 292 - 365 | HK$136.69 | HK$9,978.37 |
| 438 + | HK$133.956 | HK$9,778.79 |
* 參考價格
- RS庫存編號:
- 233-1201
- 製造零件編號:
- AEAT-9955-Q32
- 製造商:
- Broadcom
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Broadcom | |
| Sensor Type | Magnetic Rotary Encoder | |
| Product Type | Sensor | |
| Number of Axis | 2 | |
| Technology | Motion Tracking Module | |
| Mount Type | Surface | |
| Interface Type | Serial-4 Wire, Serial-3 Wire, Serial-2 Wire | |
| Magnetic Type | Bipolar | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Supply Voltage | 5V | |
| Package Type | SO-12 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Pin Count | 12 | |
| Standards/Approvals | No | |
| Height | 0.9mm | |
| Length | 5mm | |
| Series | AEAT-9955 | |
| Automotive Standard | No | |
| Supply Current | 22mA | |
| 選取全部 | ||
|---|---|---|
品牌 Broadcom | ||
Sensor Type Magnetic Rotary Encoder | ||
Product Type Sensor | ||
Number of Axis 2 | ||
Technology Motion Tracking Module | ||
Mount Type Surface | ||
Interface Type Serial-4 Wire, Serial-3 Wire, Serial-2 Wire | ||
Magnetic Type Bipolar | ||
Minimum Supply Voltage 3.3V | ||
Maximum Supply Voltage 5V | ||
Package Type SO-12 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Pin Count 12 | ||
Standards/Approvals No | ||
Height 0.9mm | ||
Length 5mm | ||
Series AEAT-9955 | ||
Automotive Standard No | ||
Supply Current 22mA | ||
- COO (Country of Origin):
- MY
The Broadcom AEAT-9955 is an angular magnetic rotary sensor that provides accurate angular measurement over a full 360 degrees of rotation. The AEAT-9955 is a versatile solution capable of supporting a broad range of applications with its robust architecture to measure and deliver both absolute and incremental signals.
Multi-time programmable resolution from 10 to 18 bits.
SSI & SPI communication protocol
PWM encoded output signals
