Allen Bradley 150 HP Motor Controller, 100/240 V ac, 3 Phase, 201 A
- RS庫存編號:
- 250-513
- 製造零件編號:
- 150-F201NBRD
- 製造商:
- Allen Bradley
小計（1 件）*
HK$48,851.55
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 |
|---|---|
| 1 + | HK$48,851.55 |
* 參考價格
- RS庫存編號:
- 250-513
- 製造零件編號:
- 150-F201NBRD
- 製造商:
- Allen Bradley
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Allen Bradley | |
| Number of Phases | 3 | |
| Product Type | Motor Controller | |
| Output Voltage | 460 V ac | |
| Supply Voltage | 100/240 V ac | |
| Current Rating | 201 A | |
| Power Rating | 150HP | |
| IP Rating | IP2X | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | EN/IEC 60947-1, UL 508, CCC, EN/IEC 60947-4-2, CSA, CE, cULus Listed | |
| 選取全部 | ||
|---|---|---|
品牌 Allen Bradley | ||
Number of Phases 3 | ||
Product Type Motor Controller | ||
Output Voltage 460 V ac | ||
Supply Voltage 100/240 V ac | ||
Current Rating 201 A | ||
Power Rating 150HP | ||
IP Rating IP2X | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals EN/IEC 60947-1, UL 508, CCC, EN/IEC 60947-4-2, CSA, CE, cULus Listed | ||
- COO (Country of Origin):
- MX

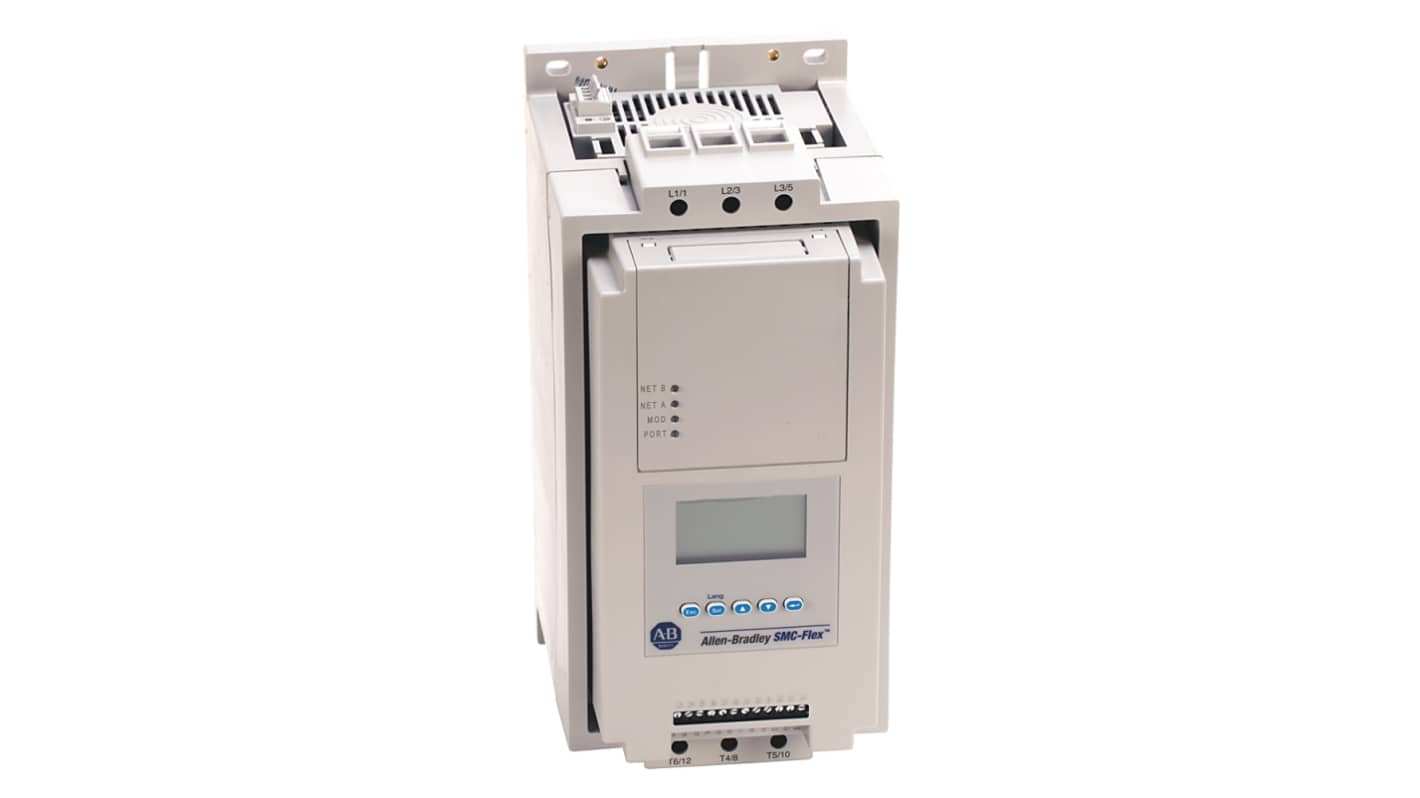

The Allen Bradley SMC controllers are micro processor based soft starters that are designed to maximize the efficiency of motor starts and stops. SMC controllers are designed to operate 3 phase motors. They feature built in overload protection and use six silicon controlled rectifiers to vary the conduction period and control the voltage and thus, the torque to the motor during starting, running and stopping.
Modular for simplified installation and maintenance
Built in LCD and keypad or personal computer software setup
Integrated bypass
Nine start and stop modes and three slow speed modes
Full metering and diagnostics
