Name: Allen Bradley 250 HP Motor Controller, 200/690 V ac, 3 Phase, 317 A, Motion Function
Brand: Allen Bradley
SKU: 250-543
Price: 57049.38 HKD
Availability: BackOrder

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Allen Bradley
	Product Type	Motor Controller
	Number of Phases	3
	Control Function	Motion
	Output Voltage	460 V
	Supply Voltage	200/690 V ac
	Current Rating	317 A
	Power Rating	250HP
	IP Rating	IP2X
	Minimum Operating Temperature	-5°C
	Maximum Operating Temperature	50°C
	Standards/Approvals	CSA, CE, UL 508, cULus Listed, CCC, EN/IEC 60947-4-2, EN/IEC 60947-1

	選取全部
	品牌 Allen Bradley
	Product Type Motor Controller
	Number of Phases 3
	Control Function Motion
	Output Voltage 460 V
	Supply Voltage 200/690 V ac
	Current Rating 317 A
	Power Rating 250HP
	IP Rating IP2X
	Minimum Operating Temperature -5°C
	Maximum Operating Temperature 50°C
	Standards/Approvals CSA, CE, UL 508, cULus Listed, CCC, EN/IEC 60947-4-2, EN/IEC 60947-1

Datasheet - 150-F317NBDB

COO (Country of Origin):: MX

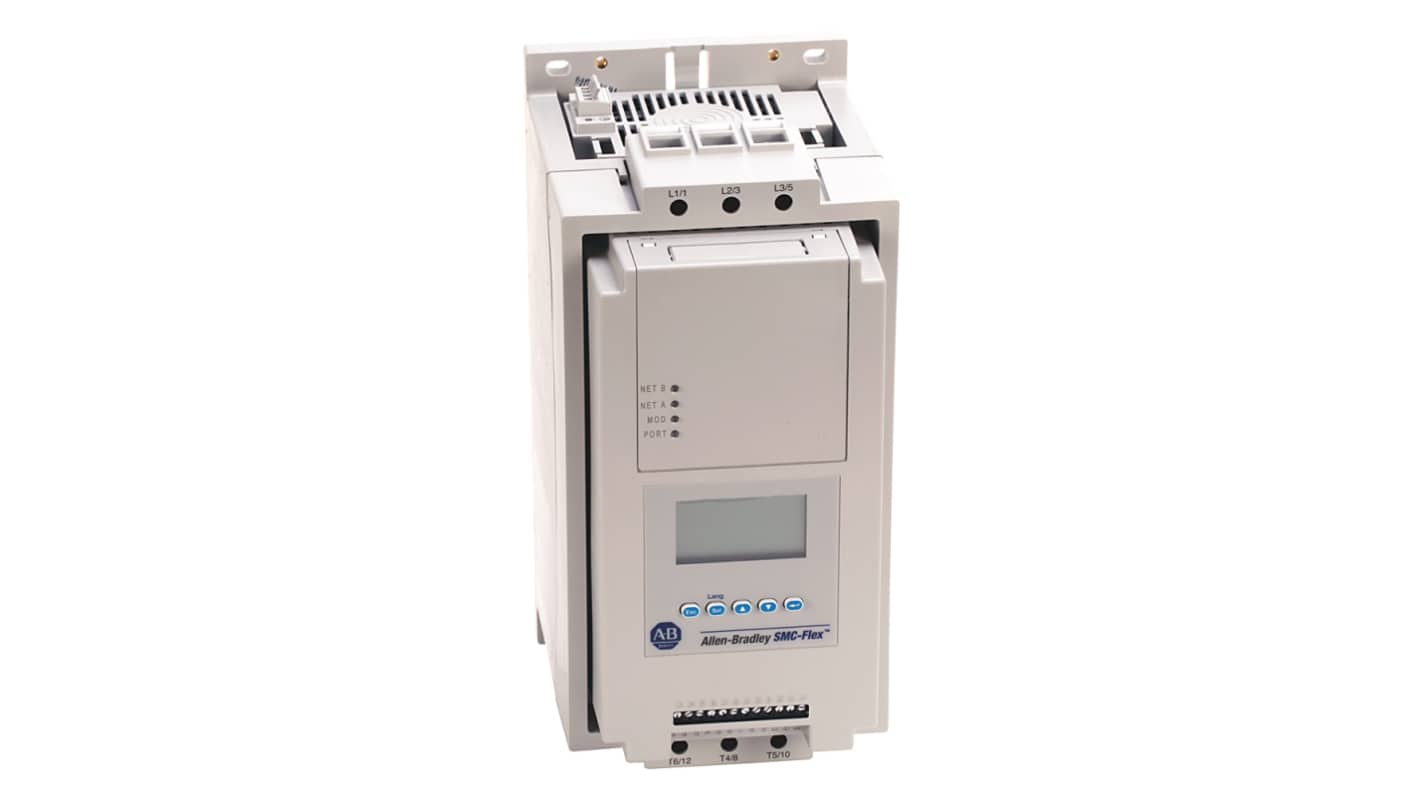

The Allen Bradley SMC controllers are micro processor based soft starters that are designed to maximize the efficiency of motor starts and stops. SMC controllers are designed to operate 3 phase motors. They feature built in overload protection and use six silicon controlled rectifiers to vary the conduction period and control the voltage and thus, the torque to the motor during starting, running and stopping.

Modular for simplified installation and maintenance

Built in LCD and keypad or personal computer software setup

Integrated bypass

Nine start and stop modes and three slow speed modes

Full metering and diagnostics

Allen Bradley 250 HP Motor Controller, 200/690 V ac, 3 Phase, 317 A, Motion Function
