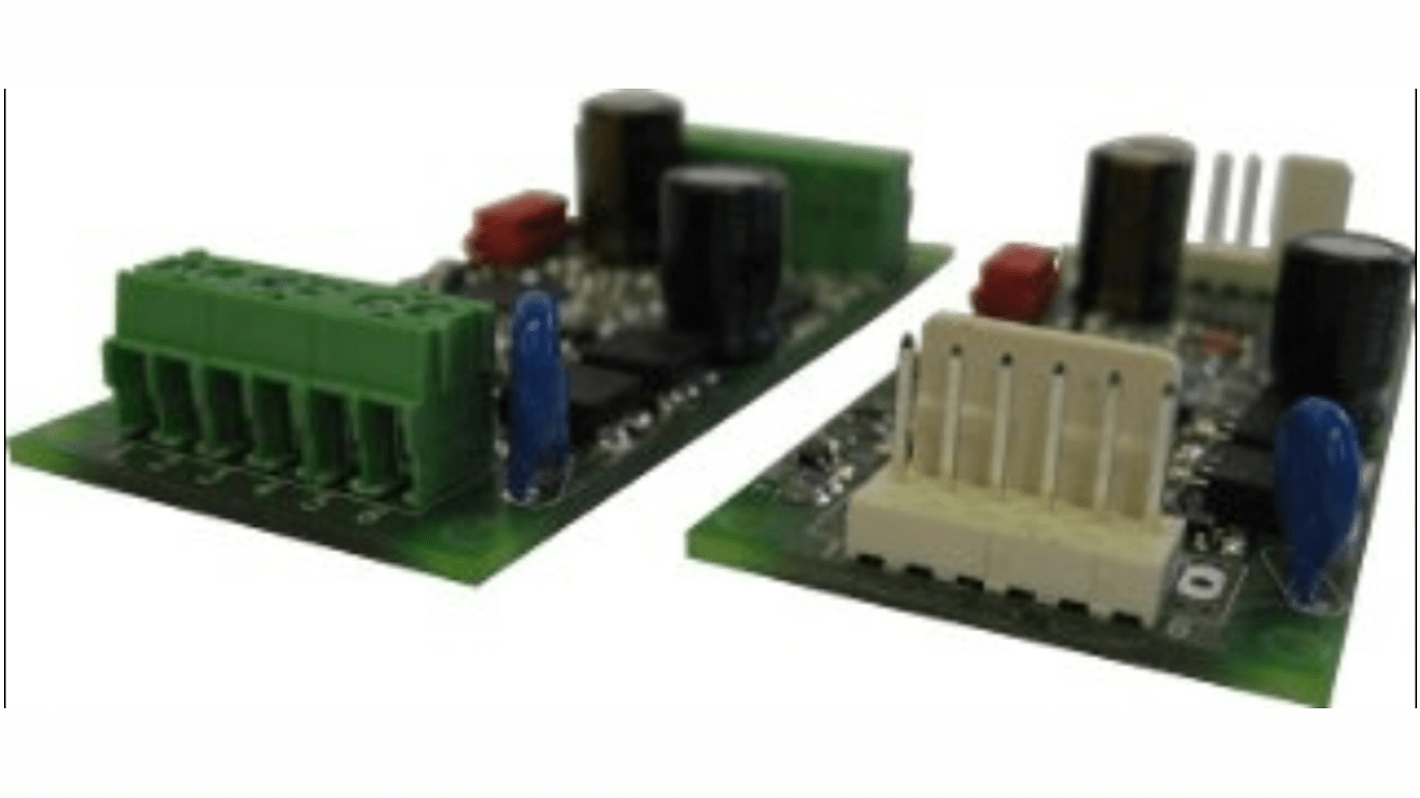

Electromen - EM-324SPF DC MOTOR POSITIONING CONTROLLER, 12-24 V, 4A

The EM-324-SPF is a positioning driver to be used with DC-motors, the solid state power stage operates with high efficiency using FET-transistors.

Feedback can be achieved with a one or two line pulse signal, although it is preferable and more accurate to do so with two 0°/90° pulse lines.

The driver includes an analogue control with 3 signal ranges, 0-5V, 0-11V or 4-20mA, the input is freely scalable within this range.

The maximum accuracy available for positioning is 0.2%, exceeding what is generally required for most actuator positioning applications.

The learn routine feature helps determine the full movement range quickly and easily and the range of be modified from both ends with limit switch parameters.

Current limits and driving speeds can be set individually for both directions.

Driver includes also many other dynamic adjustment options including: load compensation, dead-zone setting (positioning window), start and stop ramps for a smooth direction change and an adjustable braking zone.

The on-board LED-light indicates the possible fault situations, the fault signal can be forwarded through the combiport for external use

Combiport can also be set to give 'position OK' output or re-transmit current position via analogue voltage output

The drive has very low RF emissions and is suitable for use in in critical electromagnetic environments including medical

For parameters setting there is 3 options: EM-236 interface unit, EM-268 with Menthol-Lite PC-program and EM-326 with Menthol-App application for smartphone

Features and Benefits

12-24Vdc, 4A continuous, 6A peak

Set value 0-5V, 0-11V, 0-20mA & feedback input from encoder/hall sensor

Positioning accuracy max. 0.2%

Speed, direction, current limiting, soft start/stop and range adjustment control

Compact and DIN rail mountable;Quadrature pulse counting

Multiple dynamic settings

Solid state power stage

One or two pulse feedback

Voltage or mA control

Position accuracy max. 0.2%

Flexible set up options

2/16kHz PWM frequency options

* 4A at 2kHz / 3A at 16kHz momentary 6A (Ta<50°C)

選取全部	屬性	值
	品牌	Electromen OY
	Product Type	DC Motor Controller
	Control Function	PWM
	Output Voltage	35 V
	Supply Voltage	10/35 V
	Current Rating	4 A
	Overall Length	72mm
	Overall Width	42mm
	Overall Depth	25 mm
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	EN - 55022B

	選取全部
	品牌 Electromen OY
	Product Type DC Motor Controller
	Control Function PWM
	Output Voltage 35 V
	Supply Voltage 10/35 V
	Current Rating 4 A
	Overall Length 72mm
	Overall Width 42mm
	Overall Depth 25 mm
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 60°C
	Standards/Approvals EN - 55022B

Electromen OY DC Motor Controller, 10/35 V, 4 A, PWM Function
