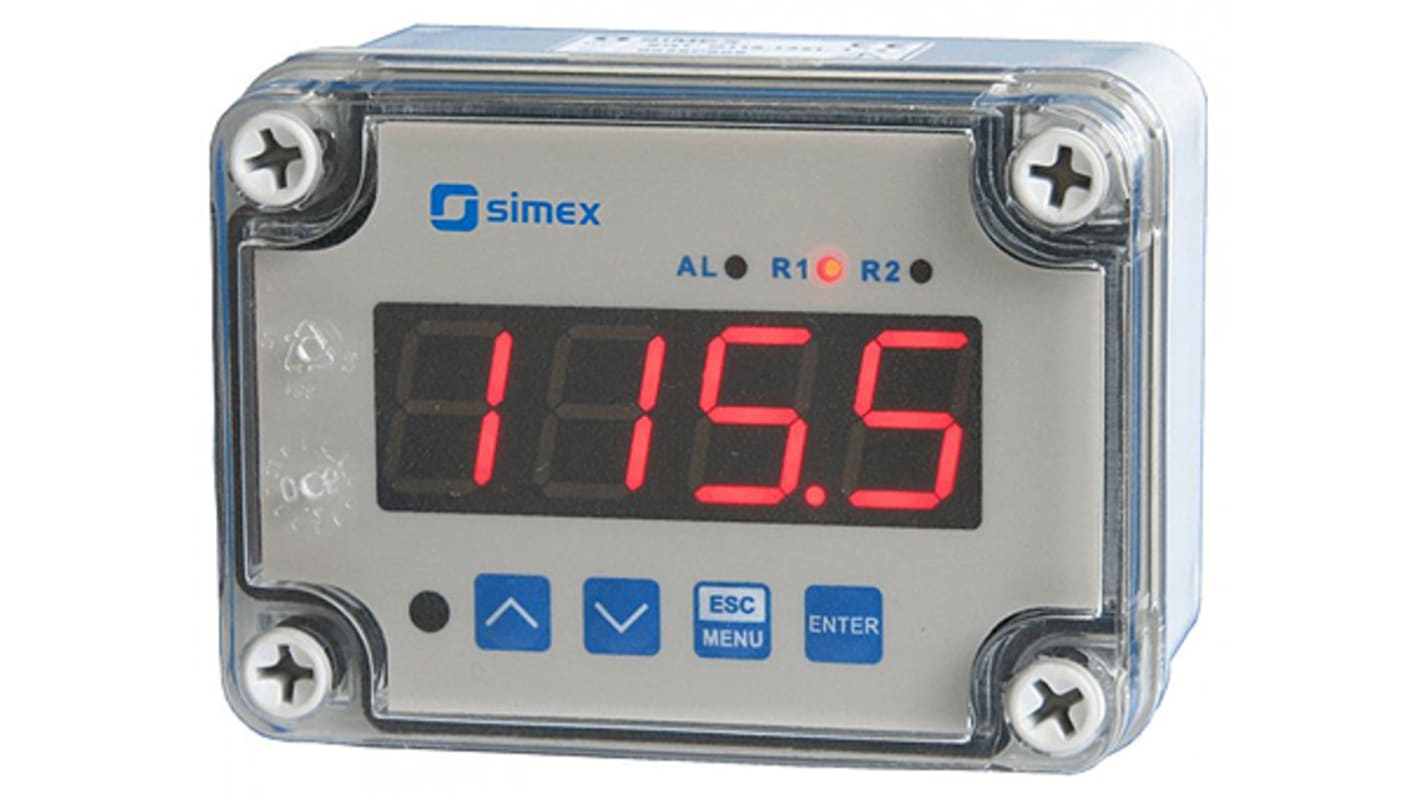

The SRT-N118 and SRT-N118_XA are designed for temperature measurement. The SRT-N118 model is equipped with Pt100/500/1000 type input with automatic connection recognition. Whereas the SRT-N118_XA is equipped with thermocouple input (K, S, J, T, N, R, B, E) and the measurement range depends on connected thermocouple type. The temperature controllers are equipped with 4 buttons that are used for programming main presets. For a high degree of protection, the keyboard is mounted under a transparent cover.
• 4-digit (20 mm) LED display • 2 relay outputs • RS485/Modbus RTU communication interface • Configuration with local keyboard or free S-Config software via RS485 port • Signal peak value detection • Free configuration software S-Config • Suitable for operations in harsh environments • Wall mounted, IP67 housing
