Lascar PanelPilotACE TFT Development Kit for Current, Voltage

小計（1 件）*

HK$3,971.10

Add to Basket
選擇或輸入數量
庫存資訊目前無法查詢
單位
每單位
1 +HK$3,971.10

* 參考價格

RS庫存編號:
138-3528
Distrelec 貨號:
302-52-011
製造零件編號:
SGD 70-A-DK+
製造商:
Lascar
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Lascar

Properties Measured

Current, Voltage

Display Type

TFT

Depth

75mm

Meter Type

Digital

Series

PanelPilotACE

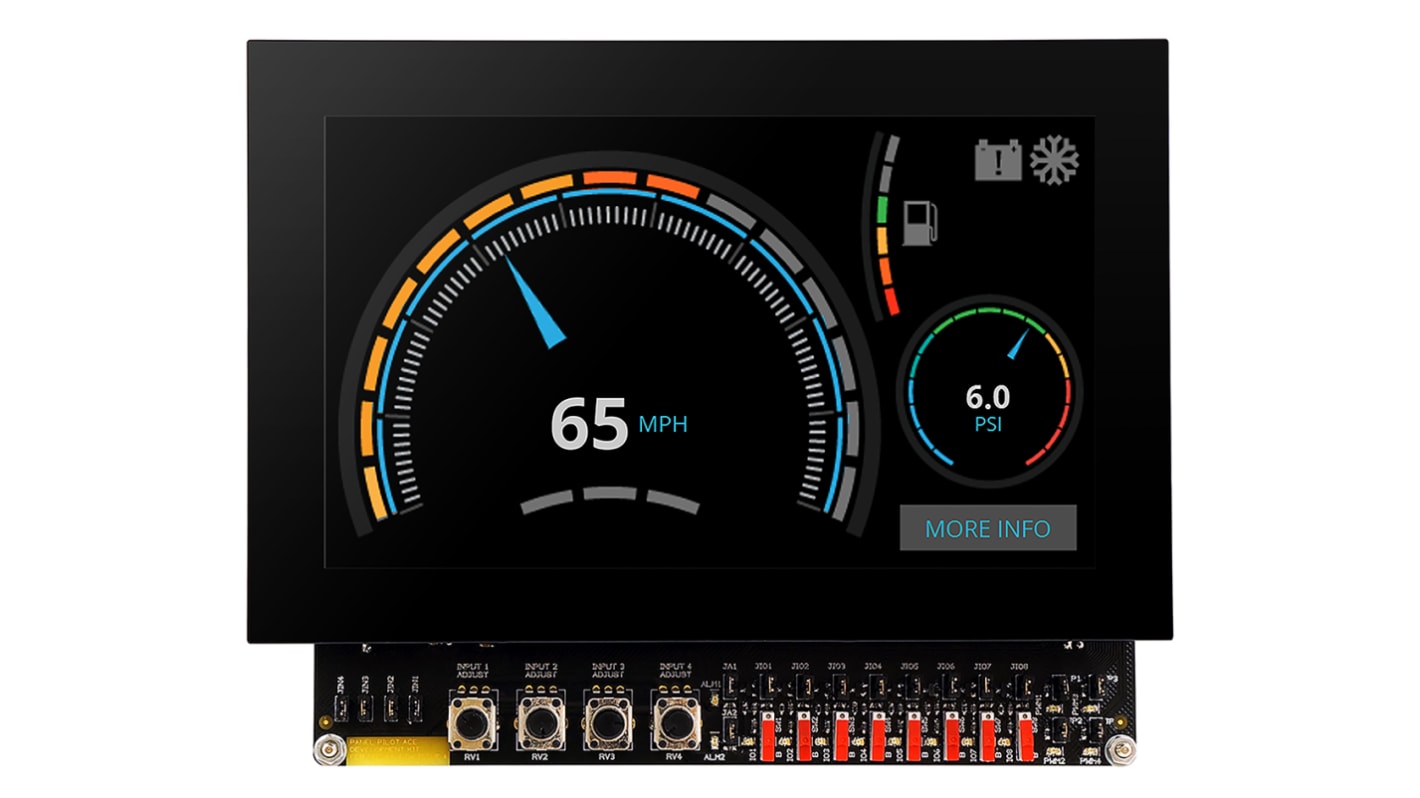

Development Kit for the SGD 70-A


The development kit is a state-of-the-art board that allows users to connect and test the input and output functionality of the SGD 70-A, PanelPilotACE display. The board includes LEDs and switches for digital I/O's, four potentiometers to generate analogue inputs, variable brightness LEDs for PWN outputs and a prototyping area for testing circuitry. Connections are also available for the display's RS232, RS485, SPI and I²C functionality.

Features and Benefits


4 x analogue inputs each with ±5Vd.c. analogue dial and screw terminals for external inputs
8x digital I/O's each with input switch, status LED and pin headers to connect external circuitry
4 x PWN outputs each with LED indication and pin heads to connect external circuitry

Certifications


ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
