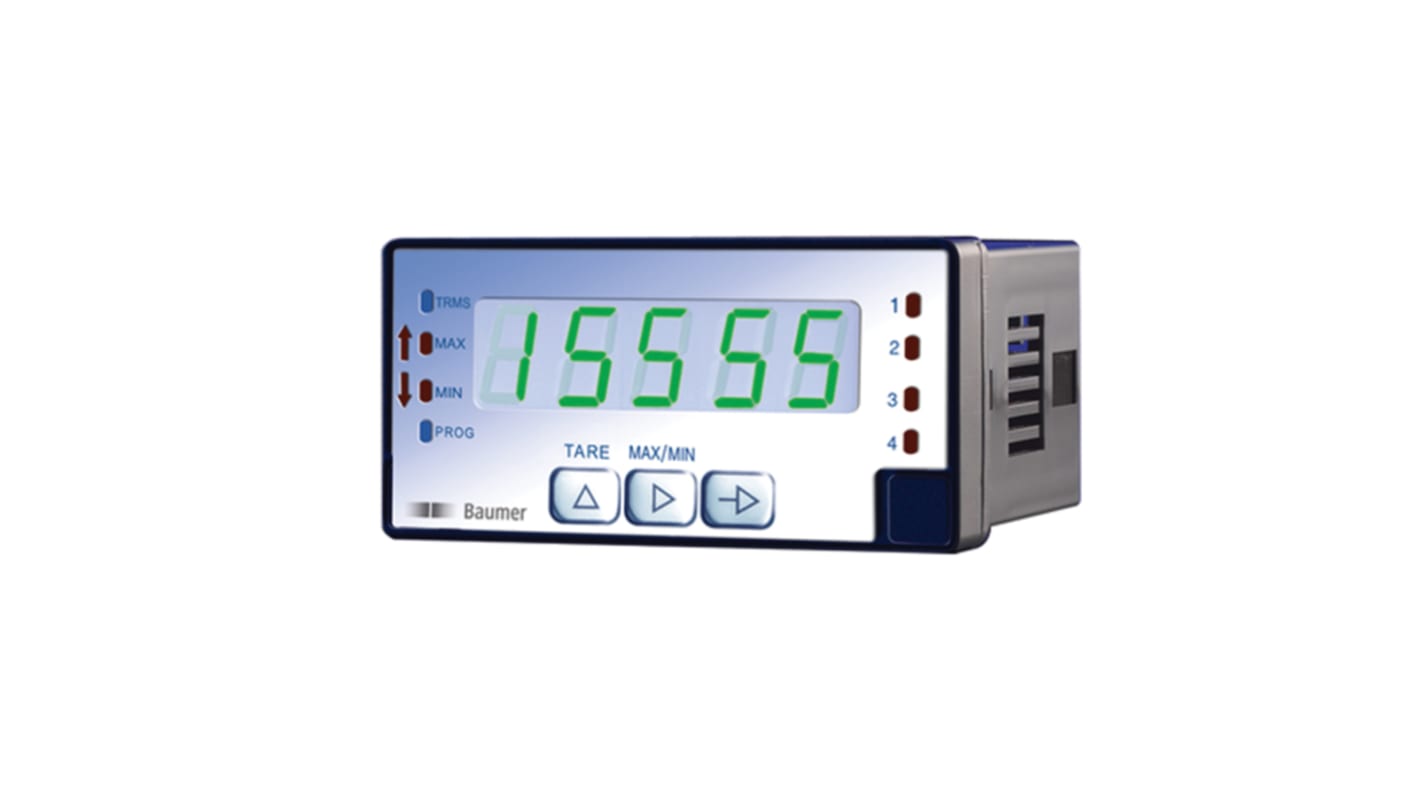

Baumer PA418 LED Digital Panel Multifunction Meter for Power, Current, Voltage, 45 mm x 92 mm

RS庫存編號:: 189-2676
製造零件編號:: PA418.065AX01
製造商:: Baumer

Baumer PA418 LED Digital Panel Multifunction Meter for Power, Current, Voltage, 45 mm x 92 mm

小計（1 件）*

HK$4,824.32

添加 1 件件可免費送貨

下方訂單 HK$250.00（不含稅）成本 HK$50.00。

有庫存

加上 3 件從 2026年2月16日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$4,824.32

* 參考價格

RS庫存編號:: 189-2676
製造零件編號:: PA418.065AX01
製造商:: Baumer

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Baumer
	Product Type	Digital Panel Multifunction Meter
	Properties Measured	Power, Current, Voltage
	Display Type	LED
	Cutout Height	45mm
	Number of Digits	5
	Cutout Width	92mm
	Depth	96mm
	Digit Height	14mm
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	UL 94 V-0
	Meter Type	Digital
	Series	PA418

	選取全部
	品牌 Baumer
	Product Type Digital Panel Multifunction Meter
	Properties Measured Power, Current, Voltage
	Display Type LED
	Cutout Height 45mm
	Number of Digits 5
	Cutout Width 92mm
	Depth 96mm
	Digit Height 14mm
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 60°C
	Standards/Approvals UL 94 V-0
	Meter Type Digital
	Series PA418

Datasheet PA418.065AX01

COO (Country of Origin):: ES

For standard signals, temperature, strain gauge.

Inputs: Voltage ±10 V / current ±20 mA / thermocouples J,K,T,Pt100 / strain gauge / potentiometer

Programmable characteristic curve with 11 control points

Three programmable control inputs

Min, Max, Tare functions

Display stabilization filter

Analogue output 4…20 mA or 0…10 V

Interface RS232 or RS485

LED display, 5-digits, 3 Colours

DIN housing 96 x 48 mm

Baumer PA418 LED Digital Panel Multifunction Meter for Power, Current, Voltage, 45 mm x 92 mm
