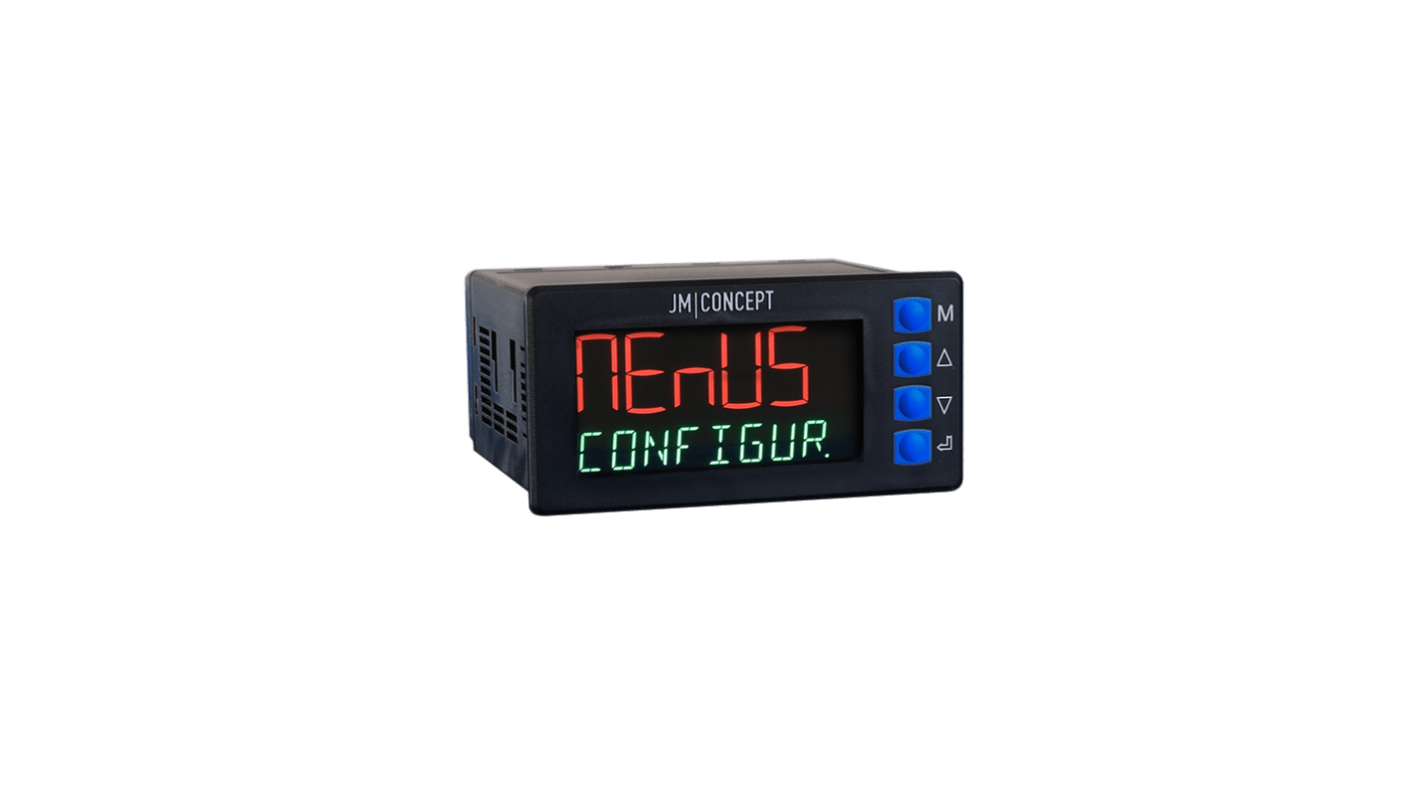

JM CONCEPT XALIS 9000 LCD Digital Panel Multifunction Meter for Potentiometer Signal, Voltage, Temperature, Current,

RS庫存編號:: 231-3888
製造零件編號:: XALIS9000U0
製造商:: JM CONCEPT

JM CONCEPT XALIS 9000 LCD Digital Panel Multifunction Meter for Potentiometer Signal, Voltage, Temperature, Current,

小計（1 件）*

HK$2,268.70

库存信息目前无法访问 - 请稍候查看

單位	每單位
1 +	HK$2,268.70

* 參考價格

RS庫存編號:: 231-3888
製造零件編號:: XALIS9000U0
製造商:: JM CONCEPT

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	JM CONCEPT
	Properties Measured	Potentiometer Signal, Voltage, Temperature, Current, Resistance
	Product Type	Digital Panel Multifunction Meter
	Display Type	LCD
	Cutout Height	45mm
	Number of Digits	5
	Depth	85mm
	Cutout Width	92mm
	Digit Height	18mm
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	No
	Meter Type	Digital
	Series	XALIS 9000

	選取全部
	品牌 JM CONCEPT
	Properties Measured Potentiometer Signal, Voltage, Temperature, Current, Resistance
	Product Type Digital Panel Multifunction Meter
	Display Type LCD
	Cutout Height 45mm
	Number of Digits 5
	Depth 85mm
	Cutout Width 92mm
	Digit Height 18mm
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 60°C
	Standards/Approvals No
	Meter Type Digital
	Series XALIS 9000

Datasheet - XALIS9000U0

COO (Country of Origin):: FR

The JM CONCEPT digital indicator comes with two-colour display allowing analogue and digital transmission of various signals. The flush-mount housing (IP65 48mm x 96mm x 85) equipped with plug-in connectors and a USB socket on the back. It comes with 1 universal input and supports RS485 USB communication.

Precision class 0,1

Input analogue / digital conversion 24 bits

Output analogue / digital conversion 16 bits

Thermal drift <25ppm

Maximum of consumption <11.3VA
