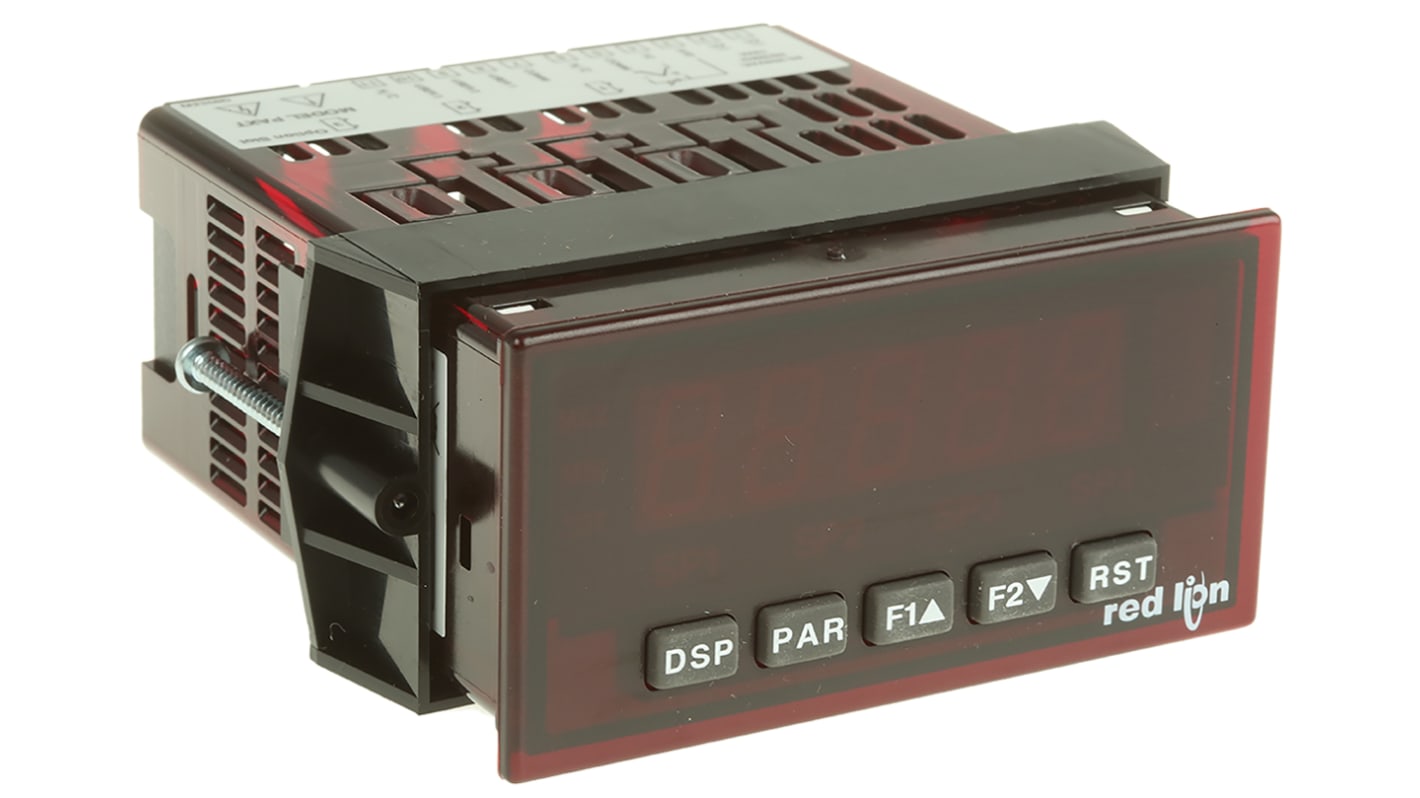

The Red Lion analogue input panel meter is an indicator that offers several features and performance capabilities to suit a wide range of industrial applications. It measures thermocouple and RTD input. The optional plug-in output cards allow the configuration of the meter for present applications while providing easy upgrades for the future. The intensity of the display can be adjusted from dark room applications up to sunlight readable, making it ideal for viewing in bright light applications. The meter provides a MAX and MIN reading memory with a programmable capture time. Its capture time is used to prevent detection of false MAX or MIN readings that may occur during start-up or unusual process events.
Features and Benefits
Supply voltage rating is 85VAC to 250VAC 5-digit (14.2mm) red sunlight readable display Variable intensity display 16-point scaling for non-linear processes Programmable function keys/user inputs 9-digit totalizer (integrator) with batching Optional custom units overlay w/backlight Four set point alarm outputs (w/option card) Communication and bus capabilities (w/option card) Retransmitted analogue output (w/option card) Crimson® programming software Operating temperature ranges between -10°C and 50°C
Certifications
NEMA 4X IP65 rated sealed front bezel CE certified cULus recognized ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
