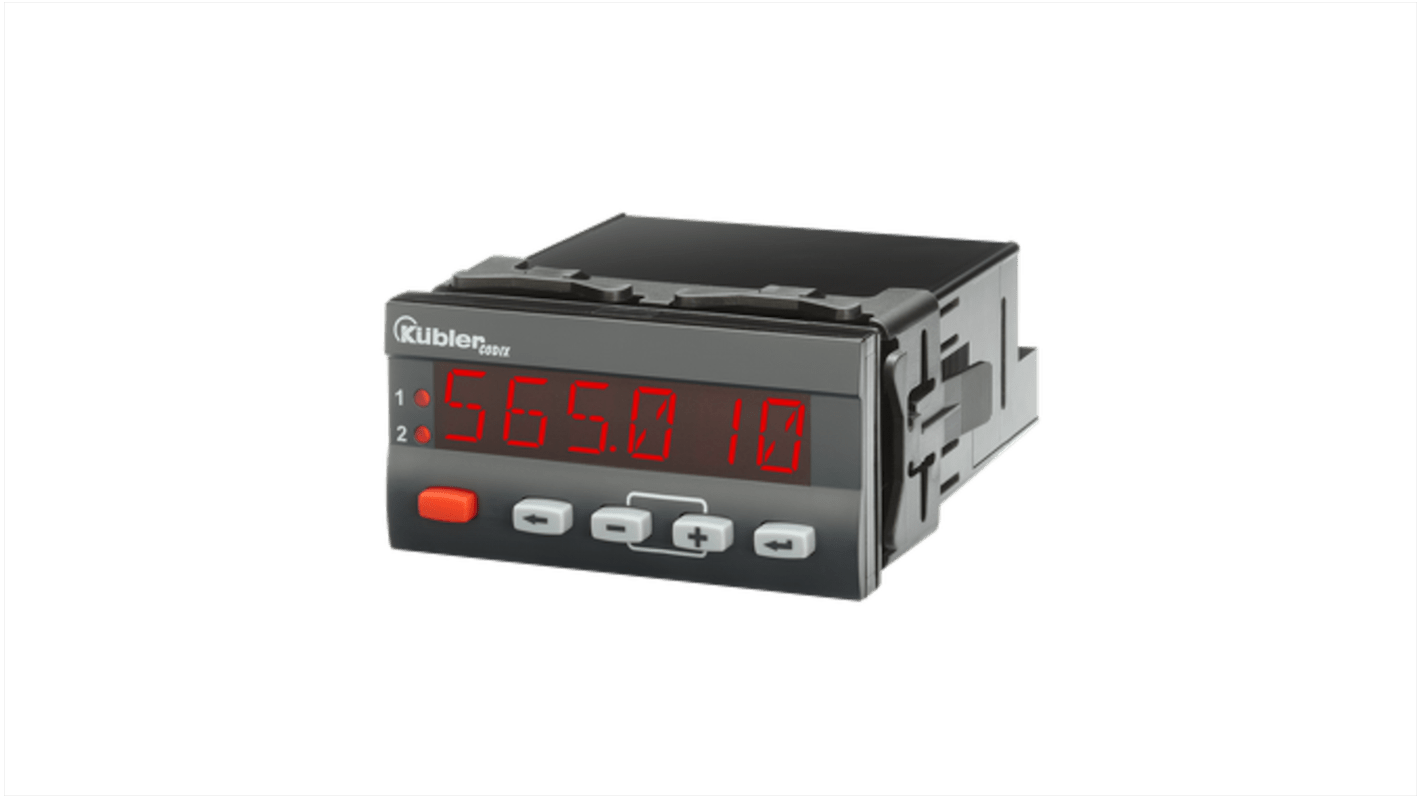

Kubler CODIX 565 LED Digital Panel Multifunction Meter for Voltage, Current, 45 mm x 92 mm

查看所有Multi Function Panel Meters

小計（1 件）*

HK$2,525.70

Add to Basket
選擇或輸入數量
下方訂單 HK$250.00（不含稅）成本 HK$50.00。
有庫存
  • 9 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$2,525.70

* 參考價格

RS庫存編號:
791-5996
Distrelec 貨號:
110-49-218
製造零件編號:
6.565.010.300
製造商:
Kubler
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Kubler

Product Type

Digital Panel Multifunction Meter

Properties Measured

Voltage, Current

Display Type

LED

Cutout Height

45mm

Depth

90.5mm

Number of Digits

6

Cutout Width

92mm

Digit Height

14mm

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

65°C

Standards/Approvals

RoHS

Maximum Measurement

999999

Minimum Measurement

-199999

Meter Type

Digital

Series

CODIX 565

COO (Country of Origin):
DE

Codix 565 - Temperature Controller


The process controller Codix 565 with totaliser function displays V and mA analogue input signals in high resolution. In addition it can monitor and control 2 limit values.

These fast displays set new standards when it comes to user friendliness. Their easy-to-read 14-segment LED display, easy-to- understand running help texts and a practical quick-start guide eliminate the need to wade through time-consuming full instruction manuals.

6-digit display, 14-segment LED, 14 mm high

Simple programming via 4 keys on the front

One front key as well as 2 additional inputs can be programmed for specific applications

Sampling rate of 10 readings per second

Time-controlled totaliser function for totalising the measured values. Can be reset separately

MIN/MAX memory function, individually resettable

Customer-specific characteristic (linearization) curve via 12 control points for all measurement signal inputs

2 relay outputs (changeover contacts) for limit monitoring with hysteresis and ON/OFF delay function for current measured or totaliser values

Inputs and outputs galvanically isolated

Digital filter (first-order) for smoothing display fluctuations with unstable input signals

Wide range of supply voltage 10 → 30 Vdc/90 → 260 Vac

Wide input range: 0/4-20mA, 0/2-10 Vdc, +/-10V

Kubler Controller
