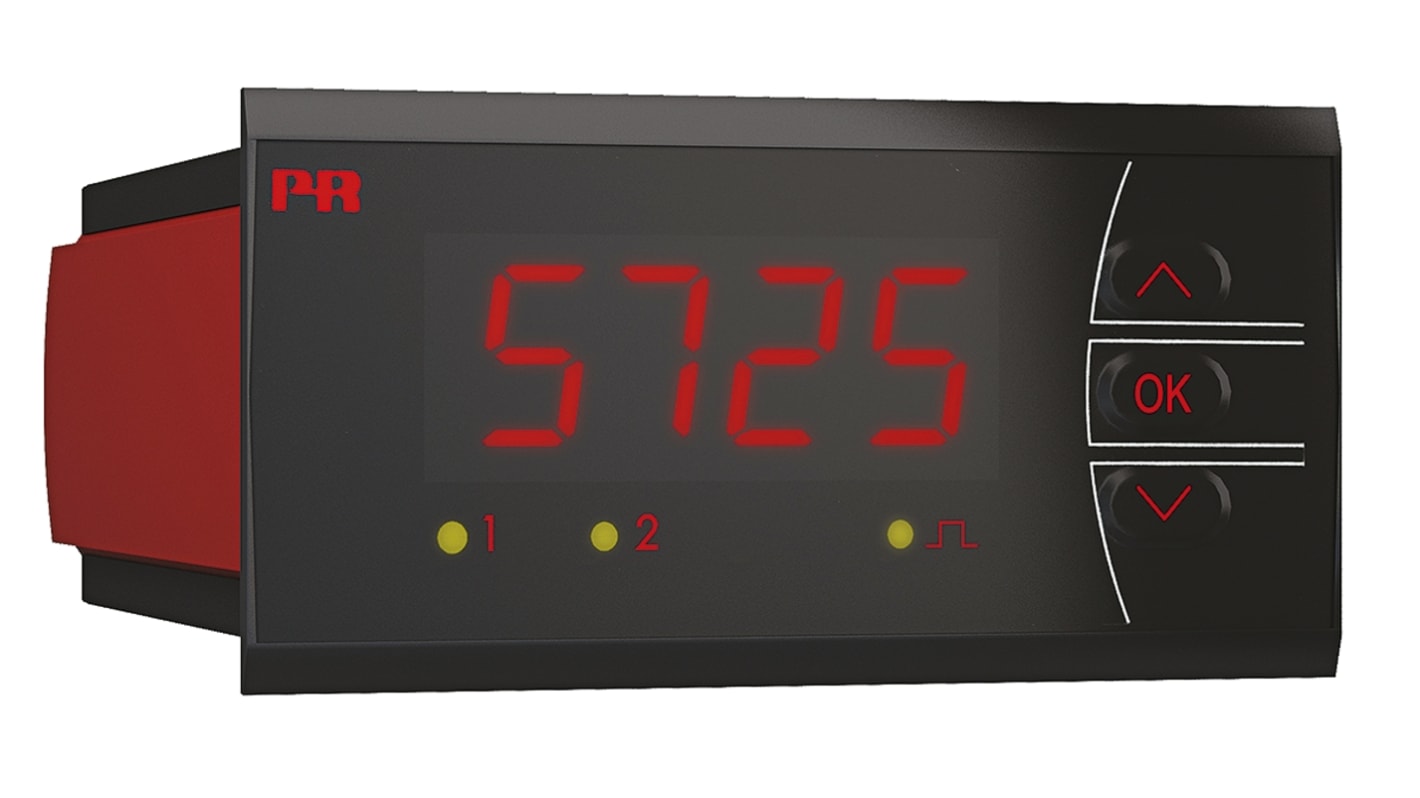

PR Electronics 5700 LED Digital Frequency Meter for Frequency, 44.5mm x 91.5mm

查看所有Multi Function Panel Meters

小計（1 件）*

HK$3,068.50

Add to Basket
選擇或輸入數量
有庫存
  • 5 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$3,068.50

* 參考價格

RS庫存編號:
827-5401
製造零件編號:
5725D
製造商:
PR Electronics
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

PR Electronics

Properties Measured

Frequency

Display Type

LED

Cutout Height

44.5mm

Cutout Width

91.5mm

Number of Digits

4

Depth

120mm

Digit Height

13.8 mm

Minimum Temperature

-20°C

Maximum Temperature

+60°C

Meter Type

Programmable Frequency Indicator

Series

5700

Approvals

EN 61010-1, EN 61326-1, GOST R, UL 508

COO (Country of Origin):
DK

PR Electronics 5725 Series - Programmable Frequency Indicator


The PR Electronics 5725 programmable frequency indicator measures, scales, and displays frequency signals found in many process speed and flow rate applications. The indicator can also measure the period of the frequency to display the elapsed time between events.

Features and Benefits


• 4 digit, 14 segment LED display makes the device easy to read, with scrolling help text.
• The frequency indicator meets NAMUR NE21 recommendations, ensuring high performance in harsh EMC environments.
• The device is fully push button programmable and is password protected for security.
• Excellent accuracy of better than 0.05% of the selected range.
• The frequency indicator has an IP65 protection rating and is approved for marine operations, and an optional splash proof cover is available if extra protection is required.
• Built-in excitation source for measuring NPN, PNP, NAMUR and S0 sensors.
• Customisable trigger levels allow measurement of nearly any pulse sensor.

PR Electronics 5725D Frequency Indicator


The 5725D has two SPDT relays and one analog output.
