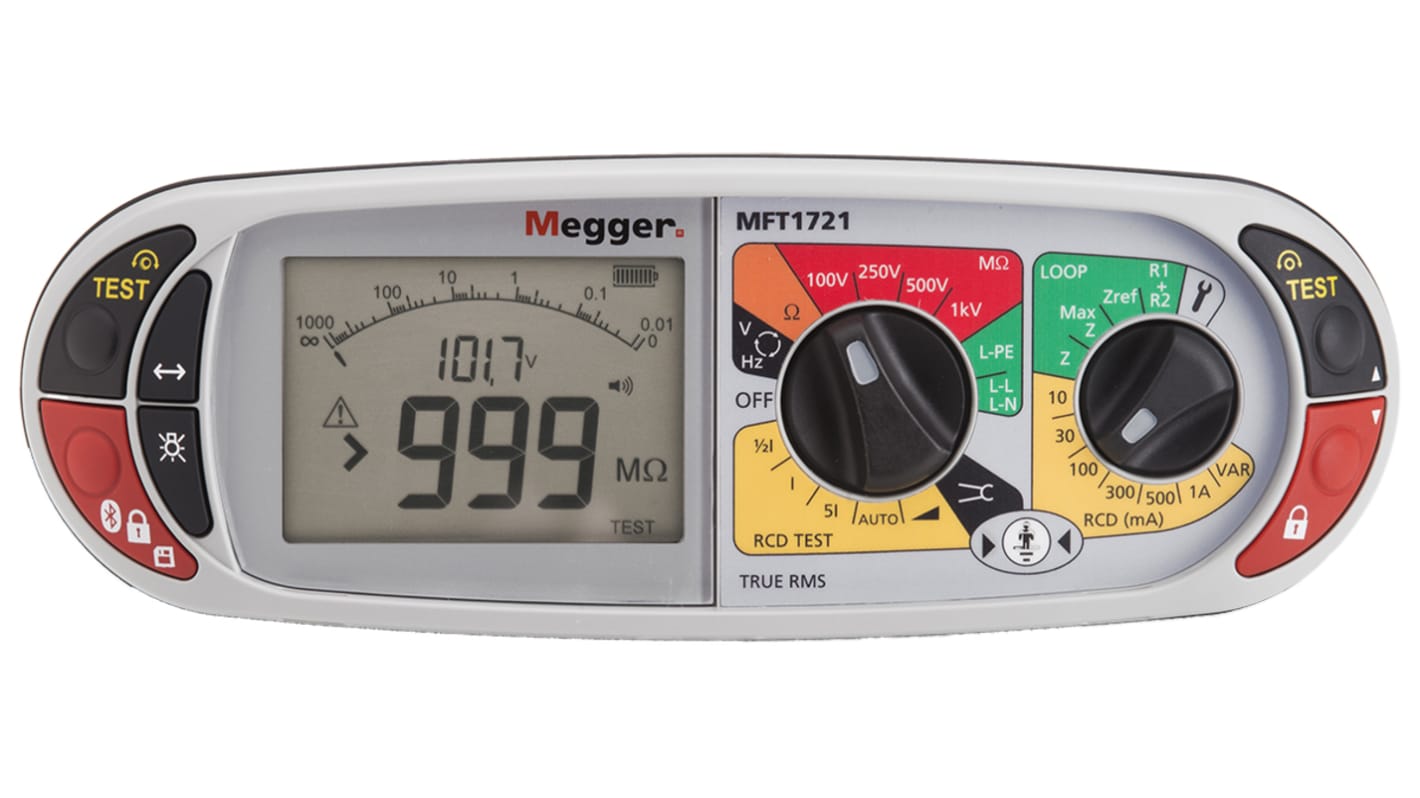

Megger MFT1721 Multifunction Tester, 100V , Earth Resistance Measurement With Wireless

RS庫存編號:: 117-6027
製造零件編號:: 1008-123
製造商:: Megger

Megger MFT1721 Multifunction Tester, 100V , Earth Resistance Measurement With Wireless

1 / 7

Price 个**

HK$22,607.31

1 在3 工作日內發貨 (海外庫存)*

7 在3 工作日內發貨 (海外庫存)

* 交貨日期可能會根據您選擇的數量和交貨地址而變更。

訂單金額滿 HK$250.00 即可享受免費送貨服務

即時庫存查詢

單位	每單位
1 +	HK$22,607.31

** 參考價格

RS庫存編號:: 117-6027
製造零件編號:: 1008-123
製造商:: Megger

MFT 1721 Datasheet

Megger Multifunction Tester, Battery-Operated, Backlit Display - MFT1701 Series - 1008-123

Stay on top of your electrical certification tasks with this multifunction tester from Megger. It's got everything you need to check commercial, industrial and residential low-voltage installations, making it a must-have for electricians. This device comes with everything you need to get to testing in a snap, including a three-wire lead set with prods and clips. You also get a neck strap to keep your kit on hand when you're moving around a job site. As this tool is electromagnetically compatible, there's little chance of it interfering with nearby electronic devices.

The MFT1721 is part of the MFT1701 series from Megger which tests low voltage electrical installations to BS7671. Providing all the tests required to complete the necessary electrical certification for industrial, commercial, and domestic fixed wiring installations. The unique design allows it to be operated while mounted on the floor, a ladder-shelf, platform, and held or hung around the neck.

The MFT1721 includes full input protection and safety warnings when a hazardous voltage is present. If live voltages exist on a circuit during insulation or continuity testing, the voltage is displayed on the screen. If this voltage exceeds a safe level, further testing is inhibited, and a warning beep sounds.

Features & Benefits

• IP54 rating means it's protected against limited amounts of dust and water sprays
• Backlit display offers easy-to-read test results
• Provides warnings in the event of a hazardous voltage for increased safety
• Colour-coded controls reduce the risk of using the incorrect function

• Simple colour-coded test selection
• Dual TEST and LOCK buttons, easy to use left or right handed
• Two and three wire non-trip loop testing for RCD protected circuits
• Type-B RCD and 3 phase RCD testing for industrial applications with no Earth
• 3-terminal earth test and stake less testing for electrode resistance measurement
• EN61010 CAT IV safety rating
• Fully compliant with IEC 60364, VDE 0100 & BS7671
• Durable IP54 case
• Lightweight, compact design
Onsite Features
• Bluetooth downloading
• Onsite Software
• Memory option
• Rechargeable cells
• 200 mA test with option of 15 mA
• 3 pole earth test
• Complete certificates on-site as you go or stores the data until you get home

Applications

• Construction sites
• Public infrastructure
• Electrical engineering
• Power utilities

Does this multifunction tester start automatically?

Yes, the device starts your selected test automatically. As there's no need to press a button, your hands are free to hold your test probes.

Software Package - Basic FormFiller Certification

• Simple operational interface
• Storage of completed forms with retrieval by certificate type or client
• PDF export facility for safe and simple distribution
• Multi-page Schedules for testing larger installations
• Drop down fields to speed up certificate completion

Operators can access and download for free the software package from Megger via the web site. Offering users, a quick and simple solution to create and store standard IET certification forms and PAT certificates. Suitable for use on Windows® platforms running JAVA 8. FormFiller provides a simple, intuitive form completion tool, allowing professional printed certificates and documentation to be produced with negligible software skills. All certificates and forms can be stored within the application or exported in PDF form.

FAQ
What other options are available in this series?

MFT1711 (RS 117-6026) - Tester, three wire lead set, mains test lead, 12-month calibration certificate, warranty upgradeable to 3 years & moulded case.

MFT1731 (RS 117-6028)- Tester, three wire lead set, mains test lead, switched probe, internally rechargeable batteries, and charger, 12-month calibration certificate, warranty upgradeable to 3 years & soft pouch.

Attribute	Value
Loop Impedance Test Type	2 Wire, 3 Wire
Automatic RCD Test	Yes
RCD Ramp Test	Yes
Model Number p	MFT1721
Non-Tripping	Yes
Insulation Test Voltage	100 V, 250 V, 500 V, 1000V
Maximum Voltage Measurement	600V
Test Type	Continuity
Earth Resistance Measurement	Yes
Downloadable Data	Yes
Interface Type	Wireless
Continuity Test Current	200mA
RCD Test Type	A, AC, B, S
Test Standards	EC 61010-1:2010, IEC 61010-031:2008, IEC 61010-30:2010, IEC 61557:2007
IP Rating	IP54
Weight	1 (with Battery; Excluding Case)kg
Maximum Continuity Resistance	99.9kΩ
Maximum Operating Temperature	+55°C
Operating Temperature Range	-10 → +55 °C
Minimum Operating Temperature	-10°C
Height	150mm
Plug Type	BS 1363, LT 300-EN-BS
Safety Category Level	CAT III, CAT IV
Safety Category	CAT III 600 V, CAT IV 300 V
Display Type	LCD
Length	85mm
Power Source	Battery
Width	235mm
Voltage Measurement Range	10 → 600V
Safety Category Voltage	300 V, 600 V
Dimensions	85 x 235 x 150mm
Continuity Range	0.01 → 99.9 kΩ
Battery Type	AA Alkaline
Minimum Continuity Resistance	0.01Ω
