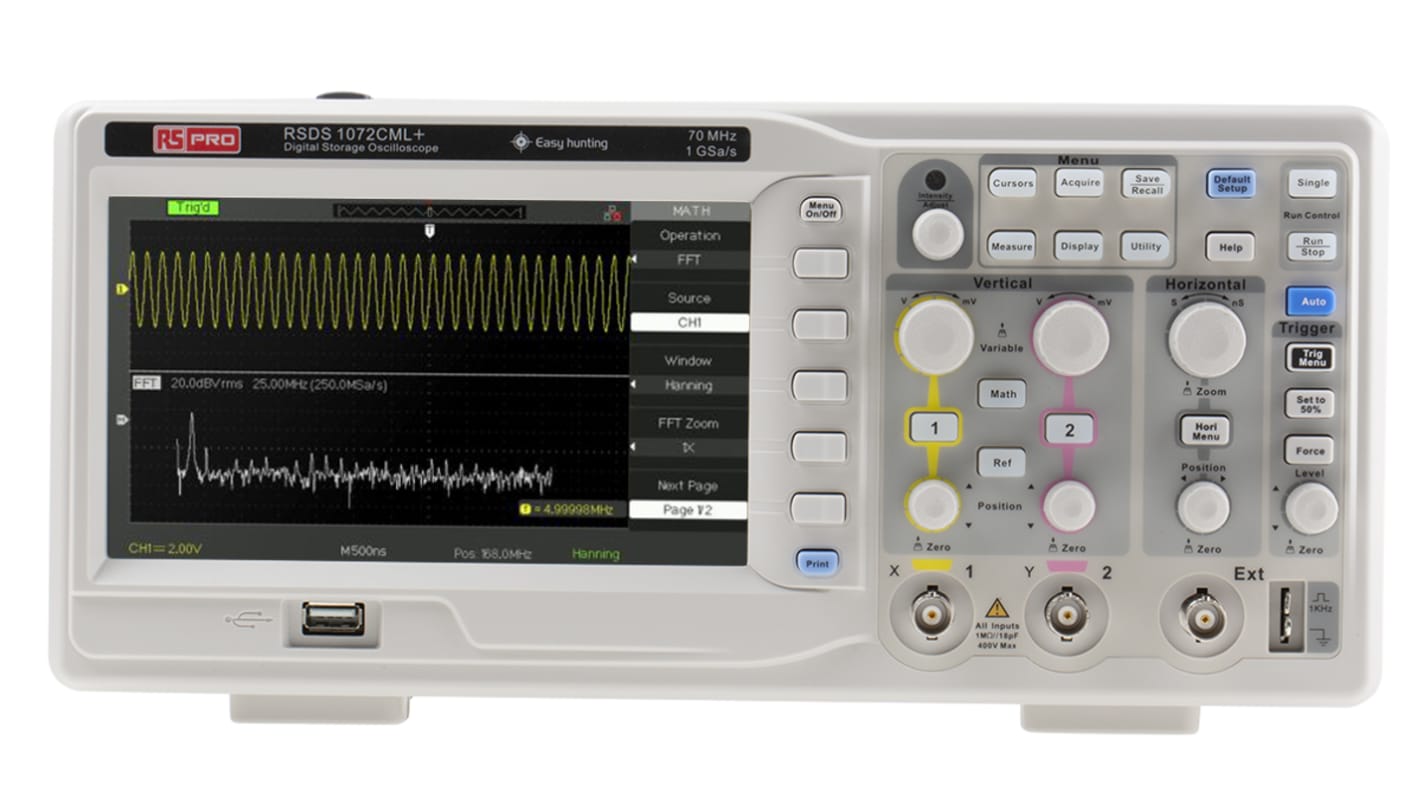

RS PRO RSDS1072CML+, 70MHz Bench Oscilloscope, 2 Analogue Channels

查看所有Oscilloscopes

小計（1 件）*

HK$4,509.20

Add to Basket
選擇或輸入數量
有庫存
  • 52 件準備從其他地點送貨
  • 加上 20 件從 2026年1月19日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$4,509.20

* 參考價格

RS庫存編號:
123-6436
製造商:
RS PRO
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

RS PRO

Bandwidth

70MHz

Number of Analogue Channels

2

Oscilloscope Type

Bench

Interface

RS232, USB

Oscilloscope Form

Digital Storage

Sample Rate Random

1 Gsps

Screen Size

7in

Record Length

2M points

Maximum Vertical Sensitivity

10V/div

Weight

2.5kg

Safety Category

CAT I 400 V, CAT II 400V

Vertical Resolution

8 bit

Maximum Time Base

50s/div

Minimum Time Base

5ns/div

Digital/Analogue

Digital

Minimum Vertical Sensitivity

2mV/div

Dimensions

323.1 x 135.6 x 157mm

Display Type

TFT LCD

Rise Time

5ns

Power Source

Mains

COO (Country of Origin):
CN

RS PRO RSDS1000CML+/DL+ Series Digital Storage Oscilloscopes (DSO)


RS PRO RSDS1000CML+/DL+ Series is a dual-channel universal digital oscilloscope available in 50 MHz, 70 MHz, 100 MHz and 150 MHz bandwidth models.


Options available:





All models have a 7 inch (177.8 mm) TFT LCD (800 x 480) screen which provides the space for better seeing and analysing waveform details. The RSDS1000CML+ models include a 2 Mpts memory depth which helps to ensure accurate waveform resolution and to capture longer signal lengths.
Along with a 1 GSa/s sampling rate, the SDS1000CML+ supports 32 parameters and common mathematical operations to speed up complex and/or repetitive measurements. The RSDS1000DL+ model has 32 Kpts memory depth and 500 MSa/s sampling rate.

Features and Benefits


  • Choice of 50 MHz,150 MHz, 100 MHz and 70 MHz bandwidth models

  • Real-time sampling rate up to 1 GSa/s (depending on choice of model), equivalent-time sampling rate up to 50 GSa/s

  • Memory depth to maximum 2 Mpts (depending on choice of model)

  • Trigger types Edge, Pulse, Video, Slope, Alternate

  • Waveform math functions+, -, *, /, FFT

  • 6 digit frequency counter

  • Supports multi-language display and embedded online help

  • Screensaver from 1 minute to 5 hours

  • Digital filter and waveform recorder function

  • Shortcut storage function key

  • 7 inch TFT LCD display with 800 x 480 resolution

  • Multiple interfaces USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail

  • Dimensions 323.1 x 135.6 x 157 mm

  • Weight 2.5 kg

Oscilloscopes Accessories


123-6471 - black soft carrying case

Typical Applications


Digital oscilloscopes are a complex and multi-functional electronic laboratory instrument used to capture, process, display and analyse the waveform and bandwidth of electronic signals. DSO versions have a memory to store waveforms and display them over a period of time. Oscilloscopes are used in a wide range of industries e.g.

  • Educational laboratories

  • Electronics troubleshooting and measurement

  • Embedded electronics

  • Mixed-signal and video designing

  • Automotive electronics

Why RS PRO?


RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Supplied with

Passive probe 1:1/10:1 (x2), USB cable, quick start guide, quality certificate, power cord, CD (includes user manual and EasyScopeX software)
