Rohde & Schwarz RTM3004 RTM3000 Series, 100MHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital Channels

查看所有Oscilloscopes

小計（1 件）*

HK$70,753.00

Add to Basket
選擇或輸入數量
暂时缺货
  • 在 2026年1月14日 发货
**需要更多产品？**输入您需要的数量，点击“查看送货日期”，查看库存和送货信息。
單位
每單位
1 +HK$70,753.00

* 參考價格

RS庫存編號:
174-2836
Distrelec 貨號:
301-01-721
製造零件編號:
RTM3K-04M
製造商:
Rohde & Schwarz
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Rohde & Schwarz

Bandwidth

100MHz

Number of Analogue Channels

4

Number of Digital Channels

16

Oscilloscope Type

Bench

Interface

CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB

Oscilloscope Form

Mixed Signal

Sample Rate Random

2.5 Gsps, 5 Gsps

Screen Size

256.04mm

Series

RTM3000

Display Type

Capacitive Touch Display

Rise Time

3.5ns

Minimum Time Base

0.5ns/div

Safety Category

CAT III 1000V

Maximum Time Base

500s/div

Vertical Resolution

10 bit, 16 bit

Dimensions

390 x 152 x 220mm

Digital/Analogue

Digital

Maximum Vertical Sensitivity

10V/div

Power Source

Mains

Plug Type

Type A - North American/Japanese 2-blade

Minimum Vertical Sensitivity

0.5mV/div

Weight

3.3kg

COO (Country of Origin):
CZ

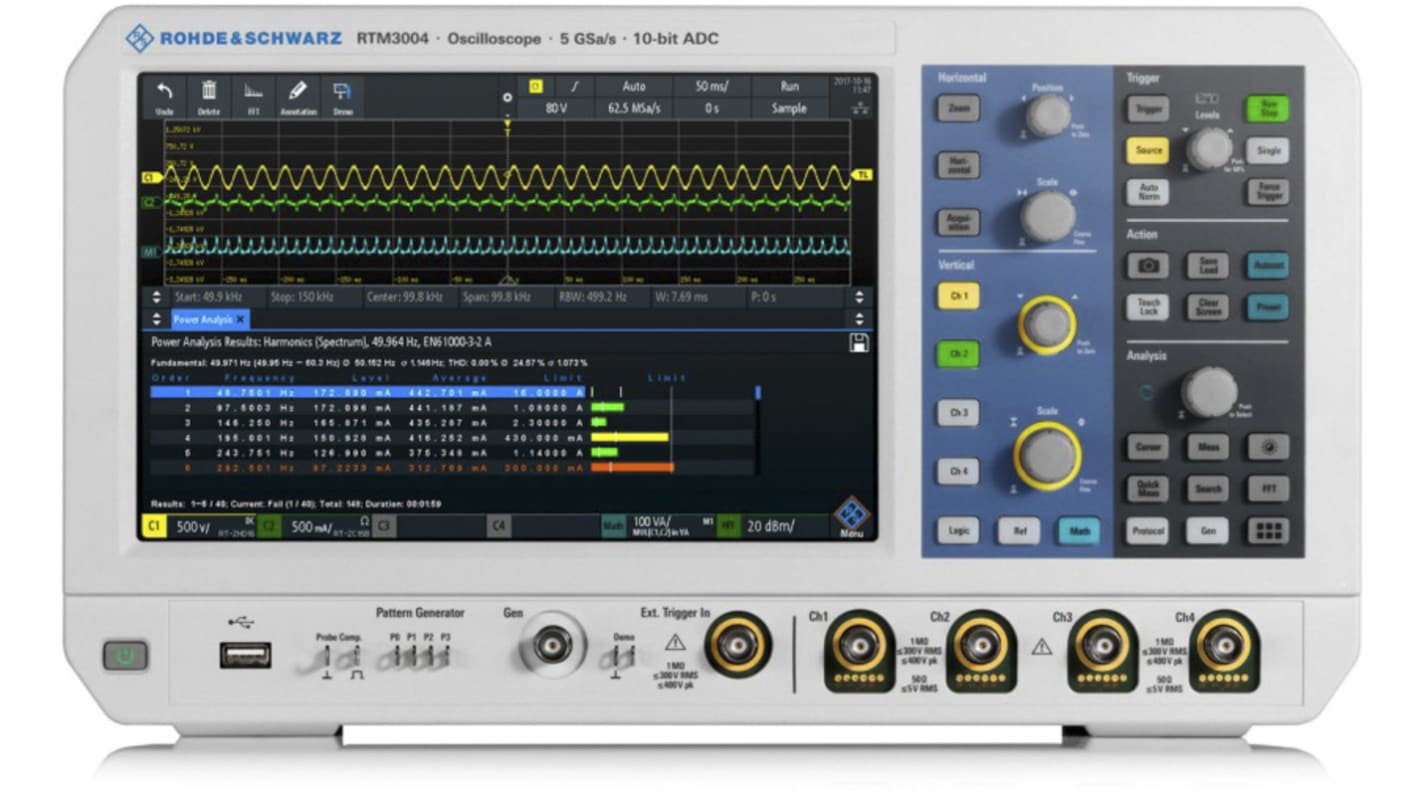

Rohde & Schwarz RTM3000 Series RTM3004 Oscilloscope


The Rohde & Schwarz RTM3000 series digital oscilloscope is featured with high vertical sensitivity and can perform multiple functions. It allows a bandwidth of 100MHz, memory depth up to 40M sample and sampling rate up to 5GS/s. It has a 10 bit analogue to digital converter that offers sharper waveforms with more signal details. This oscilloscope has a large capacitive touch display of 10.1in with a high resolution of 1280 x 800 pixels. It has four analogue channels and performs multiple functions like as logical and protocol analyser, waveform and pattern generator for quick and efficient analysis. This oscilloscope also acts as digital voltmeter for simultaneous and precise measurements. This instrument is an ideal choice for the power signal details up to 10 bit resolution.

Features and Benefits


• Allows multiple functions with software licence such as bandwidth upgrade and serial bus analysis
• Includes probe interface suitable for all Rohde & Schwarz probes
• Touchscreen display with gesture support like smartphones
• Built-in logical analyser

Applications


• Educational institutes
• Used by service technicians
• R&D troubleshooting
• Production testing
