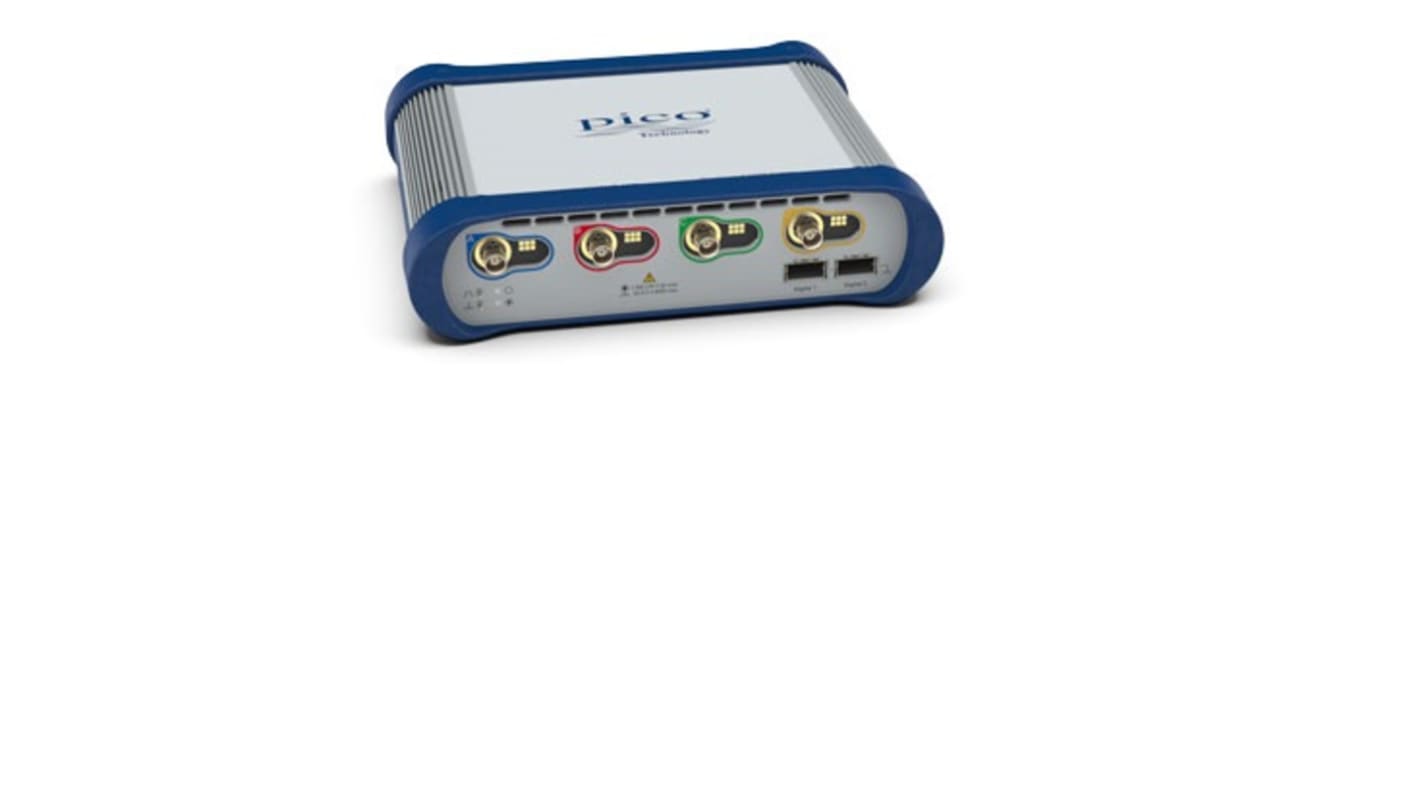

PicoScope 6000E Series, 750 MHz PC Based Oscilloscope 4-Channel

RS庫存編號:: 222-2083
製造零件編號:: PicoScope 6405E
製造商:: Pico Technology

PicoScope 6000E Series, 750 MHz PC Based Oscilloscope 4-Channel

查看所有Oscilloscopes

小計（1 件）*

HK$91,767.50

訂單超過 HK$250.00 免費送貨

有庫存

1 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$91,767.50

* 參考價格

RS庫存編號:: 222-2083
製造零件編號:: PicoScope 6405E
製造商:: Pico Technology

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Pico Technology
	Product Type	Oscilloscope
	Bandwidth	750MHz
	Number of Channels	4
	Model Number	PicoScope 6405E
	Oscilloscope Type	PC Based
	Interface Type	USB
	Series	PicoScope 6000E
	Standards/Approvals	No
	Width	245mm
	Height	192mm
	Minimum Time Base	20ns/div
	Power Source	USB
	Vertical Resolution	8 Bit
	Minimum Vertical Sensitivity	2mV/div
	Maximum Time Base	5000s/div
	Rise Time	850ps
	Maximum Vertical Sensitivity	4V/div

	選取全部
	品牌 Pico Technology
	Product Type Oscilloscope
	Bandwidth 750MHz
	Number of Channels 4
	Model Number PicoScope 6405E
	Oscilloscope Type PC Based
	Interface Type USB
	Series PicoScope 6000E
	Standards/Approvals No
	Width 245mm
	Height 192mm
	Minimum Time Base 20ns/div
	Power Source USB
	Vertical Resolution 8 Bit
	Minimum Vertical Sensitivity 2mV/div
	Maximum Time Base 5000s/div
	Rise Time 850ps
	Maximum Vertical Sensitivity 4V/div

COO (Country of Origin):: GB

PicoScope 6000E Series Oscilloscope, 750MHz Bandwidth, 4 Channels - PicoScope 6405E

This oscilloscope is a PC‑connected instrument that captures and displays electrical signals for analysis. It connects via USB and draws power from the same interface, making it convenient for bench or portable setups. The instrument provides a broad range of timebase settings and straightforward resolution for waveform inspection in development and diagnostic workflows.

Features and Benefits:

• 750MHz bandwidth delivers high-frequency signal capture
• 850ps rise time resolves fast edge transitions
• 2mV/div sensitivity enables low-amplitude measurement
• 8-bit vertical resolution balances detail and data size
• 5000s/div maximum timebase supports very long captures

Applications

• Suitable for debugging high-speed digital interfaces
• Used for transient capture in power‑electronics testing
• Ideal for signal integrity analysis in prototype validation
• Can be used for long-duration monitoring of slow signals

How is the instrument powered during use?

It operates from a USB connection which supplies both data and power.

What Interface does it use to communicate with a host PC?

The device uses a USB Interface for waveform transfer and control.

What channel count is available for simultaneous measurements?

It provides four independent input channels for multi-signal capture.

What are the device physical heights and footprint considerations?

The height is 61.5 mm and the length and width are 245 mm and 192 mm respectively.
