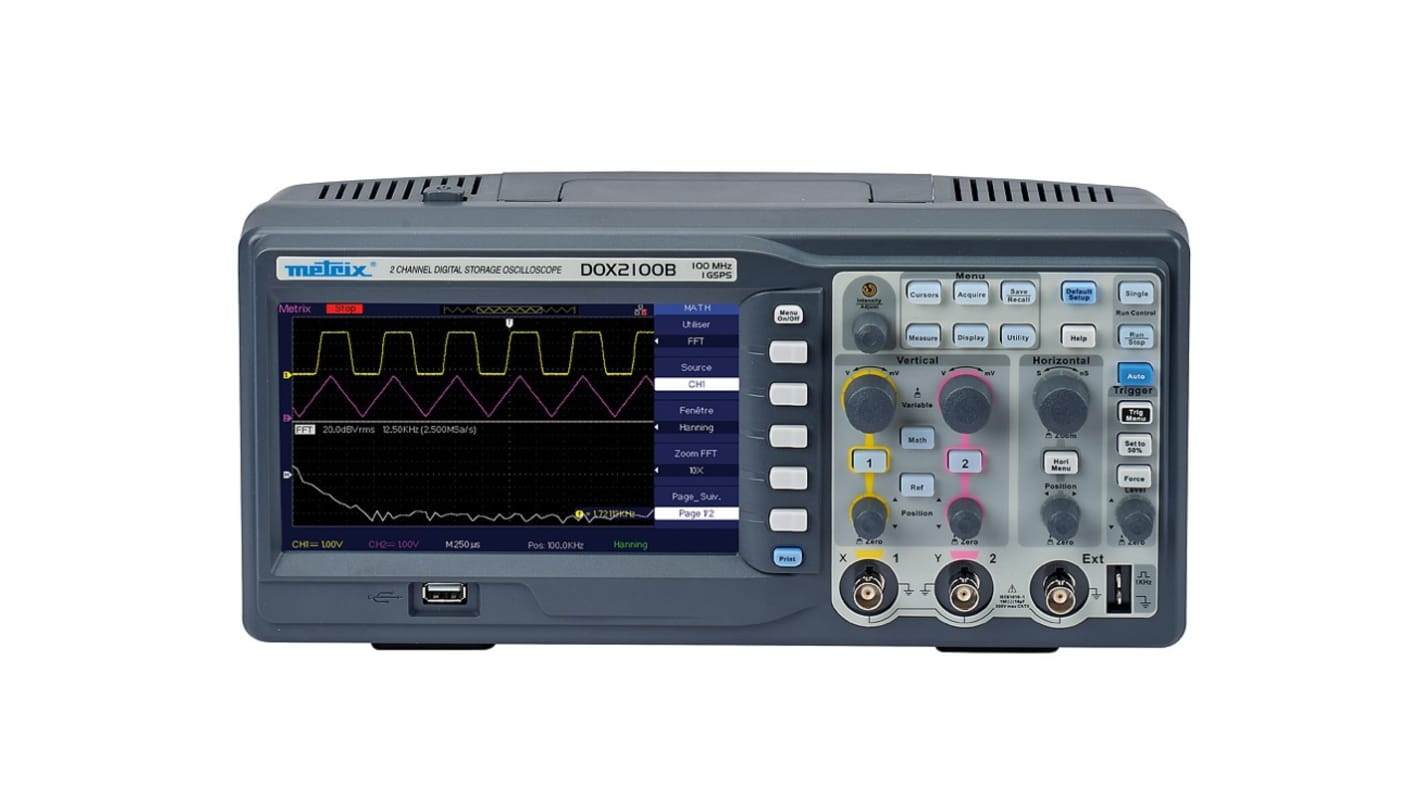

The Metrix DOX2100B oscilloscopes is very easy to use, compact and come in a housing suitable for the laboratory, with a limited size and shallow depth. It has two 100 MHz channels and 7 inch WVGA colour LCD display with 800x480 resolution. The acquisition, like the analysis, is done on 3 acquisition levels, in real time or equivalent time. The acquisition memory depth is 32 kpoint, and an additional memory capacity on a USB key to optimize your analyses. The vertical sensitivity is 2 mV / div. at 10 V / div. in 12 calibres, horizontal from 5 ns to 50 s / div. Advanced functions are available: simple MATH + / - / x / ÷, and real time FFT function with simultaneous display of traces.
Practical the PASS / FAIL function USB device communication and ETHERNET RJ45 for PC communication is supported Electrical safety according to IEC 61010-1 / 300 V CAT II
