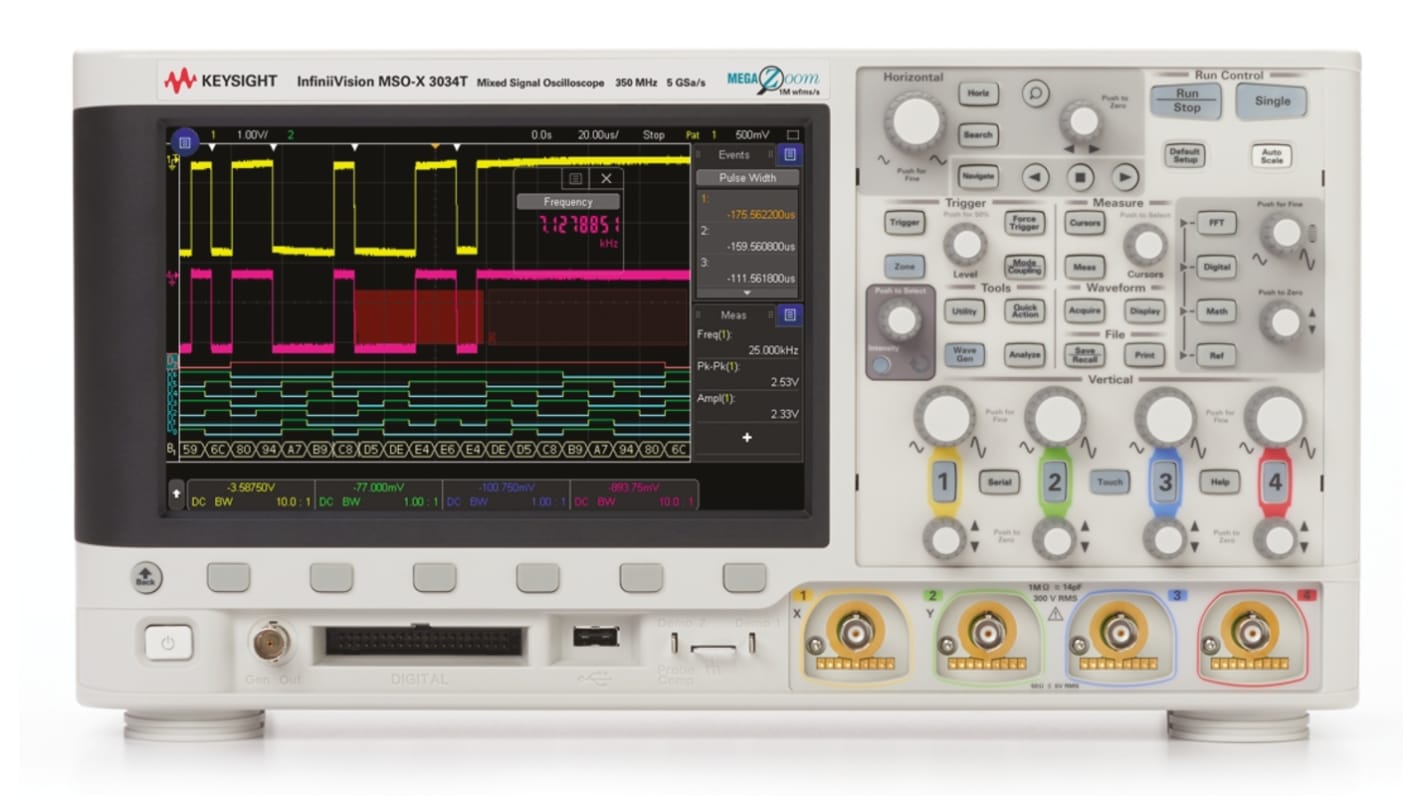

Keysight Technologies MSOX3034T InfiniiVision 3000T X Series Digital Bench Oscilloscope, 4 Analogue Channels, 350MHz,
- RS庫存編號:
- 833-5159
- 製造零件編號:
- MSOX3034T
- 製造商:
- Keysight Technologies
- RS庫存編號:
- 833-5159
- 製造零件編號:
- MSOX3034T
- 製造商:
- Keysight Technologies
法例與合規
豁免
- COO (Country of Origin):
- MY
產品詳細資訊
Keysight Technologies Oscilloscope, Mixed Signal Type, 350MHz Bandwidth - InfiniiVision 3000T X Series - MSOX3034T
Get a boost in your diagnostic productivity with this oscilloscope from Keysight Technologies. As it features an 8.5in capacitive touchscreen with zone touch triggering, it enables intuitive navigation and allows you to quickly isolate a signal by simply drawing a box around it. It's a versatile piece of kit as it has 16 digital channels and 4 analogue channels, allowing you to analyse and compare many different signals at the same time. A bandwidth of 350MHz means it can handle low and high-frequency signals without a hitch.
Features & Benefits
Waveform update rate of over one million waveforms per second for up-to-date results
Light weight of 4kg to place minimal strain on your setup
Mains-powered for convenient use in most workspaces
Compact dimensions of 204 (H) x 381 (W) x 142mm (D) to take up minimal space
Light weight of 4kg to place minimal strain on your setup
Mains-powered for convenient use in most workspaces
Compact dimensions of 204 (H) x 381 (W) x 142mm (D) to take up minimal space
Applications
Product design and development
Electrical engineering
Manufacturing
Automotive repair
Electrical engineering
Manufacturing
Automotive repair
What temperatures can I use this device in?
It has a wide operating temperature range between 0°C and +50°C, so it's suitable for use in demanding environments.
規格
Attribute | Value |
---|---|
Bandwidth | 350MHz |
Digital/Analogue | Digital |
Number of Digital Channels | 16 |
Number of Analogue Channels | 4 |
Oscilloscope Form | Mixed Signal |
Oscilloscope Type | Bench |
Series | InfiniiVision 3000T X |
Interface | CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB |
Power Source | Mains |
Memory Depth | 4Mpts |
Display Type | WVGA |
Minimum Vertical Sensitivity | 1mV/div |
Maximum Vertical Sensitivity | 5V/div |
Minimum Time Base | 2ns/div |
Screen Size | 8.5in |
Sample Rate Random | 2 G samples/s, 4 G samples/s |
Weight | 3.9kg |
Record Length | 1 M points/ch, 2M points/ch |
Dimensions | 381 x 142 x 204mm |
Input Impedance | 1 (Analogue) MΩ, 100 (Digital) kΩ |
Vertical Resolution | 8 bit |
Maximum Time Base | 50s/div |
Input Capacitance | 8 pF |
Height | 204mm |
Rise Time | 1ns |
Safety Category | CAT I |
